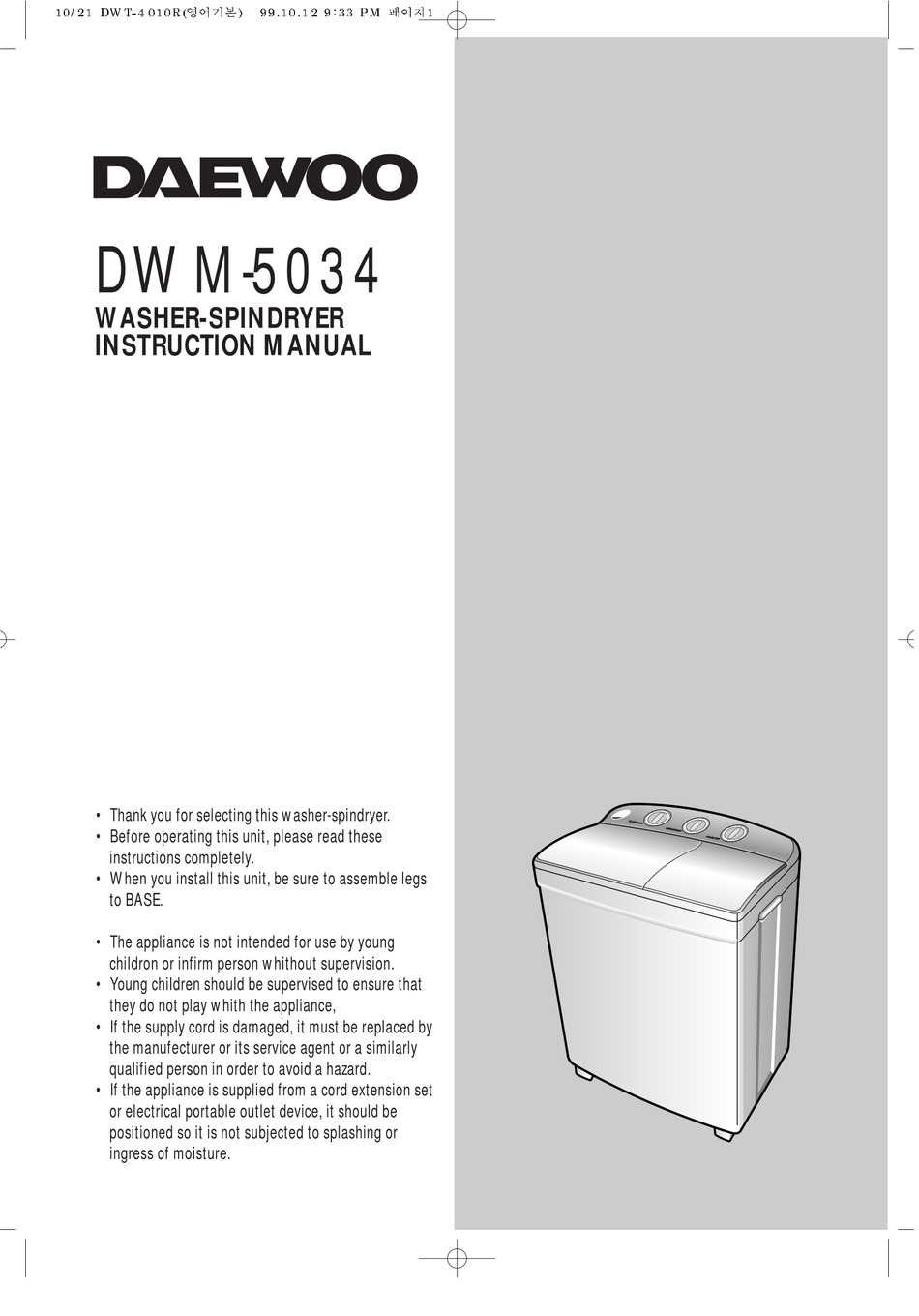

DWM-5034
WASHER-SPINDRYER
INSTRUCTION MANUAL
• Thank you for selecting this washer-spindryer.
• Before operating this unit, please read these
instructions completely.
• When you install this unit, be sure to assemble legs
to BASE.
• The appliance is not intended for use by young
childron or infirm person whithout supervision.
• Young children should be supervised to ensure that
they do not play whith the appliance,
• If the supply cord is damaged, it must be replaced by
the manufecturer or its service agent or a similarly
qualified person in order to avoid a hazard.
• If the appliance is supplied from a cord extension set
or electrical portable outlet device, it should be
positioned so it is not subjected to splashing or
ingress of moisture.
Advertisement
Table of Contents
Related Manuals for Daewoo DWM-5034
Summary of Contents for Daewoo DWM-5034
- Page 1 DWM-5034 WASHER-SPINDRYER INSTRUCTION MANUAL • Thank you for selecting this washer-spindryer. • Before operating this unit, please read these instructions completely. • When you install this unit, be sure to assemble legs to BASE. • The appliance is not intended for use by young childron or infirm person whithout supervision.
-
Page 2: Parts Identification
PARTS IDENTIFICATION •SPINDRYER LID •TUB •INNER LID •OVERFLOW FILTER •SPINDRYER DRUM •WASHER LID •GROUND WIRE •DRAIN STRAINER (OPTION) •POWER CORD •PULSATOR •BASE ACCESSORY LEG (4EA) SAFETY COVER DRAIN HOSE NON PUMP PUMP Control panel WASH TIMER SPIN TIMER VALVE SELECTOR ! Water Inlet... -
Page 3: Installation
INSTALLATION Electric Connection • This unit is designed to operate from an adequate supply mentioned at the rating label sticked to the rear of it. Caution: If the power cord is damaged, it should be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required. -
Page 4: How To Wash
Connection of Hoses • Attach the water intake hose to the water inlet located at the left-hand side of the control panel. Press fit the other end of the hose to either a hot or cold water tap as required. Caution: This unit is made of poly propylene, use water below 50°C... -
Page 5: Overflow Rinse
HOW TO RINSE Overflow Rinse ! Set the drain selector to the “WASH · RINSE” position. @ Turn the water tap on. # When the rinsing water becomes clear, turn off the water tap. $ Set the drain selector to the “DRAIN”... -
Page 6: Laundry Guide
LAUNDRY GUIDE Water Level Degree of Water Wash Spin Type of Fabric Wash load (Volume) Soiling Temperature Time Time High Heavy Hot 50°C Max Full (App. 49\) Normal Warm 40°C Cotton and 15 min. -
Page 7: Points To Remember
Drain Strainer • Use a screwdriver to loosen the screw of the pulsator, and remove the pulsator. • Remove the drain strainer from the bottom of the tub using a sharp tool such as a driver. •... -
Page 8: Specifications
SPECIFICATIONS Full name of appliance Electric clothes washing machine Intended use Household Type of Appliance Twin-tub Power source Refer to specification LABEL Dimensions (unit:mm) 802¡¿ 440¡¿ 937(W¡¿ D¡¿ H) Appliance Weight 22.5kg (NON PUMP), 23.5kg (PUMP) Washing: 1 hour operation Rated operating time Spinning: 15min.
