Summary of Contents for Daewoo DTY-25G1
-

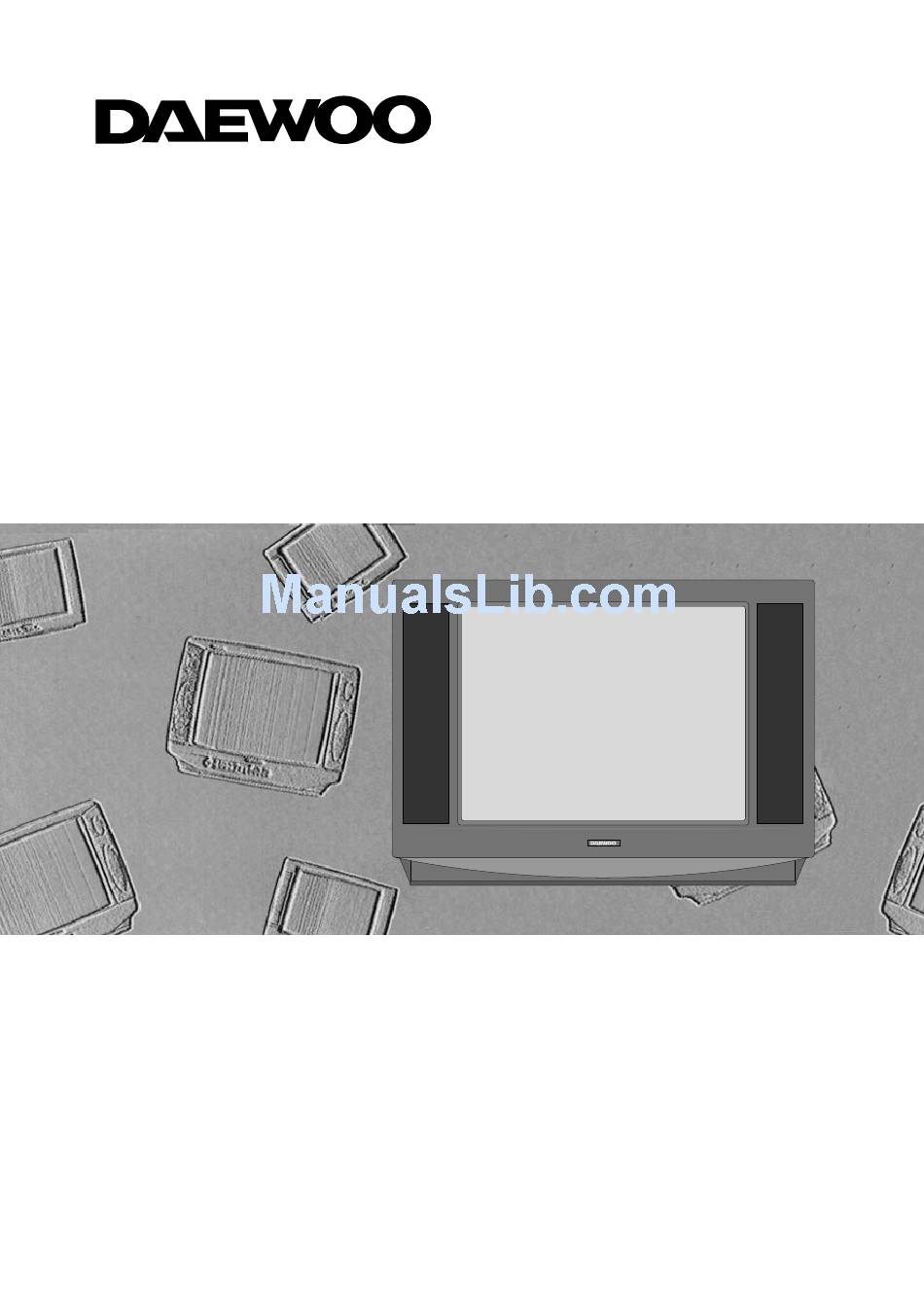

Page 1: Instruction Manual
Colour Television DTY-25G1 DTY-29G1 Instruction Manual... -
Page 2: Important Safeguards
Important Safeguards For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions, and instructions on the appliance, or the one described in the operating instructions and adhere to them. Power Sources - This set should be operated only Object and Liquid Entry - Never push objects of from the type of power source indicated on the... - Page 3 - Never place the set in a confined space such as a - Never cover the slots and openings with a cloth bookcase, or built-in cabinet, unless proper ven-tila- or other materials. tion is provided. - Never block the slots and openings by placing the set on a bed, sofa, rug or other similar sur- Power-Cord Protection - Route the power cord so face.
- Page 4 SERVICE Damage Requiring Service - Unplug the set extensive work by a qualified technician to from the wall outlet and refer servicing to quali- restore the set to normal operation. fied service personnel under the following condi- tions: - When the power cord or plug is damaged or frayed.
-
Page 5: Table Of Contents
CONTENTS * Important safeguards * Identity of features on Local and Remote Control * Installation After moving the set Inserting Batteries into the Remote Control Unit Aerial connection Mains connection Switching the set on and off Tuning the TV Channels Edit Manual Channel Setting * Daily use... -
Page 6: Identity Of Features On Local And Remote Control
IDENTITY OF FEATURES ON LOCAL AND REMOTE CONTROL LOCAL CONTROL Back Front AUDIO VIDEO VOLUME PROGRAMME SCART AERIAL SCART MAIN VIDEO AUDIO HEAD STAND-BY REMOTE BUTTON DOWN/UP DOWN/UP SOCKET1 TERMINAL SOCKET2 POWER INPUT INPUT PHONE INDICATOR SENSOR BUTTONS BUTTONS BUTTON REMOTE CONTROL TV mode TELETEXT mode... -
Page 7: Installation
INSTALLATION AFTER MOVING THE SET If the used set is moved or placed in a different direction, the MAIN POWER button must be switched off for at least 15 min- utes in order to take out a colour strain on the screen. INSERTING BATTERIES INTO THE REMOTE CONTROL UNIT Press down the battery compartment grip and slide the cover, Insert the batteries supplied(two 1.5v, type AA). -
Page 8: Mains Connection
MAINS CONNECTION Plug the mains cable into the power socket with 240V~, 50Hz. SWITCHING THE SET ON AND OFF Switching On Switch the set on with the MAIN POWER button, ( ). The set will turn on. If not, press either : - PR UP or DOWN button on the front of set - or POWER button or the UP/DOWN buttons or one of the NUMBER buttons 0..9 on the remote controller. -
Page 9: Tuning The Tv Channels
TUNING THE TV CHANNELS MAIN MENU Press the MENU button to call up the MAIN MENU. MAIN MENU The MAIN MENU is consist of 6 sub-menus: PICTURE SOUND PICTURE, SOUND, TIMER, LANGUAGE, PRESET, EDIT TIMER LANGUAGE menu. PRESET EDIT LANGUAGE SELECTION LANGUAGE Select a LANGUAGE menu at the MAIN MENU by placing the ENGLISH... -
Page 10: Manual Channel Setting
MANUAL CHANNEL SETTING You can also call up the PRESET menu at the MAIN MENU. Press the NUMBER buttons 0..9 or UP/DOWN buttons to PRESET select a programme number you want. The screen will change according to the selected programme number. -
Page 11: Daily Use
DAILY USE SELECTING A PROGRAMME NUMBER The set has a total of 70 programme numbers, 0..69. The NUMBER buttons 0..9 are used for direct programme selection. In order to select two-digit programm, press the second numbered button within two seconds. Switch through the programme number step by step with the UP/DOWN buttons. -
Page 12: Timer
TIMER In the MAIN MENU, Select TIMER menu. SETTING THE CLOCK Press the OK button on the CLOCK line. TIMER Set the hours and minutes with the NUMBER buttons 0..9 Press CLOCK 12:20 the OK button to complete. The clock will start. WAKE UP TIME --:-- Note that if you turn the TV off with MAIN POWER button, the... -
Page 13: Child Lock
CHILD LOCK You can prevent the use of the TV set without the remote con- trol. The set is child-locked after switching off the set by pressing the TIME, MODE, TELETEXT( ), POWER button ( ) in sequence on the remote control within 5 seconds. The child- lock function is indicated by flashing the STAND-BY INDICA- TOR. -
Page 14: Teletext
TELETEXT SWITCHING TELETEXT ON/OFF Press the TELETEXT button ( ). The index page viewed last will appear. Press the TELETEXT button to return to the TV mode. COLOUR BUTTONS IN TOP/FLOF TELETEXT A red, green, yellow and blue field are shown at the bottom of the screen. - Page 15 WATCHING TELEVISION DURING TELETEXT MODE Some pages are continually update, for example, stock market reports, sports announcements, and the latest news. If you want to watch television and stay informed at the same time, press CANCEL ( ) button. The regular programme is still visible and the teletext symbol ) appears at the top of the screen.
-
Page 16: Connecting The External Equipment
CONNECTING THE EXTERNAL EQUIPMENT HEAD PHONE JACK Insert the headphone plug(ø 3.5mm) into the headphone socket. The sound from the speaker will be cut off. TV AND AV( Use the AV button ( ) on the remote control or on the front of the set to select one of the three options. -
Page 17: Troubleshooting
TROUBLESHOOTING Sometimes some performance problems can be easily solved by checking seemingly apparent but often overlooked possibilities. Before asking for service, to check these items could save your time and money. SYMPTOM CHECK No picture or sound. •Check the TV set is plugged in. •Check the volume, Brightness and Contrast controls are set to the minimum positions. -
Page 18: Specification
Back AV2 : Input SCRAT socket R-28(Requires two 1.5V penlight batteries with AA size Remote Control Unit type) DTY-25G1 : 728 x 532 x 459 mm Dimension (W x H x D) DTY-29G1 : 807 x 606 x 500 mm DTY-25G1 : 33Kg approx. - Page 19 MEMO...
- Page 20 P/N:48586775E10A-R0...
