Parker "N" Series User Manual

Parker "N" Series User Manual

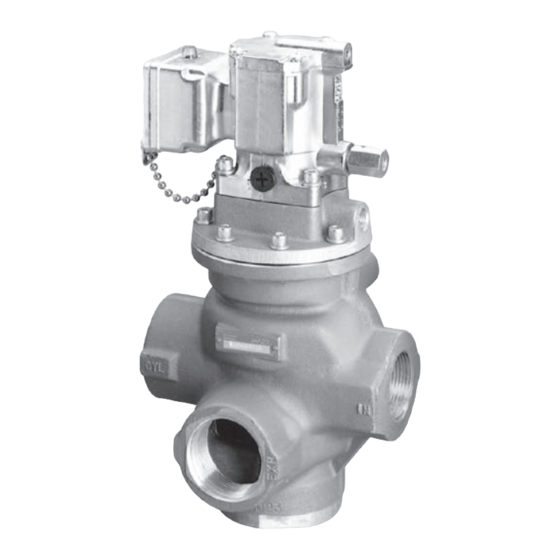

High speed inline poppet valves 2 & 3-way

Advertisement

Basic Valve Functions .............................................. M2
"N" Series Basic Features ........................................ M3
Common Part Numbers ...................................... M4-M5
Model Number Index .......................................... M6-M7
Pilot Supply .................................................... M8-M9
Electrical Connections ....................................... M10
Solenoid Characteristics .................................... M11
Solenoid & Parts Lists ................................ M12-M14
Coil Information .................................................. M15
"N" Series
High Speed
Inline Poppet Valves
2 & 3-Way
Section M
www.parker.com/pneu/n
Time Delay Modules ............................................... M16
Remote Operated ....................................... M21-M22
BOLD ITEMS ARE MOST POPULAR.
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the "N" Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Parker "N" Series

  • Page 1: Table Of Contents

    Model Number Index .......... M6-M7 Technical Information Pilot Supply ............ M8-M9 Electrical Connections ........M10 Solenoid Characteristics ........M11 Solenoid & Parts Lists ........ M12-M14 BOLD ITEMS ARE MOST POPULAR. Coil Information ..........M15 Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 2: Basic Valve Functions

    Note: For 2-Way, Normally Open, Exhaust Port is Plugged. For Information on Options that are no longer available and the Suggested Cross Reference or Kit Info, refer to www.parker.com/pneumatic/classicvalves & Catalog N Series-E/USA Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 3: Specifications

    • Indicator Lights Available Certification / Approval • Approved to be CE Marked (Standard L-Pilot & P-Pilot) • NEMA 4 Option • Hazardous Duty Option 1-1/4" Solenoid Pilot De-Energized Normally Open Pressure Exhaust Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 4 Locking Manual Override, Internal “P” Pilot 125 PSI, Standard Service, Locking Manual Override, Internal “P” Pilot 125 PSI, Standard Service, P-Pilot Junction Box w/ Light, 120VAC. P-Pilot Junction Box w/ Light, 120VAC. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 5: Common Part Numbers

    1-1/2" N324 91 091 N364 91 091 1-1/2" 1-1/2" N384 91 091 1-1/2" 1-1/2" 1/4" NPT Remote Pilot Port with Internal Pilot Return. 1/4" NPT Remote Pilot Port with Internal Pilot Return. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 6: Model Number Index

    Voltage 49 & 53 ONLY. Basic Pilot Ext. LMO JIC NLMO w/Light - 3-Pin Automotive JIC NLMO w/ Light - 4-Pin M12 JIC NLMO w/ Light - 5-Pin Automotive BOLD OPTIONS ARE MOST POPULAR. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 7 1-1/2" Inlet & Cyl – 1-1/2" Exhaust - BSPP * Not available with Valve Function 325. Note: BSPP is to the ISO 228 Standard, and requires an R-BSPT male fitting. BOLD OPTIONS ARE MOST POPULAR. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 8: Technical Information

    External Pilot supply should be used when the main valve needs to operate below the Minimum Operating Pressure or at Vacuum. A Selector function can also be achieved (pressurizing the IN and EXHAUST ports) with an External Pilot Supply. Refer to charts for required external pilot pressure. Parker Hannifin Corporation Pneumatic Division Richland, Michigan...
  • Page 9: Technical Data

    On valves with a small inlet port, use of an upstream surge tank may be required at lower operating pressures to insure an adequate air supply and proper operation. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 10: Electrical Connections

    (Encl. Option N, Wiring Option G) (Encl. Option J, Wiring Option G) 4-PIN MICRO 5-PIN MINI (TOP COVER) (TOP COVER) SOLENOID SOLENOID COIL COIL (-) Common (-) Common (+) Signal (+) Signal Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 11: Solenoid Characteristics

    Class II Div. 1 Coal, Coke, Carbon Black IX (9) Group F Dust Class II Div. 1 Flour, Starch, Grain Dust IX (9) Group G See Article 500 – Hazardous (Classified) Locations, National Electric Code. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 12: Parts List

    * Parts included in Service Kit. K343 001 Plunger (Continuous Duty) Continuous Duty Kit K352 366 Standard Service Kit K352 166 H142 01 Seal K41RB72011 O-Ring (STD. Service) H249 69 O-Ring (Continuous Duty) Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 13 Coil 120V 60Hz / 110V 50Hz K593 035 Coil 240V 60Hz / 220V 50Hz K593 003 Coil 6VDC / 24V 60Hz K593 010 Coil 12VDC K593 014 Coil 24VDC K593 041 Coil 120VDC Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 14: Parts List

    • 11 H142 15 Seal K593 107 Coil 115VDC K322 004 Junction Box Kit • 13 K183 012 Gasket * Coil leads are 19" long. • Parts included in Seal Kit K352 064. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 15: Coil Information

    72" Leads — — K593099 — — — K593098 — — — K593094 — — — K593097 — — — — K593254 — — K593108 — — — K593111 — Voltage Code Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 16: Time Delay Modules

    Kits are suitable for both solenoid and remote operated Removal of Signal to Solenoid. valves. Kits include module, gaskets, screws, and installation instructions. Delay Interval Module Kit Number 0-6 Seconds K705 1001 5-12 Seconds K705 1002 10-30 Seconds K705 1003 Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 17: Dimensions Single Solenoid

    K053 026 K053 218 K41RB72121 K41RB72221 O-Ring K212 001 K212 002 Upper Piston Assy * Parts included in seal kit H136 48 H137 28 Seal H145 10 H136 76 U-Cup (3/8), O-Ring (3/4) Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 18 1/2" Tap 1" Tap K053 064 K053 219 K41RB72121 K41RB72221 O-Ring K212 001 K212 002 Upper Piston Assy * Parts included in seal kit H136 48 H137 28 Seal K41RB72211 H136 76 O-Ring Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 19 Body (N.O.) K053 115 K473 016 Spring K012 003 Adapter 1-1/2" Tap K053 116 K41RB72143 O-Ring K313 029 Upper Piston Assy * Parts included in seal kit H137 52 O-Ring H137 28 Seal Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 20 Body (N.O.) K053 115 K473 016 Spring K012 003 Adapter 1-1/2" Tap K053 116 K41RB72143 O-Ring K313 029 Upper Piston Assy * Parts included in seal kit H137 52 O-Ring H137 28 Seal Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 21 14* K41RB72121 K41RB72221 K41RB72143 O-Ring H136 48 H137 28 H137 52 Seal K123 018 K123 021 K123 024 Cover H145 10 H136 76 H137 28 Seal * Parts included in seal kit Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 22 Adapter H136 48 H137 28 H137 52 Seal K41RB72121 K41RB72221 K41RB72143 O-Ring H135 29 H136 76 H137 28 Seal K323 027 K323 027 Not used Cover * Parts included in seal kit Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics...
  • Page 23 Offer of Sale The items described in this document are hereby offered for sale by Parker Hannifin Corporation, its subsidiaries or its autho- rized distributors. This offer and its acceptance are governed by the provisions stated on the separate page of this document entitled “Offer of Sale”.
  • Page 24 1.4. Distribution: Provide a copy of this safety guide to each person that is responsible for selection, installation, or use of Valves, FRLs or Vacuum products. Do not select, or use Parker valves, FRLs or vacuum products without thoroughly reading and understanding this safety guide as well as the specific Parker publications for the products considered or selected.
  • Page 25 Service Bulletin for the valve or FRL in question for the appropriate practices to service the unit in question. These Service and Installation Instructions are provided with every Parker valve and FRL sold, or are available by calling 1-800-CPARKER, or by accessing the Parker web site at www.parker.com.
  • Page 26 The items described in this document and other documents or descriptions provided by Parker Hannifin Corporation, its subsidiaries and its authorized distributors, are hereby offered for sale at prices to be established by Parker Hannifin Corporation, its subsidiaries and its authorized distributors. This offer and its acceptance by any customer (“Buyer”) shall be governed by all of the following Terms and Conditions.
