ENFORCER SA-025EQ Manual

Delayed egress timer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
 3 Relock modes
 Programmable nuisance
delay timer
 Adjustable pre-delay timer
 Adjustable post-delay timer
 12~24VAC/VDC
IMPORTANT
Users and installers of this product are responsible for ensuring that the installation and configuration of this
product complies with all national, state, and local laws and codes related to locking and egress devices.
SECO-LARM will not be held responsible for the use of this product in violation of any current laws or codes.
NOTE: Products with model numbers that end with "Q" or have a round green "Q" sticker signify RoHS-compliant products.

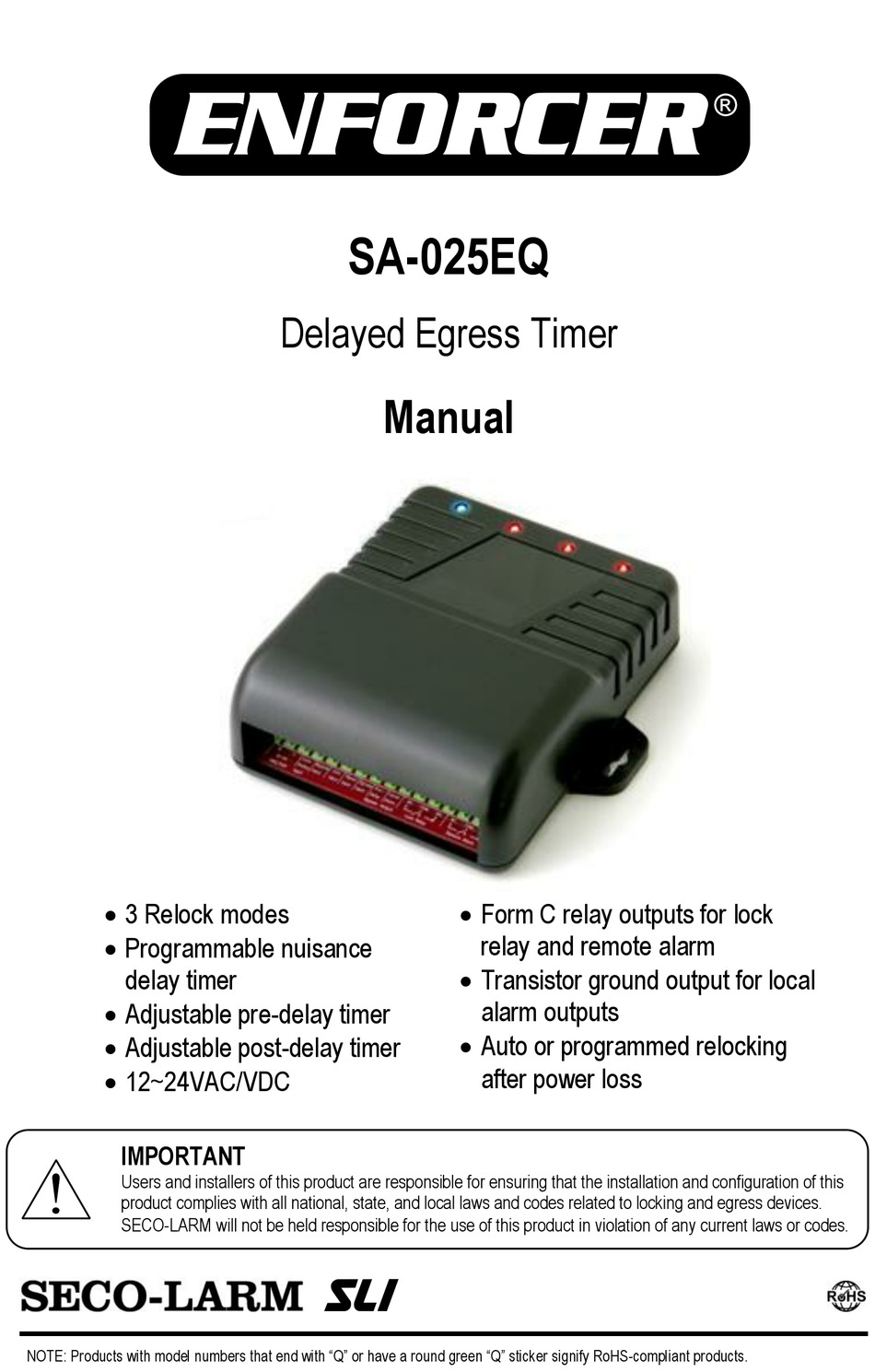

SA-025EQ
Delayed Egress Timer
Manual
 Form C relay outputs for lock
relay and remote alarm
 Transistor ground output for local
alarm outputs
 Auto or programmed relocking
after power loss

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENFORCER SA-025EQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENFORCER ENFORCER SA-025EQ

Summary of Contents for ENFORCER ENFORCER SA-025EQ

  • Page 1 SA-025EQ Delayed Egress Timer Manual  3 Relock modes  Form C relay outputs for lock  Programmable nuisance relay and remote alarm  Transistor ground output for local delay timer  Adjustable pre-delay timer alarm outputs  Auto or programmed relocking ...

  • Page 2: Table Of Contents

    ENFORCER Delayed Egress Timer Table of Contents: Features ............2 Remote Alarm Relay Output ......8 Specifications ..........2 Lock Relay Output ........8 Dimensions............ 3 Local Alarm Output ........8 Overview ............3 Pre-Delay Bypass Input ........ 8 Installation ............. 4 Free Egress Input .........

  • Page 3: Dimensions

    ENFORCER Delayed Egress Timer Dimensions: Housing ” ” 3” (83mm) (68mm) (76mm) ” ” (28mm) (22mm) Timer module only ” (63mm) P.C. board ” (78mm) ” (72mm) P.C. board Mounting holes ” (57mm) Mounting holes Overview: LED 2 (Red): LED 3 (Red): If ON, the lock If ON, the remote alarm relay is energized*...

  • Page 4: Installation

    ENFORCER Delayed Egress Timer Installation: Removing the housing To remove the housing cover from the Push tab SA-025EQ, use a paper clip or a similar inward. object to push one of the two tabs on the back of the unit inward. Mounting If mounting is necessary, secure two screws (not included) through the two...

  • Page 5: Relock Modes

    ENFORCER Delayed Egress Timer IMPORTANT Users and installers of this product are responsible for ensuring that the installation and configuration of this product complies with all national, state, and local laws and codes related to locking and egress devices. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or codes.

  • Page 6: Adjusting The Pre-Delay And Post-Delay

    ENFORCER Delayed Egress Timer Adjusting the Pre-Delay and Post-Delay: The pre-delay and post-delay timers can be adjusted using the potentiometers located on the bottom left of the circuit board. Pre-delay timer Pre-Delay: The pre-delay timer can be potentiometer adjusted from 1~30 seconds. This sets the delay time between when the initiate device is used and the lock is released.

  • Page 7: Lock Status Jumper

    ENFORCER Delayed Egress Timer Lock Status Jumper: Default: OFF  When the lock status jumper is ON, the lock status input will detect whether the door is closed and will Jumper 1 trigger relock functions.  The lock status input may be bypassed in order to keep the door unlocked for an indefinite period of time without activating the remote alarm output.

  • Page 8: Remote Alarm Relay Output

    ENFORCER Delayed Egress Timer Remote Alarm Relay Output:  The SA-025EQ is equipped with a 10A@24VDC Form C dry relay output for a remote alarm.  The remote alarm relay is normally energized. The onboard screen print refers to the energized state as normal.

  • Page 9: Free Egress Input

    ENFORCER Delayed Egress Timer Free Egress Input (N.C.+):  Connect a N.C. toggle switch between the free egress input and the positive terminal.  The free egress input allows the lock to be put in the free egress mode. This bypasses any delays and alarms, allowing the initiate device to act as a simple egress device.

  • Page 10: Sample Applications

    ENFORCER Delayed Egress Timer Sample Application – Installation in a Building  In this application, the SA-025EQ is used to delay exit from a building.  Relock mode set to standard mode.  Pre-delay timer set to 15 seconds.  Power-up mode set to automatic relock (DIP Switch 1 OFF). ...

  • Page 11: Sample Applications

    ENFORCER Delayed Egress Timer Sample Application – Installation with a Gate Operator  In this application, the SA-025EQ is used to warn that a gate is about to open or close.  This application is only for gates that use the same input for both opening and closing the gate. ...

  • Page 12: Troubleshooting

    ENFORCER Delayed Egress Timer Troubleshooting:  Check the nuisance delay. See pg. 6, Nuisance Delay.  Check the pre-delay timer. Initiate device (such as a push-to-exit bar) See pg. 6, Adjusting the Pre-Delay and will not release the lock Post-Delay. ...
