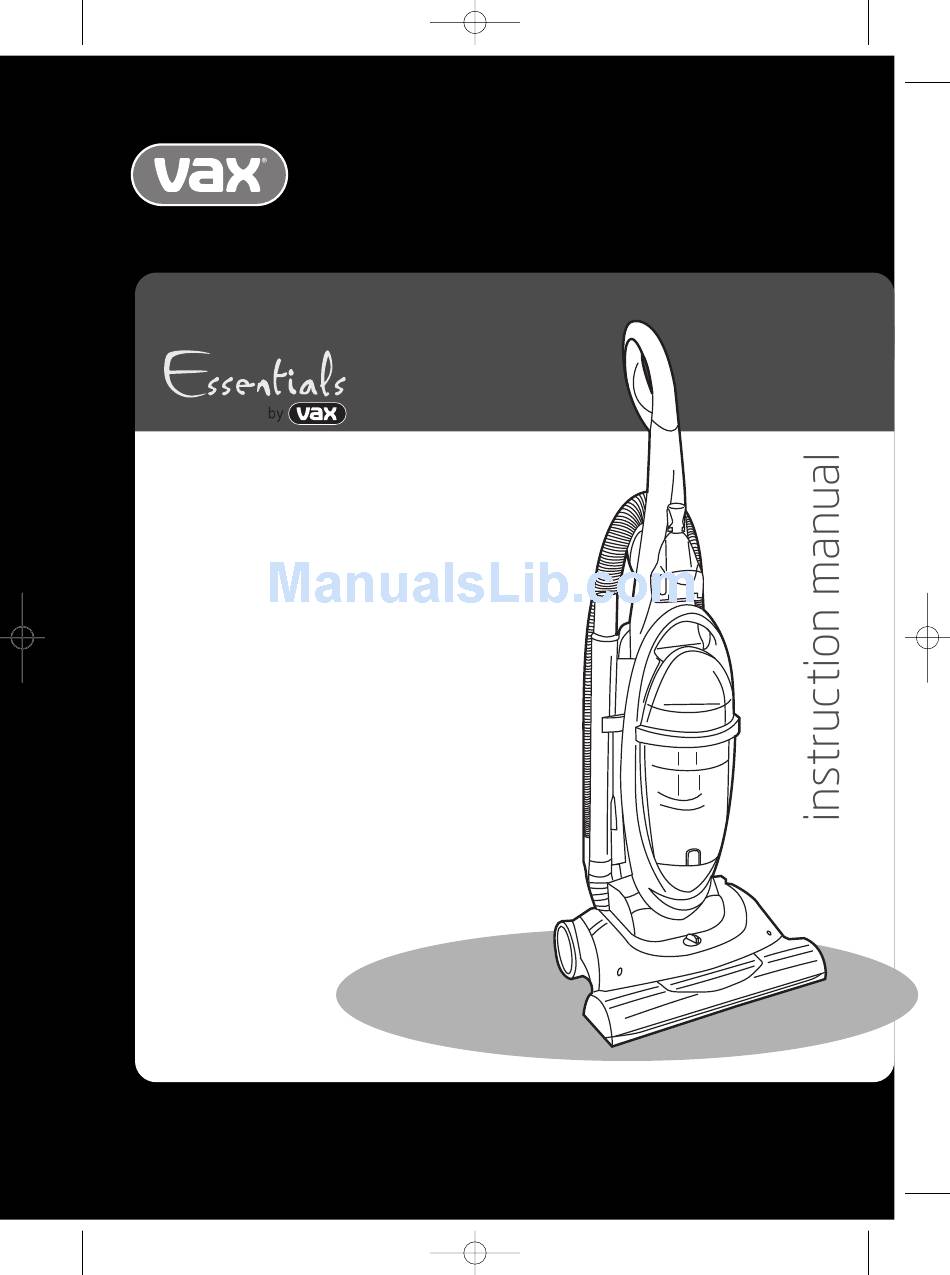

- Page 1 Vax VEU-01_02 User Guide.qxd 16/4/07 13:46 Page 1 Vax careline 0870 6061248 Bagless upright Vax model number: VEU-01 VEU-02 Please read carefully before using this cleaner. www.vax.co.uk Always fully extend the mains cable before use. Retain for future reference.
- Page 2 Vax VEU-01_02 User Guide.qxd 16/4/07 13:46 Page 2 V-015 1. Diagram Fig.1/1 1 Handle 12 Dusting Brush 2 TurboTool (VEU-02 only) 13 Hose 3 Dirt container lid 14 Power Cord 4 Dirt Container 15 Handle release pedal 5 Extension tube...
-
Page 3: Safety Information
Do not use the vacuum cleaner if it has been dropped, damaged, left outdoors or dropped into CAUTION: The vacuum cleaner is a very powerful water. Return the vacuum cleaner to a Vax unit. Before plugging the cord into the outlet make Authorised Service Agent or suitably qualified person sure the switch is in the ‘off’... -
Page 4: Use And Function
Vax VEU-01_02 User Guide.qxd 16/4/07 13:46 Page 4 V-015 3. Use and Function Cord storage: To neatly store the power cord, wrap around the two cord holders and then using the clip (found just below the plug head) attach to the cord itself. -
Page 5: Removal And Replacement
Vax VEU-01_02 User Guide.qxd 16/4/07 13:46 Page 5 user guide Fig.3/4 The accessories provided are as follows: Crevice Tool: Use the crevice tool for radiators, crevices, corners, skirting boards and between cushions. Dusting Brush: Ideal for window sills, curtains, shelving, and general dust lifting off furniture and fittings around the Fig.4/1... - Page 6 Vax VEU-01_02 User Guide.qxd 16/4/07 13:46 Page 6 V-015 Remove the lid of the dirt container (see Fig.4/3). WARNING: Always empty dirt container and clean HEPA filter before each use and during prolonged usage to avoid motor damage. Cleaning the pre-motor filter...
-
Page 7: Maintenance
Vax VEU-01_02 User Guide.qxd 16/4/07 13:46 Page 7 user guide 5. Maintenance Cleaning and Changing the Belt WARNING: Always turn power off before performing any maintenance on the cleaner to reduce chance of an electric shock. 1. Turn vacuum off and unplug from power supply. Press handle release button and recline vacuum to lowest level and lie on a flat surface. - Page 8 Vax VEU-01_02 User Guide.qxd 16/4/07 13:46 Page 8 V-015 1. Rotate the locking ring 180º and then turn the TurboTool® over (Fig.5/5). LOCKING RING Fig.5/5 2. Pivot lowering housing and remove any blockage (Fig.5/6). Fig.5/6 3. To re-assemble, ensure that the tabs are engaged. Pivot the lower housing closed and rotate the locking ring 180º...
-
Page 9: Troubleshooting
Vax VEU-01_02 User Guide.qxd 16/4/07 13:46 Page 9 user guide 6. Troubleshooting W W A A R R N N I I N N G G : : TO REDUCE RISK OF PERSONAL INJURY UNPLUG VACUUM CLEANER BEFORE SERVICING PROBLEM: Cleaner won’t run Cause: Not properly plugged into electrical outlet. -
Page 10: Technical Specification
Vax before calling. There are over 400 approved Subject to technical change without notice. Vax Service Agents in the UK. For the nearest Vax Service Agent, please call the Vax Careline or visit www.vax.co.uk uk service & help / technical specification... - Page 11 Vax VEU-01_02 User Guide.qxd 16/4/07 13:46 Page 11 user guide This page has been left intentionally blank.
- Page 12 16/4/07 13:46 Page 12 EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the VEU-01/VEU-02 is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive EMC: 89/336/EEC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
