2 Standard Concentric Systems Ø 60/100
2.9

Installation of the vertical air/flue duct

Note
h
Observe the maximum flue lengths as detailed
in sections 2.2.3 and 2.2.4.
2.9.1

Contents included with delivery

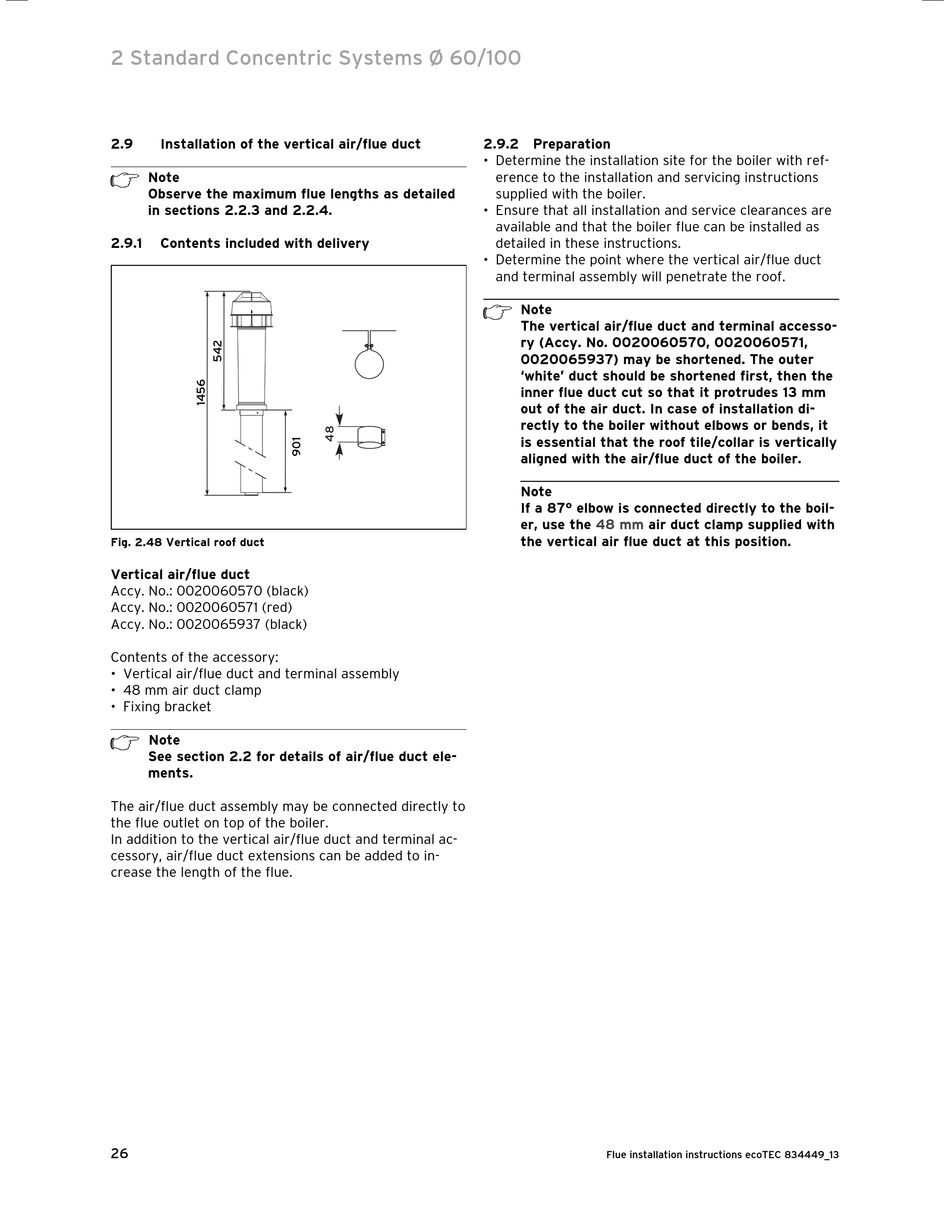

Fig. 2.48 Vertical roof duct
Vertical air/flue duct
Accy. No.: 0020060570 (black)
Accy. No.: 0020060571 (red)
Accy. No.: 0020065937 (black)
Contents of the accessory:
• Vertical air/flue duct and terminal assembly
• 48 mm air duct clamp
• Fixing bracket
h Note
See section 2.2 for details of air/flue duct ele-
ments.
The air/flue duct assembly may be connected directly to
the flue outlet on top of the boiler.
In addition to the vertical air/flue duct and terminal ac-
cessory, air/flue duct extensions can be added to in-
crease the length of the flue.
26

2.9.2 Preparation

• Determine the installation site for the boiler with ref-
erence to the installation and servicing instructions
supplied with the boiler.
• Ensure that all installation and service clearances are
available and that the boiler flue can be installed as
detailed in these instructions.
• Determine the point where the vertical air/flue duct
and terminal assembly will penetrate the roof.
Note
h
The vertical air/flue duct and terminal accesso-
ry (Accy. No. 0020060570, 0020060571,
0020065937) may be shortened. The outer
'white' duct should be shortened first, then the
inner flue duct cut so that it protrudes 13 mm
out of the air duct. In case of installation di-
rectly to the boiler without elbows or bends, it
is essential that the roof tile/collar is vertically
aligned with the air/flue duct of the boiler.
Note
If a 87° elbow is connected directly to the boil-
er, use the 48 mm
the vertical air flue duct at this position.
Flue installation instructions ecoTEC 834449_13
air duct clamp supplied with
