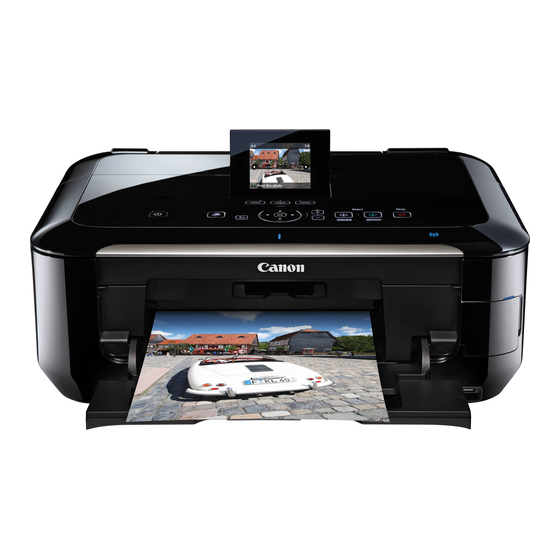

Canon PIXMA MG6220 Network Installation Manual
Installing your multifunction to your network for the first time macintosh os
Hide thumbs
Also See for PIXMA MG6220:
- Network setup manual (13 pages) ,
- Network installation manual (7 pages) ,
- Getting started manual (4 pages)
Related Manuals for Canon PIXMA MG6220
Summary of Contents for Canon PIXMA MG6220
- Page 1 Next >> << Previous Installing Your Multifunction to Your Network for the First Time PIXMA MG6220 Macintosh OS...
- Page 2 << Previous Next >> Installing Your Multifunction to Your Network for the First Time PIXMA MG6220 Macintosh OS Preparing to Connect Your Multifunction to Your Network Network Requirements Notes on Wireless Connection Installing the Drivers & Software...
-
Page 3: Preparing To Connect Multifunction To Network
Preparing to Connect Your Multifunction << Previous Next >> To Your Network Network Requirements Before connecting the machine to the network, make sure that configuration of the computer and access point or router is complete, and that the computer is connected to the network. Wireless Connection Before connecting the machine to the network, the computer needs to be connected to the network. -
Page 4: Preparing To Connect My Multifunction To My Network
Preparing to Connect My Multifunction << Previous Next >> To My Network An "Ad-hoc connection," which establishes a direct connection to the computer over a wireless connection without using an access point, is not supported. A wireless access point or router is required to use your printer on a wireless LAN. -
Page 5: Software Installation
Setup CD-ROM during restarting. The installation resumes once your computer has restarted. • If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access the network. If such a warning message appears, set the security software to always allow access. -
Page 6: Connecting To The Wireless Network
<< Previous Next >> Installing the PIXMA MG6220 on Your Wireless Network If you are installing your printer on your network for the first time, a step-by-step walk through of the wireless setup is built in to the installation routine of the software that shipped with your PIXMA. - Page 7 Connecting to the Wireless Network << Previous Next >> The printer automatically searches for access points that support WPS (Wi-Fi Protected Setup)*. *Unless you are absolutely sure your access point supports WPS and you are familiar with activating this on your access point, press the Stop button on the printer’s operation panel and click on Other Methods on the Setup Procedure Selection screen (screenshot shown below)*.
- Page 8 Connecting to the Wireless Network << Previous Next >> For Standard setup only Select Standard setup on the Setup Procedure Selection screen (3-2) Continue to next page before proceeding any further with setup...
- Page 9 Connecting to the Wireless Network << Previous Next >> Follow On-screen instructions. When you get to Step 4-2 and later in Step 4-4 ( screens shown below) you will need to know SSID and password information* Step 4-4 Step 4-2 *Unless you are absolutely certain of this information, please continue to the next page for information on locating / verifying this information before entering it on the printer.
- Page 10 Connecting to the Wireless Network << Previous Next >> If you don't know your Access Point / Router name or SSID*, or the Passphrase or Network key for your wireless network, you can find this information during Standard setup using the Setup CD-ROM or the downloaded files (Mini Master Setup or Master Setup). *The terms 'SSID' and 'Access Point / Router' refer to a name used to identify the specific Access Point or Router.
- Page 11 Follow any on-screen instructions. Network connection will be automatically confirmed. . Continue to follow any remaining on-screen instructions to install the software. On the Software Installation List screen, select any software to be installed. MP Drivers and Canon IJ Network Tool are required for the printer to be able to print and scan and cannot be de-selected. MP Navigator EX and Easy-PhotoPrint EX* are highly recommended to take full advantage of your printer’s features.
- Page 12 Installing the Drivers & Software << Previous Next >> Click Add Printer on the Add Printer window.
- Page 13 Installing the Drivers & Software << Previous Next >> Select the Canon MG6200 series with Canon IJ Network listed in the Kind column. Click Add.
- Page 14 Installing the Drivers & Software << Previous Next >> Click Next on the Add Printer window. Setup is complete. Continue to follow on-screen instructions to finish and exit the setup program.
- Page 15 Installing the Drivers & Software << Previous Installing the PIXMA MG6220 on Your Wireless Network If you can’t find your CD-ROM, you may download the MG6200 series Mini Master Setup, which includes the same step-by-step installation as the CD-ROM, by following the instructions below: Click here to access the MG6220 Drivers &...
