Beyerdynamic Synexis SG 24 Features And Specifications

Synexis SG 24
Cabinet 19"/24 U
Order # 724.866

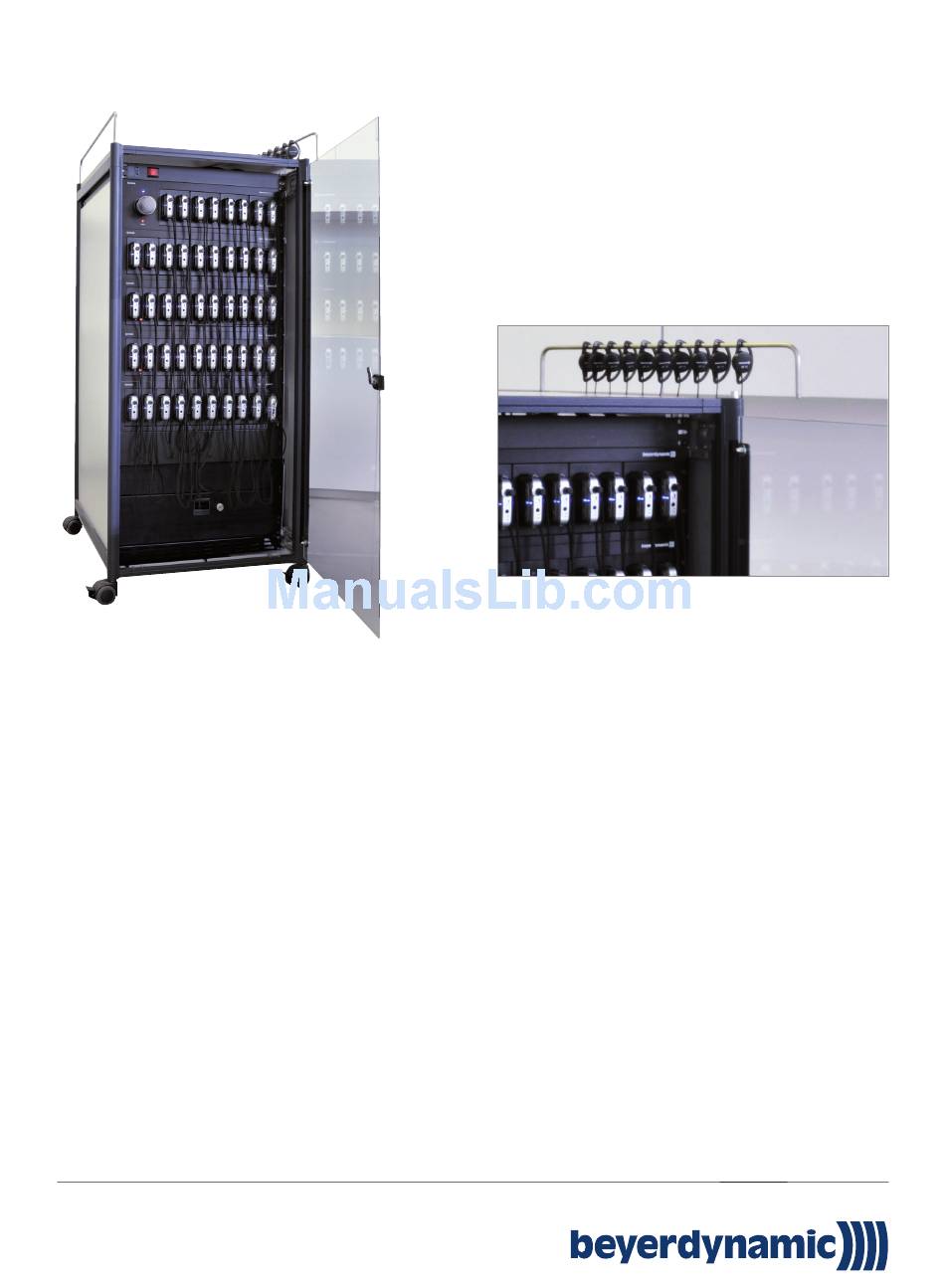

Example with chargers with transmitters/
receivers, central mains switch, drawer, front
closed with blank panels, headphones and
castors.
Supplied without contents.
Non-contractual illustrations.
F
EATURES
• For components according to IEC 297-3
• Cabinet 19" / 24 U
• With lockable door made of safety glass
• Bottom with double swivel castors, 2 of them with brakes
• 19" power box with 7 outlets on the rear
and mains switch on the front
• Lockable drawer 19" / 3 U with
ball bearing track rollers
• Incl. installation of Synexis C 8/C 10 chargers
(not included in the delivery)
• Empty space on the front closed with 19" blank panels
• Incl. mounting material, system and protective conductor test
1 of 2
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204
info@beyerdynamic.de | www.beyerdynamic.com
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E1 / Synexis SG24 (08.12)
Detailed view of pivotable storage place for headphones
A
PPLICATIONS
The SG 24 cabinet (19") with a lockable door made of safety glass
is used for different components such as the Synexis C8 or C10
chargers, which are optionally available. A maximum of six Synexis
C8 or C10 chargers may be operated in the cabinet.
The cabinet is provided with removable side and rear panels. The
adjustable castor can optimally compensate uneven floor surfaces.
The ventilation slots at the top and bottom and a 3 U high passive
ventilation panel on the rear avoid heat accumulation. A lockable
drawer (19") with ball bearing track rollers is used for storing
accessories such as microphones. A power box with 7 outlets on
the rear and a mains switch on the front allows connecting other
mains powered devices. The panelling and rear wall of the cabinet
have a powder-coated texture (RAL 7035 light grey), the frame of
the cabinet is also provided with a powder-coated texture
(RAL 5008 greyish blue). Free space on the front is covered with
19" blank panels.
The upper, pivotable side pieces are used for e.g. single-sided head-
phones.
The delivery of the cabinet includes mounting, mounting material,
system and protective conductor test.
