Use weight (charging) scale: A scale (P/N 2010-0000) must be used to
indicate when the recovery tank is 80% full when the STINGER does not
have the 80% Shutoff Kit option installed.
x
Avoid dangerous environments: Although the unit can be used
outdoors, we do not recommend operation in the rain, or in wet locations.
Secure the unit when working above floor level. This equipment should
not be used in the vicinity of spilled or open containers of flammable
materials.
x
Ventilation requirements: This equipment should be used in a location
with mechanical ventilation that provides at least 4 air changes per hour,
or the equipment should be located at least 18" above the floor.
x
Use recommended accessories: Follow the instructions that
accompany all accessories. Improper use of accessories may damage
the equipment or create a hazard.
x
Repair damaged parts: Do not operate the unit with a defective part.
Repair unit to proper operating conditions.

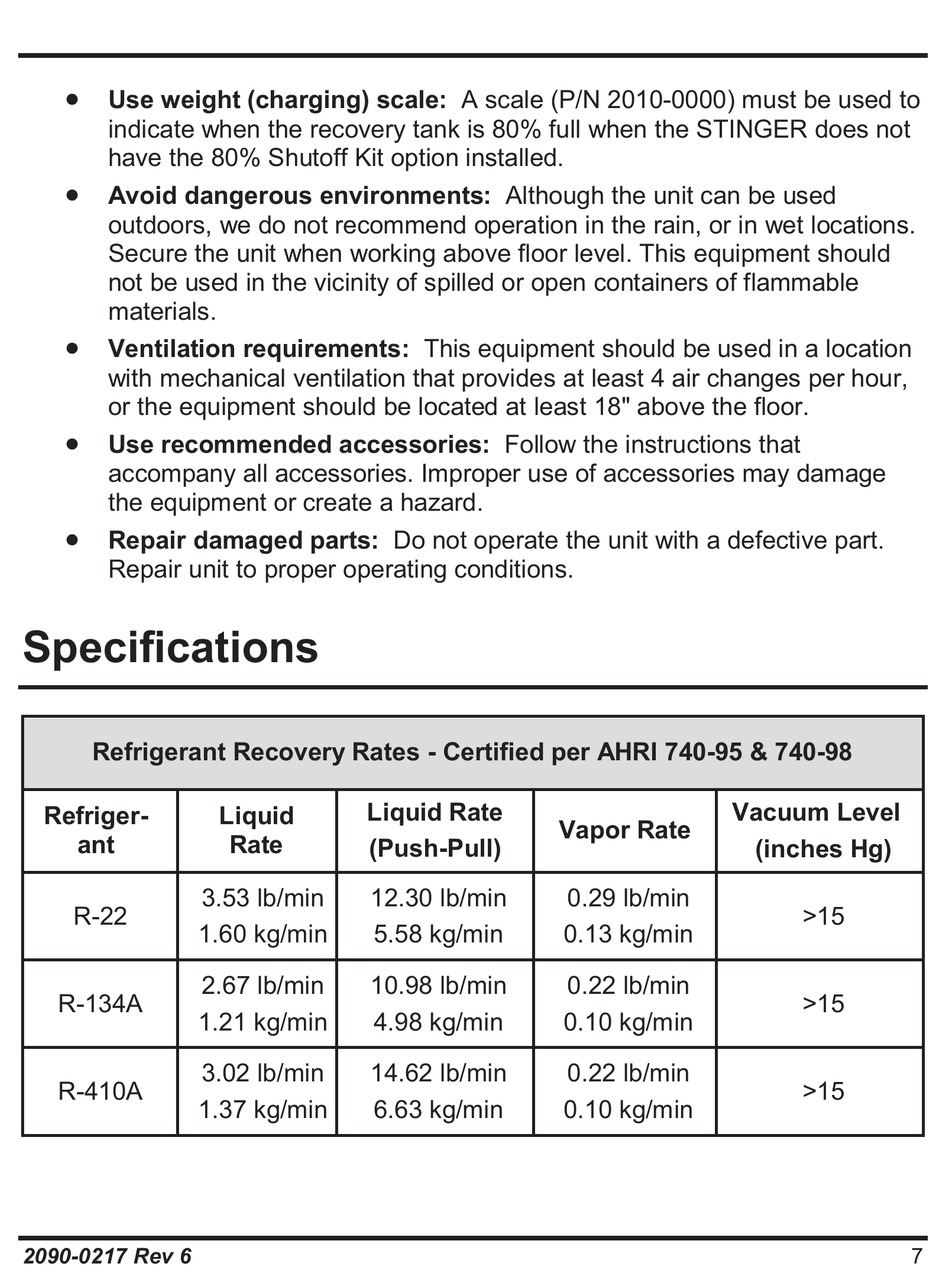

Specifications

Refrigerant Recovery Rates - Certified per AHRI 740-95 & 740-98
Refriger-
ant
3.53 lb/min
R-22
1.60 kg/min
2.67 lb/min
R-134A
1.21 kg/min
3.02 lb/min
R-410A
1.37 kg/min
2090-0217 Rev 6
Liquid Rate
Liquid
Rate
(Push-Pull)
12.30 lb/min
5.58 kg/min
10.98 lb/min
4.98 kg/min
14.62 lb/min
6.63 kg/min
Vacuum Level
Vapor Rate
0.29 lb/min
0.13 kg/min
0.22 lb/min
0.10 kg/min
0.22 lb/min
0.10 kg/min
(inches Hg)
>15
>15
>15
7
