Uncalibrated sensor

Advertisement

Replacement Instructions

IMPORTANT: This sensor requires calibration before being placed into service.
1. Ensure the area is safe for maintenance to be performed in accordance with area
requirements and local regulations.
2. Remove power from the GDX-350 transmitter.
3. Loosen, unscrew, and remove the sensor head cap using the sensor replacement tool (P/N:
5600-0002) as shown below.

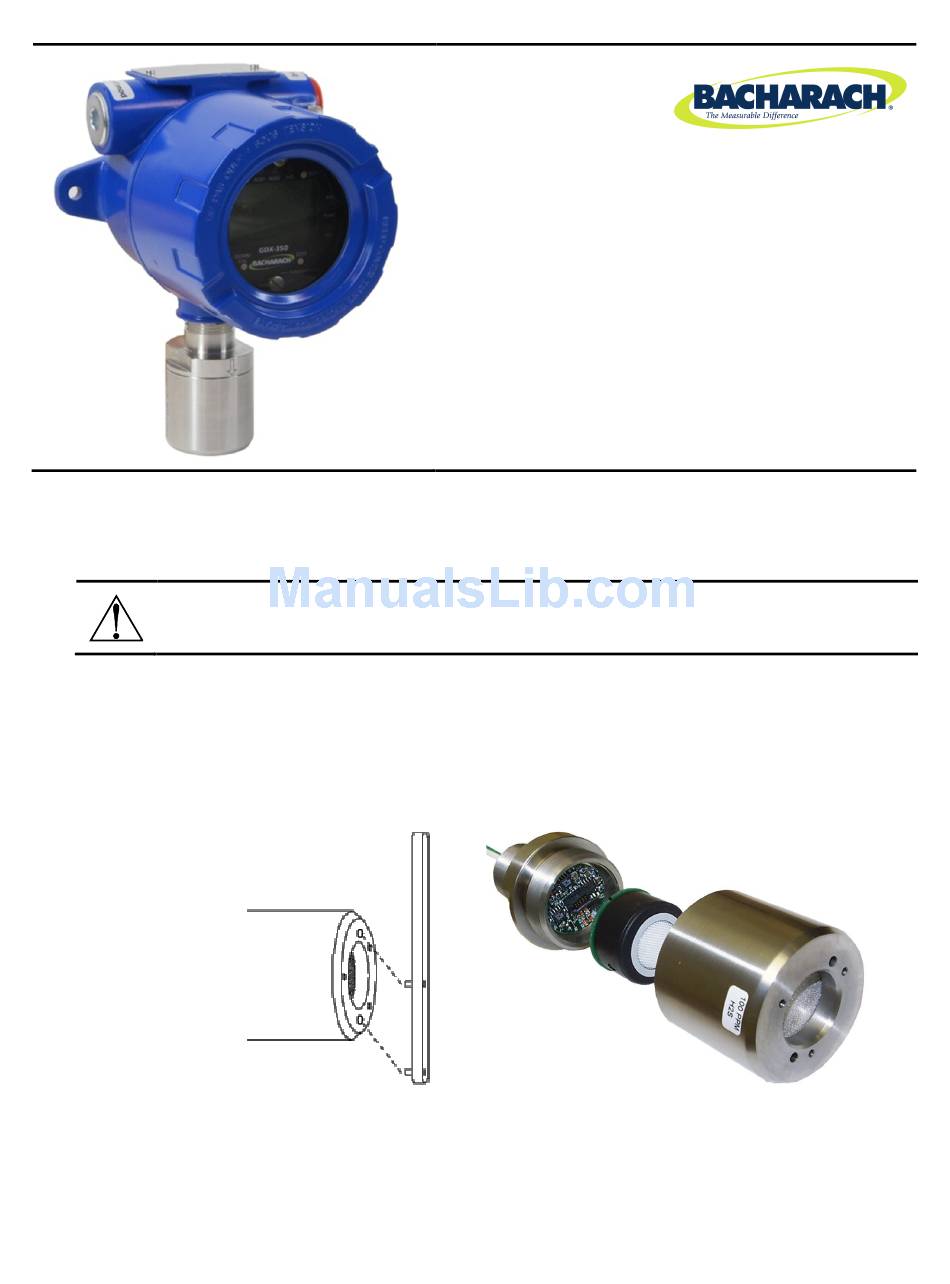

Figure 1. Sensor Head Cap and Sensor Replacement Tool
4. Remove the old sensor assembly (sensor and printed circuit board), noting the position of
the notch found on the PCB header.
5. Install the new replacement sensor module.

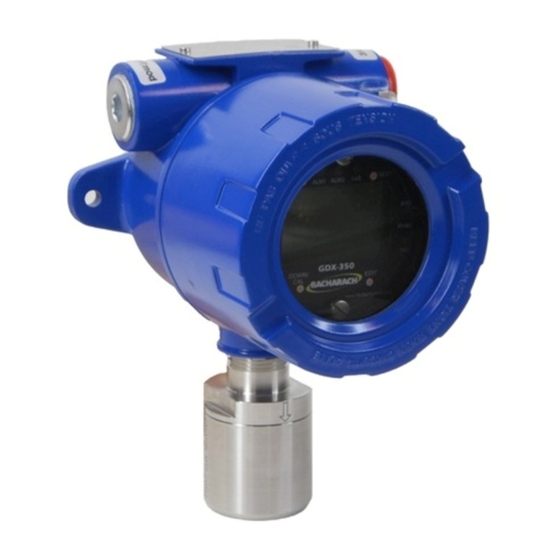

GDX-350 Transmitter
Instructions for Replacing
an Uncalibrated Sensor
Instruction: 5600-9003
Revision: 0
September 13, 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDX-350 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bacharach GDX-350

  • Page 1 1. Ensure the area is safe for maintenance to be performed in accordance with area requirements and local regulations. 2. Remove power from the GDX-350 transmitter. 3. Loosen, unscrew, and remove the sensor head cap using the sensor replacement tool (P/N: 5600-0002) as shown below.
  • Page 2 10. After the sensor identification screen is displayed, the sensor has been successfully installed and is ready for the calibration to be performed. 11. Refer to the GDX-350 manual for full start-up and calibration instructions (P/N: 5600-9001). ∇ ∇ ∇...
