AZiO™ External HD Kit
Quick Start Guide
Model #
ENC211SU31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENC211SU31 and is the answer not in the manual?

Questions and answers

Summary of Contents for Azio ENC211SU31

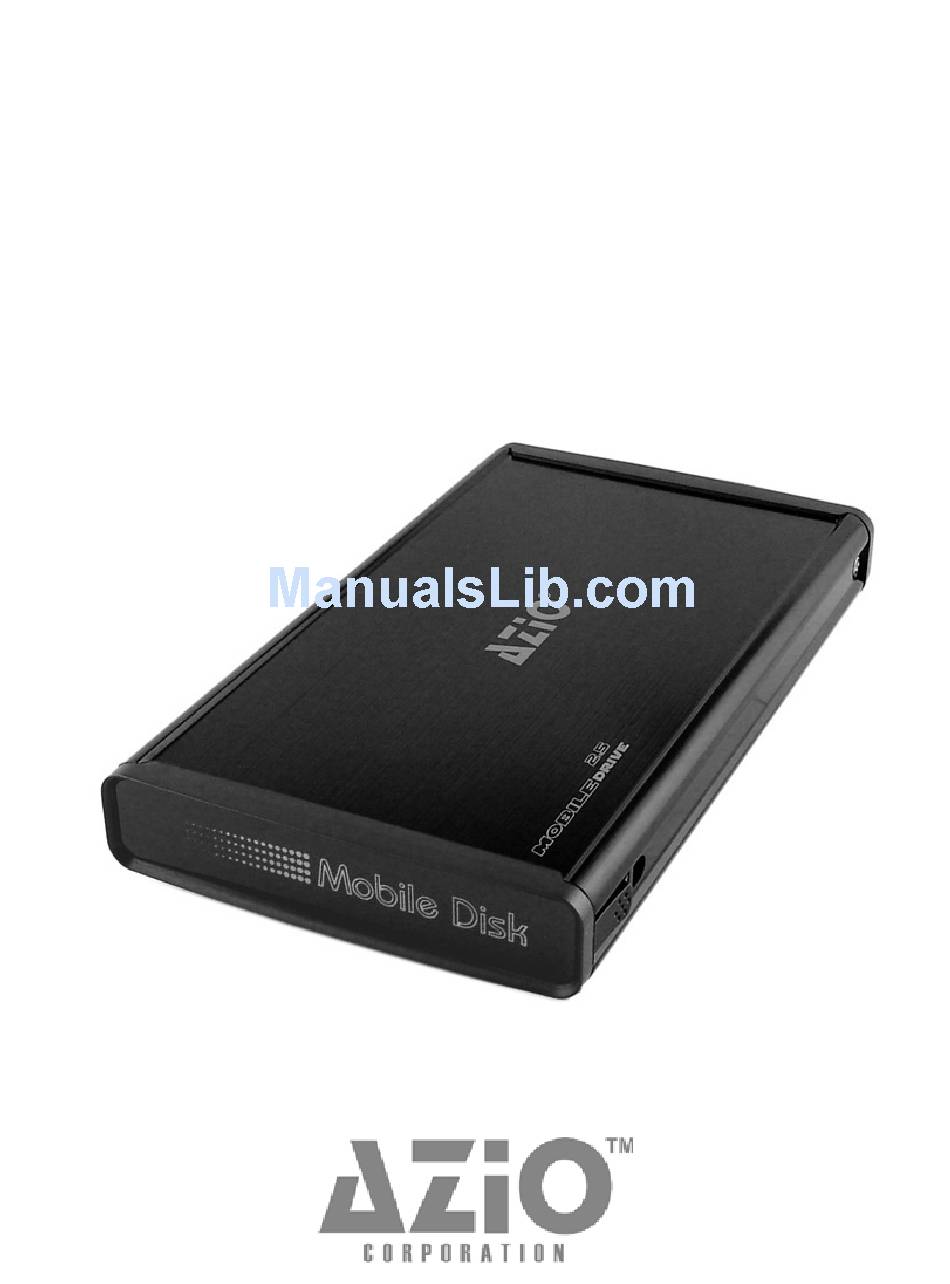

  • Page 1 AZiO™ External HD Kit Quick Start Guide Model # ENC211SU31...
  • Page 2: Package Contents

    OVERVIEW Thank you for purchasing the AZiO USB 2.0 Mobile HD kit, one of the most stylish and practical data storage solutions available. This AZiO HD Kit can convert your internal serial ATA 2.5” hard disk drive into an external hi-speed mobile storage device.
  • Page 3: Powering Up The Device

     Featuring Smart Pull-Out Tray for easy installation POWERING UP THE DEVICE There are two ways to power this AZiO device, via USB or power adapter. Here are the options:  When connected via USB: If connected to a non-...
  • Page 4: Drive Installation

    DRIVE INSTALLATION [STEP 1] Using your thumb and index finger, firmly press the enclosure release latches and gently pull out the front plastic bezel/drive carrier.
  • Page 5 [STEP 2] The Drive Kit PCB contains the interface connector for you’re your hard drive. Orient your 2.5” hard drive so that the drives connectors are aligned with the interface connector. Install the hard drive by firmly pushing the drive until it is securely connected to the PCB. Do not touch the PCB as it contains sensitive electronics that can be easily damaged.
  • Page 6 [STEP 3] Position your hard drive on the carrier so that the screw holes at the bottom of the drive are aligned with the screw holes in the plastic carrier. With a small Philips screw driver, screw the drive to the carrier using the supplied screws.
  • Page 7 [STEP 4] Close the drive kit by carefully sliding the drive carrier back into the Drive Enclosure, making sure the release latches securely locks the carrier in place. Your external drive is now ready for use.
  • Page 8: Software Installation

    SOFTWARE INSTALLATION USB 2.0 Driver Installation  For Windows XP, Windows 2000, Windows ME, MAC OS 9.x and MAC OS 10.x or higher, no drivers are required.  For Windows 98SE, insert the software CD and click follow the instructions below. After the drive has been properly connected and powered on, the Add New Hardware Wizard should appear with the message: “Found New...
  • Page 9 eSATA Driver Installation No drivers are required for all supported operating systems. Windows XP and 2000 Hard Drive Installation If the external hard drive does not mount after you have plugged-in and turned on your external drive, you will need to partition and format the drive by doing the following: 1.
  • Page 10 Windows 98SE and ME Hard Drive Installation If the external hard drive does not mount after you have plugged-in and turned on your drive kit, you would need to partition and format the drive by doing the following: 1. RIGHT-CLICK on “MY COMPUTER”, then click on “PROPERTIES”.
  • Page 11: Service And Warranty

    To the maximum extent permitted by applicable law, in no event shall AZiO Corporation, its affiliates, or its dealers be liable for any special, incidental, indirect or consequential damages whatsoever regardless of cause or form of action.
  • Page 12 FCC Information FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause harmful interference to radio...
