Avocent SwitchView PC Quick Installation Manual

NOTE: If keyboard or mouse issues arise
when using a low-power system such as a
laptop, you should order an optional power
supply. Contact Avocent for more details.
1

Connect your peripherals

2

Connect your computers

3

Power up your system

To Contact Avocent Technical Support
Avocent, the Avocent logo, The Power of Being There and SwitchView are registered trademarks of Avocent Corporation or its affiliates. ©2005 Avocent Corporation. All rights reserved.
Quick Installation Guide
SwitchView

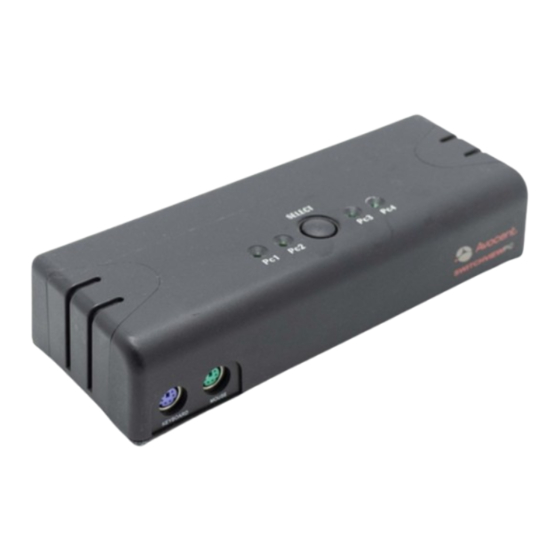

2 or 4-Port PS/2 Desktop KVM Switch

To install the switch

K4
DC 9V
Monitor
Console port COMPUTER 4
CALL (888) 793-8763
The Power of Being There
PC
®
1
M4 K3 M3 K2 M2
VGA 4 VGA 3 VGA 2
COMPUTER 3 COMPUTER 2
VISIT www.avocent.com/support
®
K1 M1
VGA 1
COMPUTER 1
2
DOWNLOAD www.avocent.com
590-572-615A
