AudioSource S325 Owner's Manual page 3

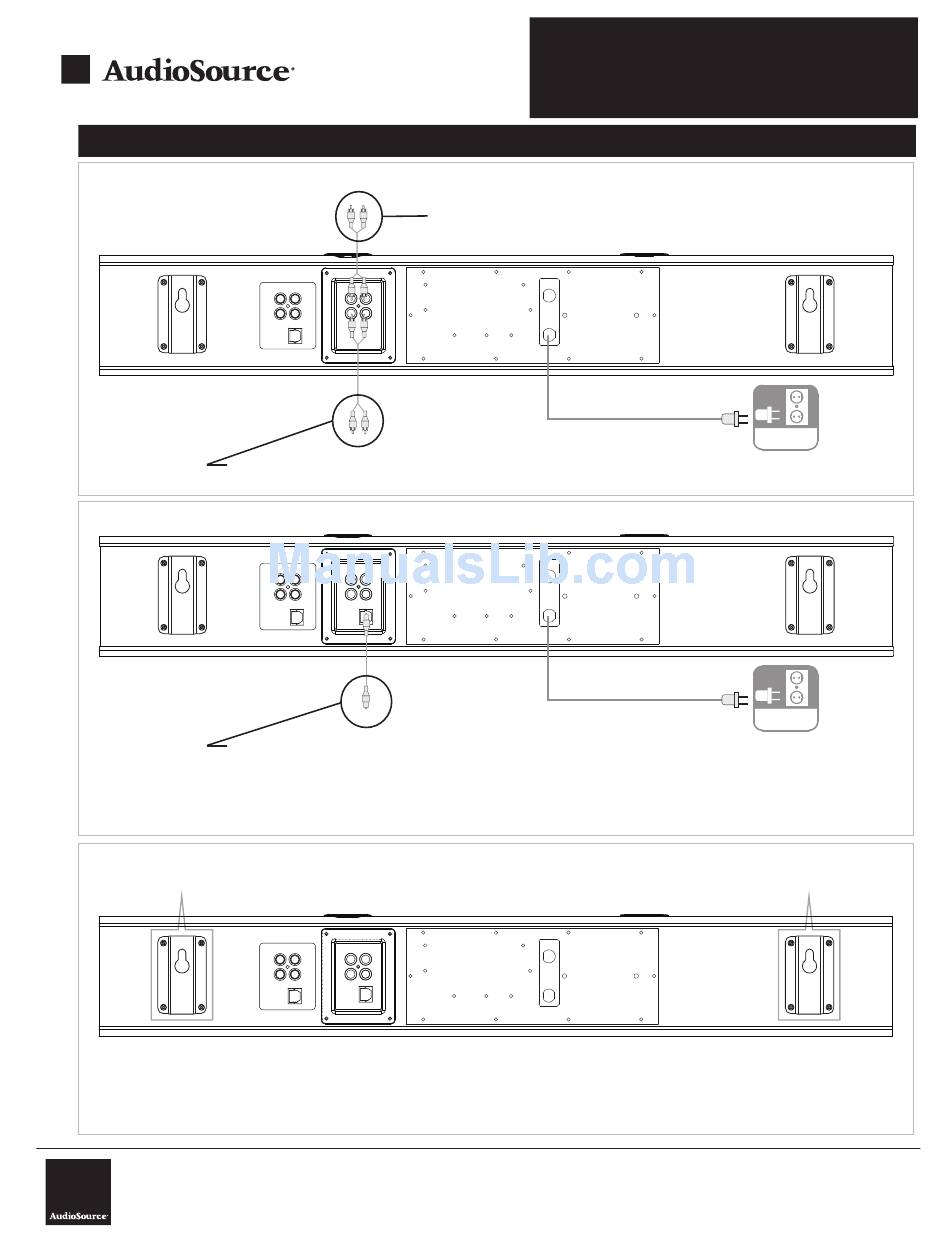

System Connections
Diagram 1- Standard Audio Connections
INPUT1
INPUT2
Optional: Connect to 2nd audio source (DVD, Game Console, Computer, etc.)
Diagram 2- Digital Optical Connection
INPUT1
INPUT2
Optional: Connect Digital Optical cable to audio source (TV, DVD, Game
Console, etc.)
NOTE: audio source must be set to PCM 2-Channel Audio. Please consult the devices owners manual or
technical support to configure.
Diagram 3- Wall Mounting
Wall mounting bracket
INPUT1
INPUT2
To Wall Mount S325:
1. Remove the S325 soundbar's feet using phillips head screw driver
2. Use supplied template to mark mounting locations on wall, ensure template is level
3. Install 2x drywall anchors into drywall where you have made your marks using the provided template. Note: please use drywall anchors
rated for a minimum of 20lbs each- we recommend using the screw in type (available at your local hardware store).
4. Carefully hang S325 on screws mounted to drywall anchors.
