Audioplex THE BEAST Installation Manual

AMPLIFIER
CONNECTION
TERMINAL
7
6
5
4
3
2
1

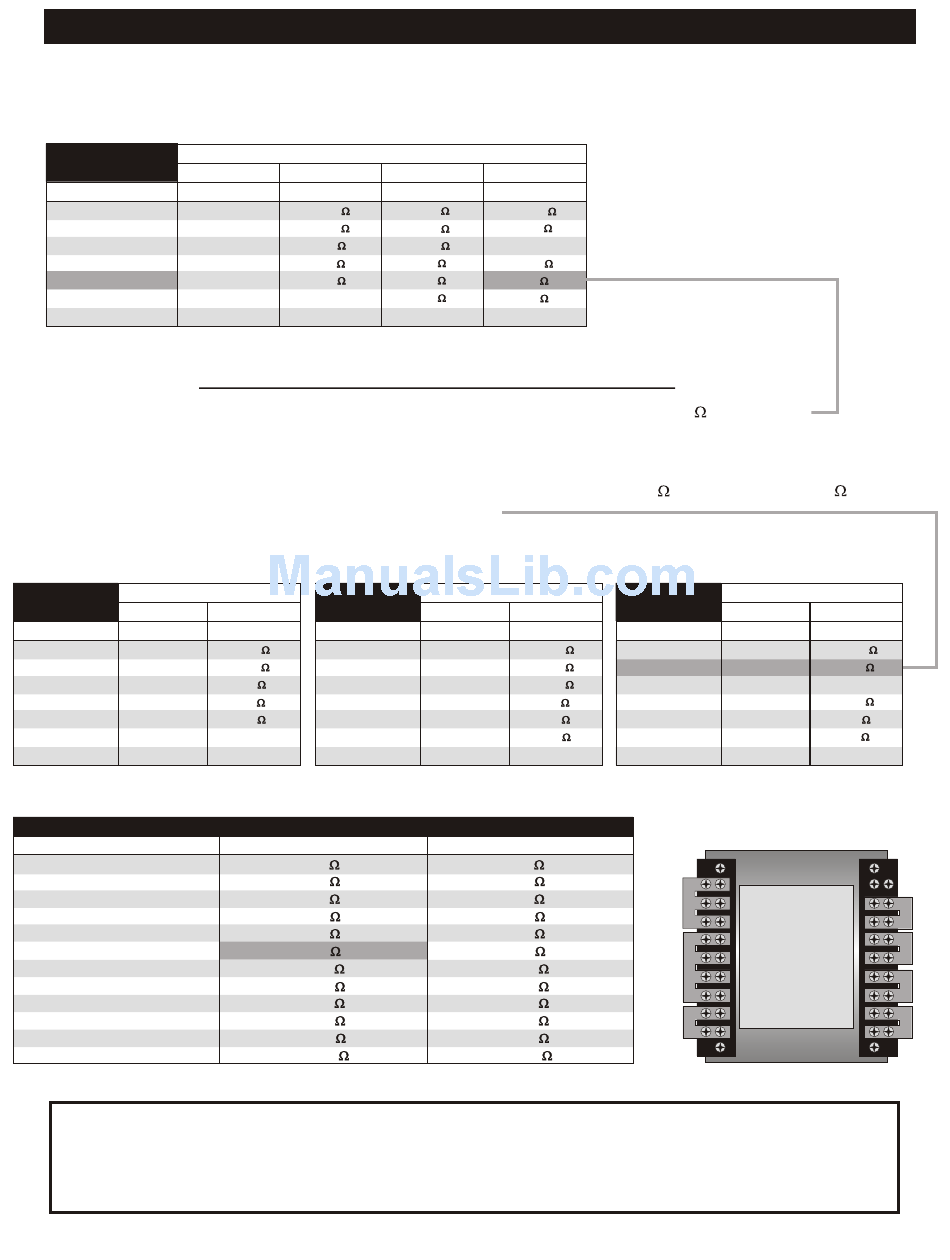

1. Using the chart above select Amplifier Output Capability; Example - 100W @ 8 = Terminal #3
2. The Negative of the Amplifier goes to #1 Terminal.
3. Find the Speaker Impedance Load from the appropriate chart below. Once again find the
amplifier power range (100W), then find the speaker impedance within that chart;
Example: Using Ohms law (10)70V Step Xfrmrs tapped @ 10W = (10/500 ) = 0.02 = (1/0.02) = 50
Therefore (+) of Speaker Lead goes to #6 Terminal.
4. The Negative of the Speaker also goes to #1 Terminal.
AMPLIFIER 300-400W
SPEAKER (+)
CONNECTION
V(RMS)
VOLTS
TERMINAL
7 100V
6 70V
5 56V
4 40V
3 28V
2 20V
1 0V

COMMON IMPEDANCES ON STEP DOWN TRANSFORMER TAPS

Constant Voltage Transformer
40W
30W
25W
20W
15W
10W
5W
3.8W
2.5W
1.5W
1W
0.5W
Exercise EXTREME CAUTION when using this device. Dangerously high voltages can be produced if improperly
installed causing equipment damage or personal injury. If you are unsure with any of the installation procedures
PLEASE CALL TECHNICAL SUPPORT BEFORE PROCEEDING.
INSTALLATION MANUAL
MULTI-SYSTEM 400 WATT STEP UP TRANSFORMER

AMPLIFIER OUTPUT POWER

V(RMS)
300-400W
VOLTS
IMPEDANCE
25
100V
12
70V
8
56V
4
40V
2
28V
---
20V
GND/COM
0V

SELECTING THE INPUT/OUTPUT CONNECTIONS

SPEAKER (+)
CONNECTION
SPEAKER
IMPEDANCE TERMINAL
25
7
12
6
8
5
4
4
2
3
---
2
GND/COM
1
70V-Ohms on Step Down Tap
125
166
200
250
330
500
1000
1300
2000
3230
5000
10000
Technical support can be reached Monday through Friday 9am-5pm EST
THE BEAST
175-225W UP TO 175W
IMPEDANCE IMPEDANCE
50 100
25 50
16 ---
8 16
4 8
2 4
GND/COM GND/COM
AMPLIFIER 175-225W
V(RMS)
SPEAKER
VOLTS
IMPEDANCE
50
100V
25
70V
16
56V
8
40V
4
28V
2
20V
GND/COM
0V
25V-Ohms on Step Down Tap
15
21
25
31
41
62
125
162
250
404
625
1250
1-800-257-2077
AMPLIFIER UP TO 175W
SPEAKER (+)
