Audio Note DAC4.1x Balanced Owner's Information page 11

CONNECTION continued...

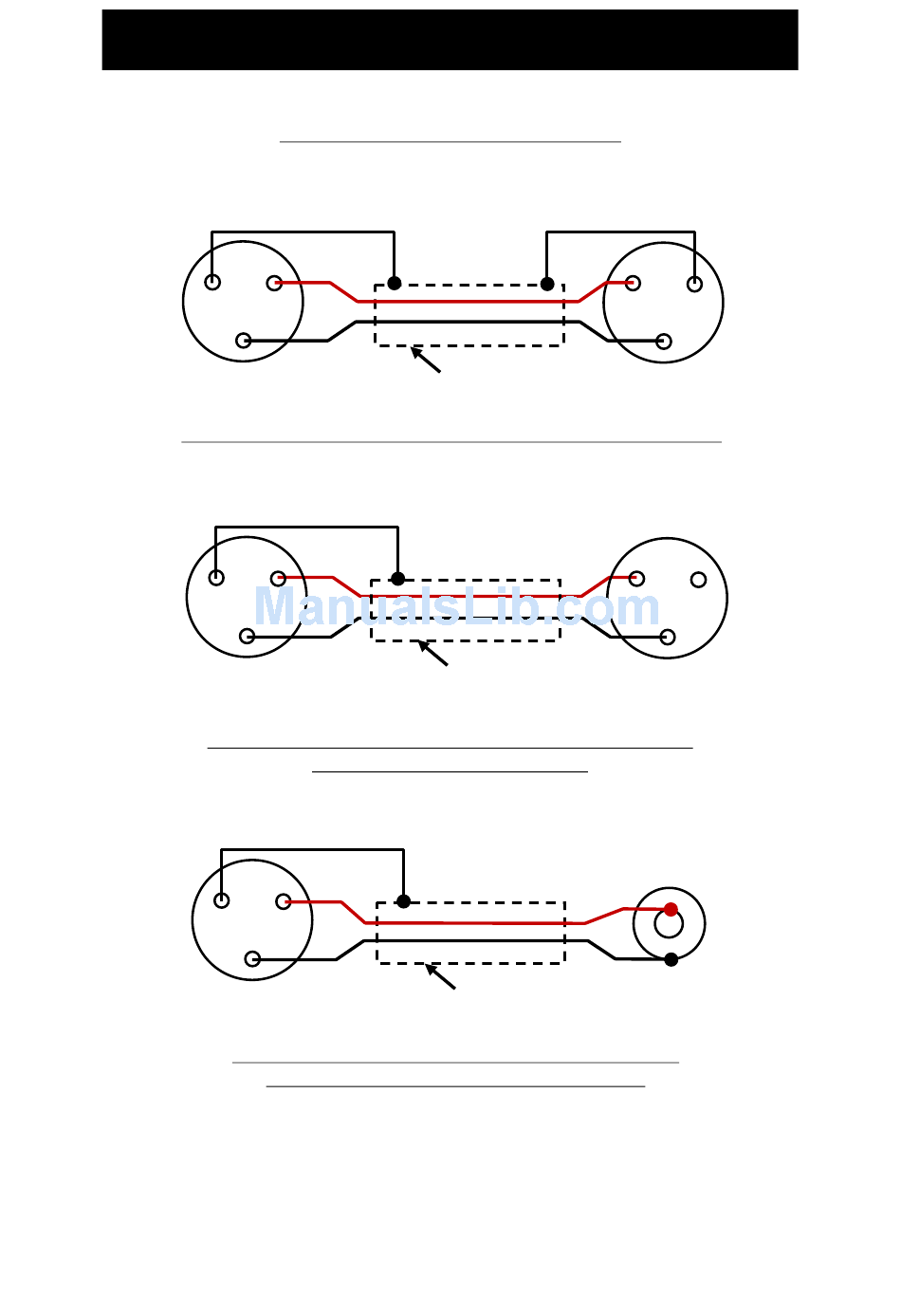

CABLE CONFIGURATION OPTIONS
PRE AMP INPUT
DAC5 OUTPUT
2
1
2
1
3
3
SCREEN
XLR FEMALE
XLR MALE
CONVENTIONAL: SCREEN CONNECTED AT BOTH ENDS
PRE AMP INPUT
DAC5 OUTPUT
2
1
2
1
3
3
SCREEN
XLR FEMALE
XLR MALE
SCREEN CONNECTED AT PREAMP END ONLY, TO
ELIMINATE GROUND LOOPS
PRE AMP INPUT
DAC5 OUTPUT
1
2
3
SCREEN
XLR FEMALE
RCA MALE
CABLE CONFIGURATION FOR XLR BALANCED
OUTPUT TO RCA UNBALANCED INPUT
When connecting the XLR / BALANCED outputs to a pre amplifier with an
RCA / Single Ended input, the switch must be set to the
ʻSINGLE ENDEDʼ position.
!
