u s e r ` s
Important Export Restrictions! Commodities, prod-
ucts, technologies and services contained in this manual
are subject to one or more of the export control laws and
regulations of the U.S. Government and they fall under the
control jurisdiction of either the US Department of State
or the US BIS-Department of Commerce. It is unlawful
and strictly prohibited to export, or attempt to export or
otherwise transfer or sell any hardware or technical data
or furnish any service to any foreign person, whether
abroad or in the United States, for which a license or writ-
ten approval of the U.S. Government is required, without
first obtaining the required license or written approval
from the Department of the U.S. Government having
jurisdiction. Diversion contrary to U.S. law is prohibited.
ATN NVSG1
ATN NVSG2IA

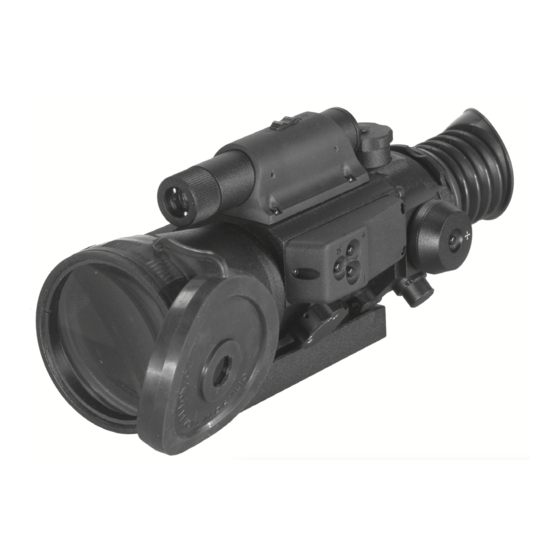

NIGHT VISION RIFLESCOPE
g u i d e
AMERICAN
TECHNOLOGIES
NETWORK
CORP.
Advertisement
Table of Contents
Related Manuals for ATN NVSG1
Summary of Contents for ATN NVSG1

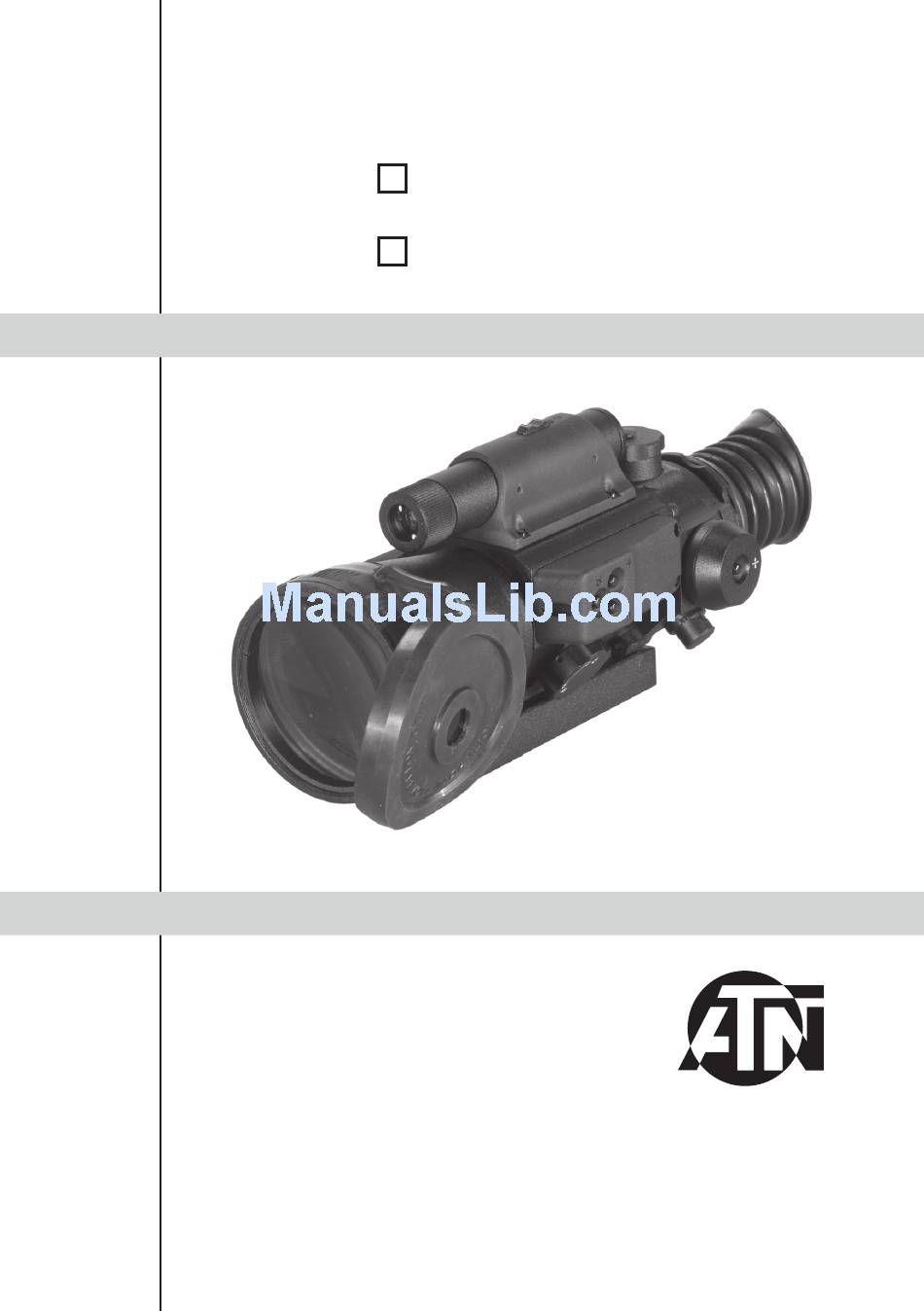

- Page 1 ATN NVSG1 ATN NVSG2IA NIGHT VISION RIFLESCOPE u s e r ` s g u i d e Important Export Restrictions! Commodities, prod- ucts, technologies and services contained in this manual are subject to one or more of the export control laws and regulations of the U.S.
- Page 2 The information in this manual furnished for information use only, is subject to change without notice, is not to be construed as a commitment by ATN Corp. ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book. ©2008 ATN Corp. All right reserved.
-
Page 3: Master Power Switch
CONTROL PANEL The control panel with the cluster of three buttons on it can be found on the left side of the NVSG1/ NVSG2IA. ”SL” button acts as a three-way selection toggle. By pressing it once you will see one of three colored diodes located on the rear side of the scope light up. - Page 4 The yellow diode represents the reticle’s brightness. Adjustments could be easily seen if you look through the NVSG1/NVSG2IA while pressing “ +” /” -” adjustment buttons. To adjust the brightness of the reticle or to turn it off use the control box buttons located on the side of the unit.
-
Page 5: Sleep Mode
SLEEP MODE One of the greatest new features that your Smart scope has is the SLEEP mode. This feature has been designed to considerably extend the period of scope’s functioning, to set the scope to memo- rize your initial settings and endure battery’s life (by settings we mean only digital settings which include brightness of the tube, brightness of the reticle, and magnitude of the IR.) Here is a descrip- tion as to now the sleep mode functions: The scope will automatically shut down if it does not sense any activity (i.e. - Page 6 FOCUSING To focus the NVSG1/NVSG2IA you need to adjust the diopter first. Simply turn the diopter clockwise until it stops. Then concentrate on any object and slowly turn the diopter back counter clockwise until the grain in the image is sharp.
-
Page 7: Windage And Elevation
We suggest an elastic Velcro® loop fastener similar to the trigger switches found on the weapon. RETICLE PATTERNS The NVSG1/NVSG2IA scope comes with five reticle patterns: • Dot NVSG2IA NVSG1 •... -
Page 8: Preparation For Operation
WARNINGS AND CAUTIONS • Always remember to turn off the NVSG1/NVSG2IA when it is not in use. If you do not plan on using your aries scope for a period of more than 10 days, you should remove the batteries. -
Page 9: Troubleshooting
• Never point the NVSG1/NVSG2IA at a bright light source. If the scope shuts off automatically after directing it at a bright light source, turn the unit off and wait 1 - 2 minutes before turning the unit back on. -
Page 10: Specification
SPECIFICATION Total Darkness Technology ...Standard “Smart” Technology ......Standard Magnification ........4x (NVSG1) ............5x ( NVSG2IA ) Intensifier Tube ......1st Gen. (NVSG1) ............2rd Gen.+ ( NVSG2IA ) Detection Range ......175 m (NVSG1) ............250 m (NVSG2IA) Recognition Range......120 m (NVSG1) ............175 m (NVSG2IA) Lens System .........6 element 90 mm;... -
Page 11: Year Product Warranty
ATN, at its option, will ei- ther repair or replace the product, and such action on the part of ATN shall be the full extent of ATN’s li- ability, and the Customer’s sole and exclusive remedy. This warranty does not cover a product (a) used in other than its normal and customary manner;... - Page 12 1341 San Mateo Avenue, South San Francisco, CA 94080 phone: 800-910-2862, 650-989-5100; fax: 650-875-0129 European Office phone: 44(0)870-0111286, fax: 44(0) 845-3349142 The following countries can use our toll free number 00 800 9102-8620 Austria, France, Germany, Holland, Italy, Spain, Sweden, Switzerland www.atncorp.com ©2008 ATN Corporation...
