ATEN VM1616T Specification

16x16 cat 5 a/v matrix switch

Hide thumbs Also See for VM1616T:

Download this manual See also: User Manual

Professional A/V Solutions

VM1616T

Media Matrix Solution

16x16 Cat 5 A/V Matrix Switch

The VanCryst™ Media Matrix Solution is a combination of the VM1616T 16x16 Cat 5 A/V Matrix Switch and

the VE500 / VE300 A/V Over Cat 5 Extender. The VM1616T is a Matrix Switch that routes and distributes audio,

video, and RS-232 signals over distances of up to 300 m with 1920 x 1200 video resolution. The VM1616T

can receive data from up to 16 audio/video sources and transmit data to up to 16+1 audio/video displays. The

VM1616T offers several convenient ways to access and control the source devices: locally, with front panel

pushbuttons and an RS-232/ RS-485/RS-422 serial port; and remotely, over the Internet with a browser-based

web page interface.

The Media Matrix Solution is an ideal solution when long runs to the A/V output locations are required, and

where versatility and security are essential. The VM1616T is designed for deployment in environments that

involve routing video signals such as those found in casinos, transportation and logistics centers, traffic control

centers, port security facilities, industrial supervision settings, etc.

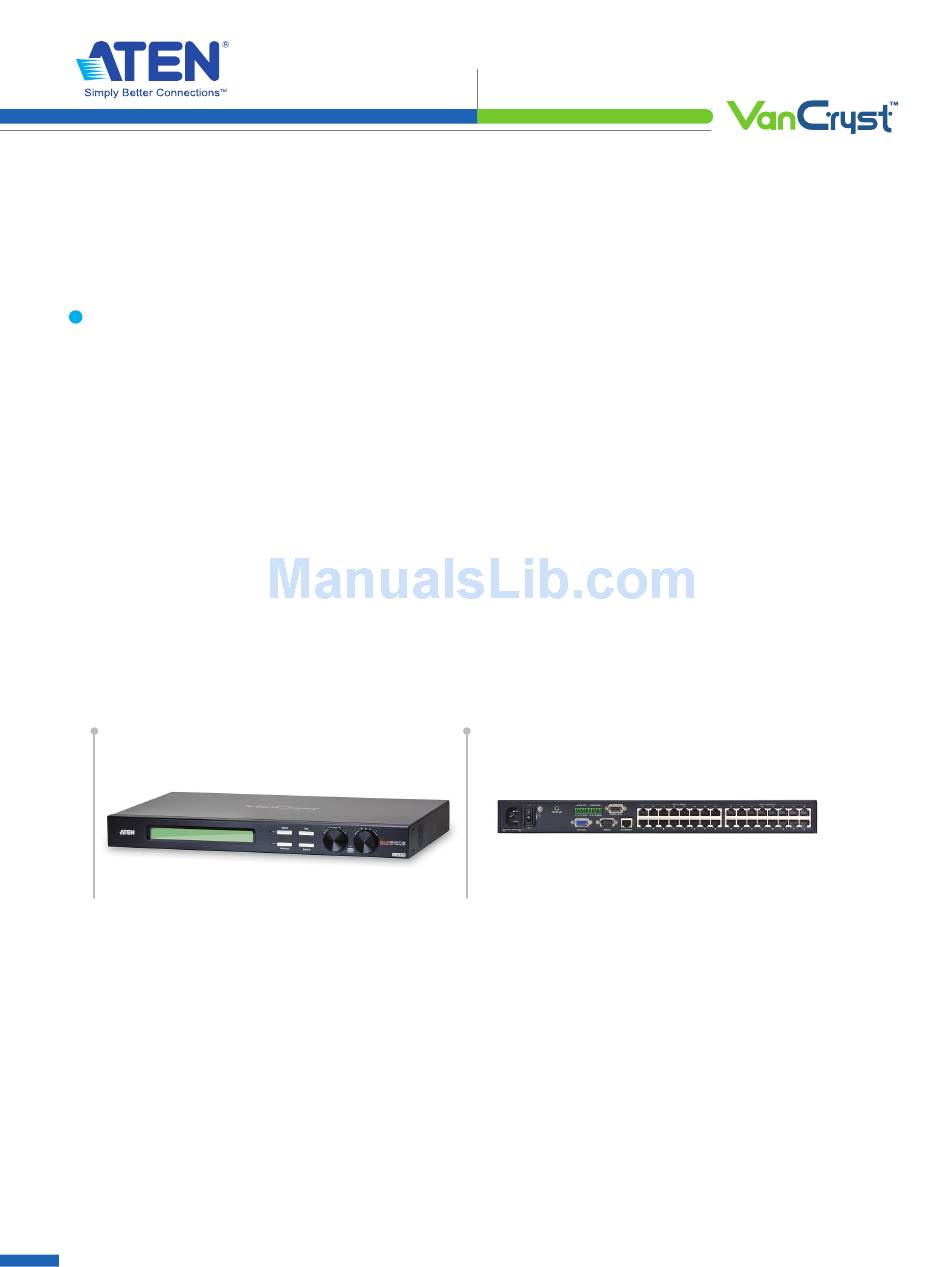

Front view

Rear view

Need help?

Do you have a question about the VM1616T and is the answer not in the manual?

Page 1 The VanCryst™ Media Matrix Solution is a combination of the VM1616T 16x16 Cat 5 A/V Matrix Switch and the VE500 / VE300 A/V Over Cat 5 Extender. The VM1616T is a Matrix Switch that routes and distributes audio, video, and RS-232 signals over distances of up to 300 m with 1920 x 1200 video resolution. The VM1616T can receive data from up to 16 audio/video sources and transmit data to up to 16+1 audio/video displays.
Page 2 Professional A/V Solutions Features • Connects any of 16 Cat 5 A/V inputs to any of 16 Cat 5 A/V outputs in combination with ATEN VE500/VE300 A/V Over Cat 5 Extender system • Long signal range – supports up to 300 meters between VE500T/VE300T transmitters and VE500R/VE500RQ、...
Page 3 Flexible Deployment viewing and listening – up to 300m from the switch. The VM1616T can be located anywhere within 300 m. The balanced audio connector consists of three wires – two carrying the signal Superior Balanced Audio and a shield/ground conductor.
Page 4 Dimensions (L x w x H) 17.02 x 10.68 x 1.73 In * Depends on transmitter and receiver type. ** The maximum transmission distance between transmitter and receiving device is 984 ft. VM1616T can be located anywhere within 984 ft. Model...
