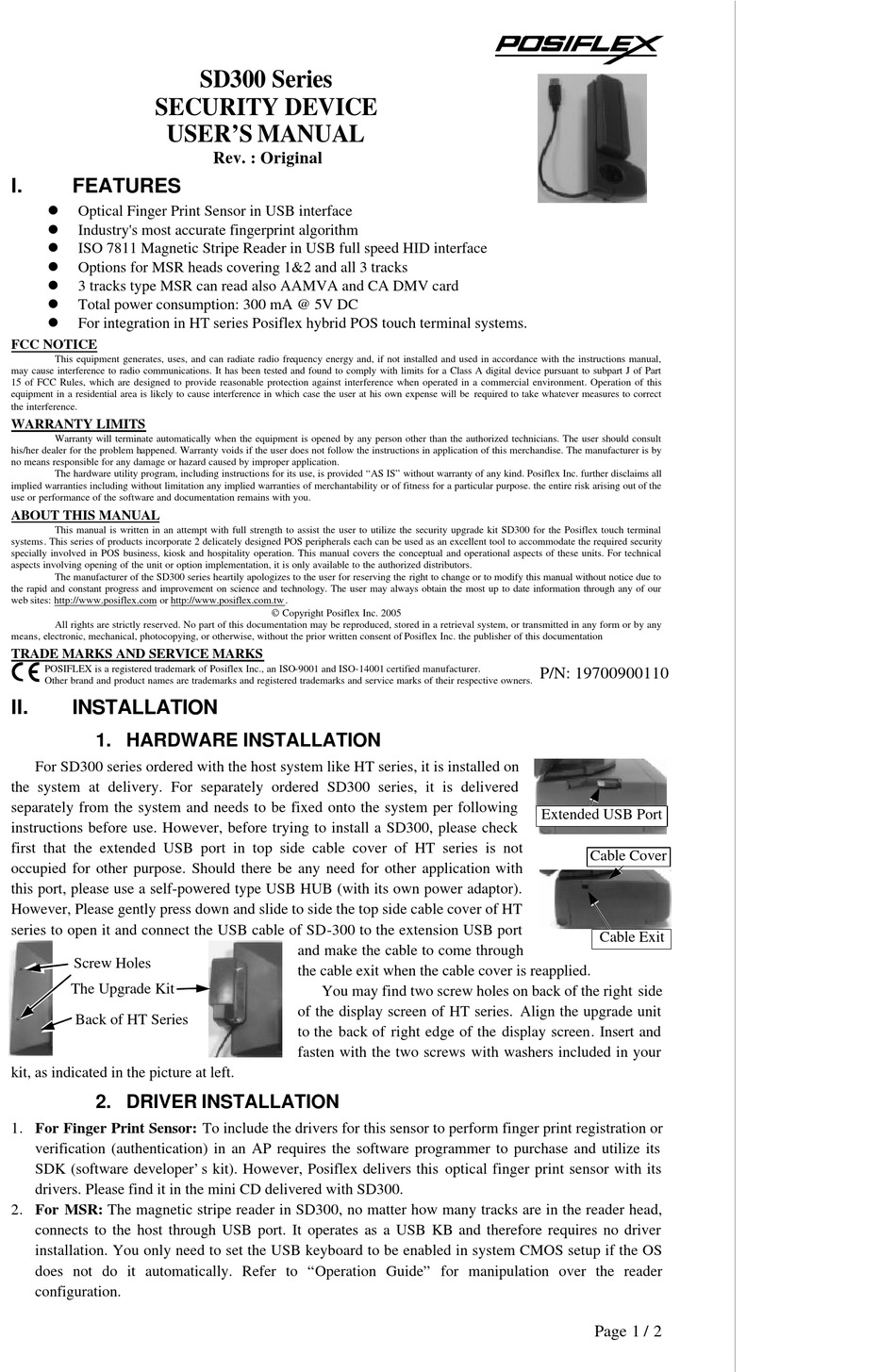

POSIFLEX SD300 Series User Manual

SECURITY DEVICE
USER'S MANUAL
I.

FEATURES

l
Optical Finger Print Sensor in USB interface
l
Industry's most accurate fingerprint algorithm
l
ISO 7811 Magnetic Stripe Reader in USB full speed HID interface
l
Options for MSR heads covering 1&2 and all 3 tracks
l
3 tracks type MSR can read also AAMVA and CA DMV card
l
Total power consumption: 300 mA @ 5V DC
l
For integration in HT series Posiflex hybrid POS touch terminal systems.
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual,
may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart J of Part
15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures to correct
the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the equipment is opened by any person other than the authorized technicians. The user should consult
his/her dealer for the problem happened. Warranty voids if the user does not follow the instructions in application of this merchandise. The manufacturer is by
no means responsible for any damage or hazard caused by improper application.
The hardware utility program, including instructions for its use, is provided "AS IS" without warranty of any kind. Posiflex Inc. further disclaims all
implied warranties including without limitation any implied warranties of merchantability or of fitness for a particular purpose. the entire risk arising out of the
use or performance of the software and documentation remains with you.
ABOUT THIS MANUAL
This manual is written in an attempt with full strength to assist the user to utilize the security upgrade kit SD300 for the Posiflex touch terminal
systems. This series of products incorporate 2 delicately designed POS peripherals each can be used as an excellent tool to accommodate the required security
specially involved in POS business, kiosk and hospitality operation. This manual covers the conceptual and operational aspects of these units. For technical
aspects involving opening of the unit or option implementation, it is only available to the authorized distributors.
The manufacturer of the SD300 series heartily apologizes to the user for reserving the right to change or to modify this manual without notice due to
the rapid and constant progress and improvement on science and technology. The user may always obtain the most up to date information through any of our
web sites: http://www.posiflex.com or http://www.posiflex.com.tw .
All rights are strictly reserved. No part of this documentation may be reproduced, stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, or otherwise, without the prior written consent of Posiflex Inc. the publisher of this documentation
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Posiflex Inc., an ISO-9001 and ISO-14001 certified manufacturer.
Other brand and product names are trademarks and registered trademarks and service marks of their respective owners.
II.

INSTALLATION

1. HARDWARE INSTALLATION

For SD300 series ordered with the host system like HT series, it is installed on
the system at delivery. For separately ordered SD300 series, it is delivered
separately from the system and needs to be fixed onto the system per following
instructions before use. However, before trying to install a SD300, please check
first that the extended USB port in top side cable cover of HT series is not
occupied for other purpose. Should there be any need for other application with
this port, please use a self-powered type USB HUB (with its own power adaptor).
However, Please gently press down and slide to side the top side cable cover of HT
series to open it and connect the USB cable of SD-300 to the extension USB port
Screw Holes
The Upgrade Kit
Back of HT Series
kit, as indicated in the picture at left.

2. DRIVER INSTALLATION

1. For Finger Print Sensor: To include the drivers for this sensor to perform finger print registration or
verification (authentication) in an AP requires the software programmer to purchase and utilize its
SDK (software developer's kit). However, Posiflex delivers this optical finger print sensor with its
drivers. Please find it in the mini CD delivered with SD300.
2. For MSR: The magnetic stripe reader in SD300, no matter how many tracks are in the reader head,
connects to the host through USB port. It operates as a USB KB and therefore requires no driver
installation. You only need to set the USB keyboard to be enabled in system CMOS setup if the OS
does not do it automatically. Refer to "Operation Guide" for manipulation over the reader
configuration.
SD300 Series
Rev. : Original
Copyright Posiflex Inc. 2005
and make the cable to come through
the cable exit when the cable cover is reapplied.
You may find two screw holes on back of the right side
of the display screen of HT series. Align the upgrade unit
to the back of right edge of the display screen. Insert and
fasten with the two screws with washers included in your
P/N: 19700900110
Extended USB Port
Cable Cover
Cable Exit
Page 1 / 2
