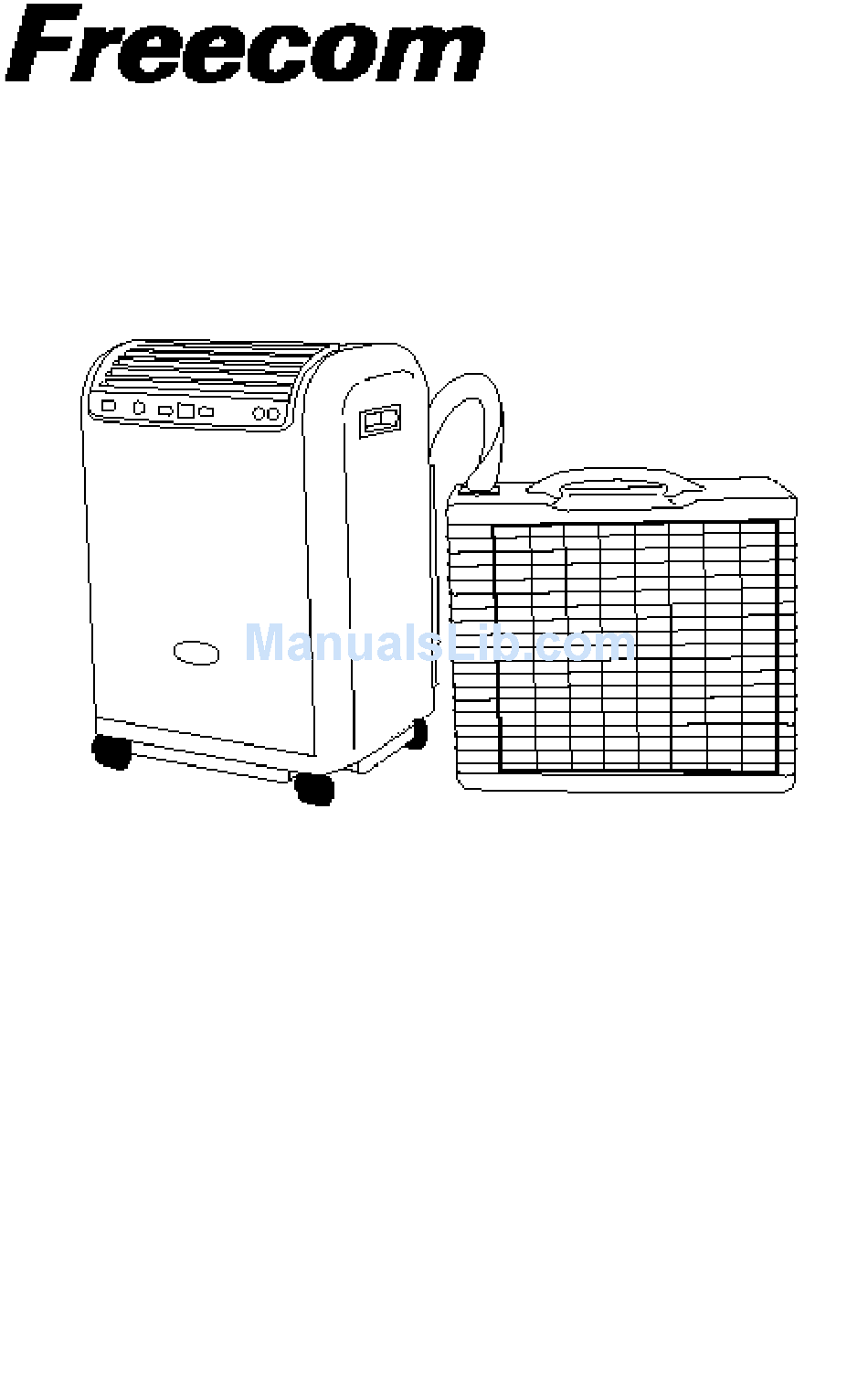

Models RCS-S3000T
®
RCS-S5000U
RCS-S5000B
PORTABLE AIR CONDITIONER
OPERATION MANUAL
IMPORTANT NOTICE:
To avoid damage and voiding your warranty, place both units in their
upright positions for a minimum of two hours before operating.
For best results, and more enjoyment from your new FREECOM portable
air conditioning unit, please read this instruction manual
carefully and save for future reference.
3000-398
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Freecom RCS-S3000T
Summary of Contents for Freecom RCS-S3000T
-
Page 1: Operation Manual
Models RCS-S3000T ® RCS-S5000U RCS-S5000B PORTABLE AIR CONDITIONER OPERATION MANUAL IMPORTANT NOTICE: To avoid damage and voiding your warranty, place both units in their upright positions for a minimum of two hours before operating. For best results, and more enjoyment from your new FREECOM portable air conditioning unit, please read this instruction manual carefully and save for future reference. -
Page 2: Table Of Contents
DO NOT OPEN CABINET. DANGEROUS HIGH VOLTAGE IS PRESENT. REFER SERVICING ONLY TO QUALIFIED PERSONNEL. Your air conditioner contains a refrigerant which is converted from a gas to a liquid by a highly efficient compressor. It has been designed to operate in a vertical position only. -
Page 3: Features
FEATURES Thank you for purchasing the FREECOM RCS-S3000T Portable Air Conditioner. The RCS-S3000 and RCS-S5000 series Portable Air Conditioners are designed with many state-of-the art features: • Wireless remote control enables operation of up to 16 feet (5 meters) from indoor unit. -
Page 4: Instructions De Securite
TRES IMPORTANT Pour éviter les risques d'incendie ou de choc électrique, n'exposez pas l'appareil à la pluie ou à l'humidité. En cas de panne, faites appel au service après-vente qualifié pour effectuer des réparations sur cet appareil. Votre climatiseur contient un réfrigérant qui passe d'une phase gazeuse à une phase liquide au moyen d'un compresseur. -
Page 5: Important Safety Information
Turn off the air conditioner imme- diately using the power on/off "I/O" button and contact a qualified electrician to deter- mine the problem. -
Page 6: Product Parts
PRODUCT PARTS FRONT VIEW Indoor Unit Outdoor Unit Control Panel Horizontal Air Louver Air Outlet Built-in Handle G. Air Filter Emergency Water Drain Tube Water Drain Plug Power Cord Flex Tube Caster Wheels M. Connector Cover Drain Port (outdoor unit) Support Plate Q. -
Page 7: The Control Panel
THE CONTROL PANEL POWER ON/OFF "I/O" Easy push-button control switch to turn the unit ON and OFF. MODE There are five different fan speed settings: • AUTO—Automatic fan speed with cooling setting by room temperature. • HI—High fan speed with cooling setting •... -
Page 8: Before Using
BEFORE USING IMPORTANT: Remove unit from packaging and discard clear, plastic wrapping. Place both units in upright position for a minimum of two hours before operating for the first time. CAUTION: Never use line/tube set to move, carry, or lift units. DO NOT place units near open flame or heat source. -
Page 9: Outdoor Unit
INSTALLATION (contd.) Outdoor Unit The outdoor unit can be either surface placed or wall-mounted. In either case, the out- door unit must be fitted so the flexible tube set easily reaches the indoor unit. The flexi- ble tube set can be routed through a window, door, or wall. For routing through a wall, please consult a certified contractor to perform interior and exterior hole cutting and dis- connecting the tube set. -
Page 10: Installation
Disconnecting Tube Set This air conditioner is equipped with convenient quick Connect Couplings which allow for the removal and routing of the Tube Set through narrow windows or walls. CAUTION: Removing and re-connecting the Tube Set should be performed only by a qualified heating and air conditioning professional. -
Page 11: Operation
OPERATION CAUTION: To avoid damage and voiding your warranty, place both units in their upright positions for a minimum of two hours before operating. DO NOT operate unit without air filter properly in place or while tube set is disconnected. Cooling This unit is intended to cool a 300-600 square foot area. -
Page 12: Operating The Timer
NOTE: The Wireless Remote Control will oper- ate up to 16 feet (5 meters) from indoor unit. 1. Press "POWER on/off" button to remotely operate unit. 2. Press function buttons, as desired, to control air conditioner. See "CONTROL PANEL" for button controls and functions. -
Page 13: Maintenance And Cleaning
MAINTENANCE AND CLEANING Draining Water Tank When the condensate water tank is full, the “DRAIN WATER” indicator light will flash, the unit will sound several initial warning beeps, and the unit will automatically turn off. IMPORTANT: For the indoor unit's condensate drain pump to function properly, the outdoor unit must not be more than 6 feet above indoor unit. -
Page 14: Cleaning Air Filter
MAINTENANCE AND CLEANING (contd.) Cleaning Air Filter This unit has one air filter. For best results and maximum performance, clean filter every two weeks, or as required by environmental conditions. CAUTION: Neglect or failure to regularly clean the filter will result in poor efficiency, reduced performance, possible damage to the unit, and voiding your warranty. -
Page 15: Cleaning Cabinet Exterior
MAINTENANCE AND CLEANING (contd.) Cleaning Cabinet Exterior WARNING: ELECTRICAL SHOCK HAZARD: • Never operate or (un)plug unit with wet hands. • Turn off unit and unplug from wall outlet before cleaning. • Never submerse the unit in any type of liquid or expose to heavy moisture. •... -
Page 16: Troubleshooting
TROUBLESHOOTING Before contacting a dealer or qualified service technician, please read and check the following troubleshooting guide. If, after reviewing and performing the following solu- tions, your unit should continue to operate improperly, turn unit off and contact your Freecom dealer for service. CAUTION: Always use a qualified electrician to check/repair electrical systems.
