Summary of Contents for Patton electronics ThinMau 2102

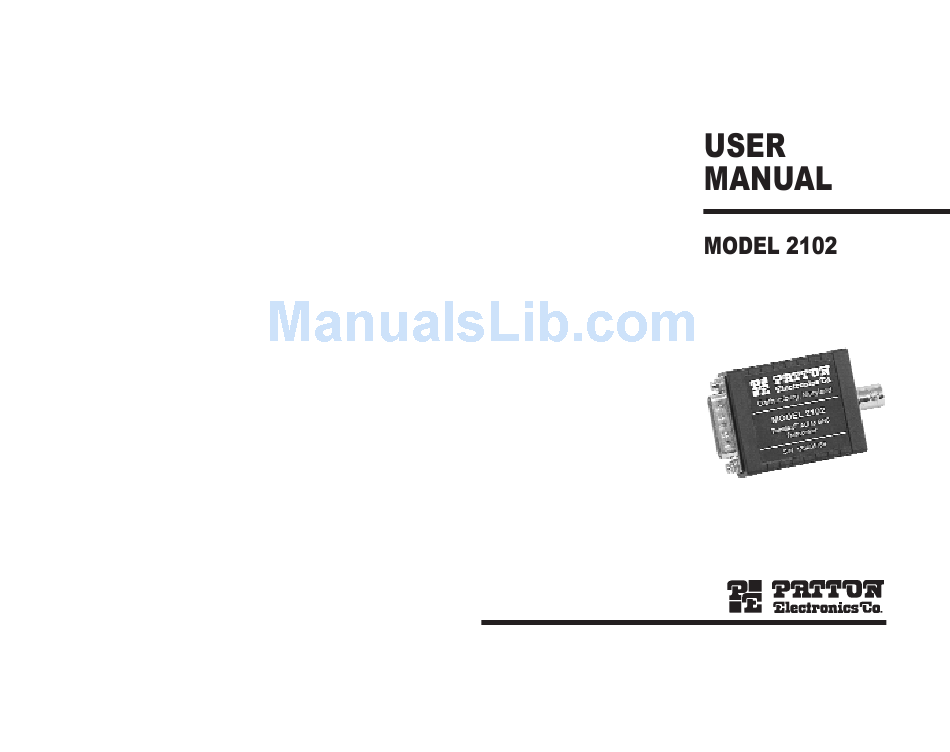

- Page 1 ThinMau 10Base2 Transceiver/MAU SALES OFFICE Part# 07M2102-A (301) 975-1000 Doc# 063021UA TECHNICAL SUPPORT Revised 5/17/94 (301) 975-1007 http://www.patton.com...
- Page 2 Patton Electronics warrants all Model 2102 components to be Thank you for your purchase of this Patton Electronics product. free from defects, and will—at our option—repair or replace the product This product has been thoroughly inspected and tested and is should it fail within one year from the first date of shipment.
- Page 3 Open the slide latch of the AUI port and insert the Model 2102 into the DB-15. Lock the slide latch to secure the Model 2102 in place. The Model 2102 is designed to be easy to use. There are no If the AUI port is mounted to a card, make sure the card is internal jumpers or configuration switches to set, so there is no need to configured correctly and the AUI port is enabled.
- Page 4 SPECIFICATIONS FEATURE The SQE feature verifies that the Model 2102 transmits packets Standard: IEEE 802.3 compliant correctly: After the node sends each packet, the Model 2102 sends a pulse back to the node verifying that the Model 2102 has transmitted Connectors: DB-15 male on AUI port, BNC connector for the packet correctly.
- Page 5 BLOCK DIAGRAM...
