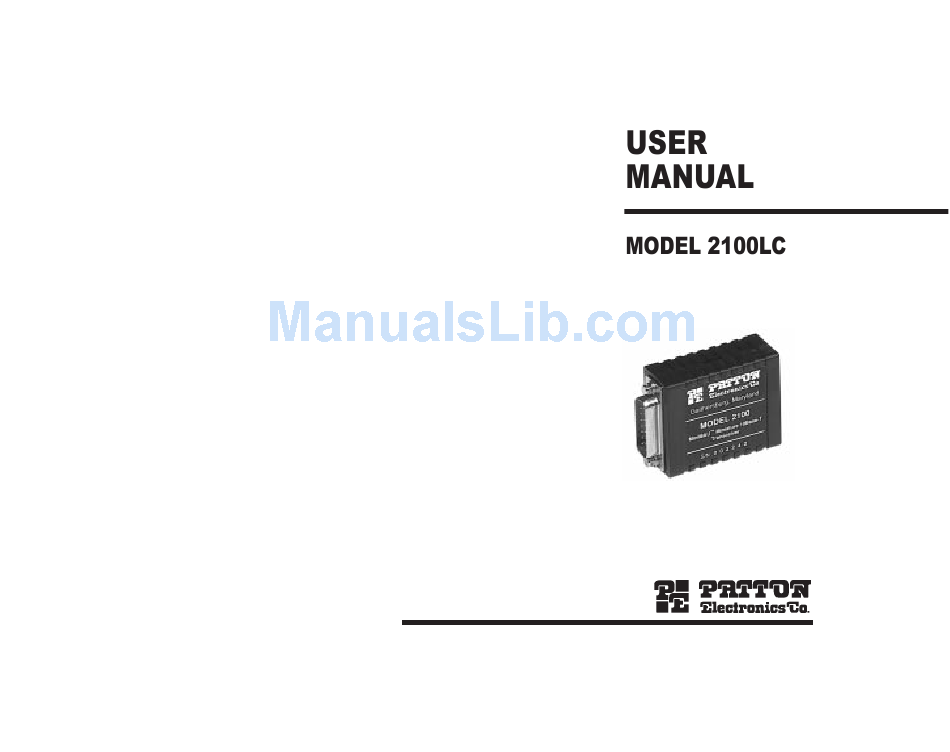

- Page 1 ValueMAU 10BaseT Transceiver/MAU SALES OFFICE Part# 07M2100LC-A (301) 975-1000 Doc# 063012UA TECHNICAL SUPPORT Revised 5/24/94 (301) 975-1007 http://www.patton.com...
- Page 2 PC AUI port via a male DB-15 and to two twisted pair wire antenna and/or plugging the receiving equipment into a different AC via an RJ-45 jack. The Model 2100LC is housed in a sturdy ABS outlet (such that the computing equipment and receiver are on different plastic case measuring only 2”...
- Page 3 Turn off the computer or device to which the Model 2100LC is Signal Pin # Pin # Signal to be connected. If the Model 2100LC is to be connected to the AUI port of an Transmit(+) 1 ----------------------1 Transmit(+) Ethernet interface card, turn the SQE switch ON. If the Model Transmit(-)
- Page 4 Duration between transmit link pulses: 8ms(min)/24ms(max) Duration between receive link pulses: 3ms(min)/105ms(max) If the Model 2100LC is connected to an interface card, the SQE feature should be enabled (switch ON). If the Model 2100LC is Collision Parameters: connected to a hub or repeater, the SQE switch should be OFF.
