Summary of Contents for VocoPro SOUNDMAN

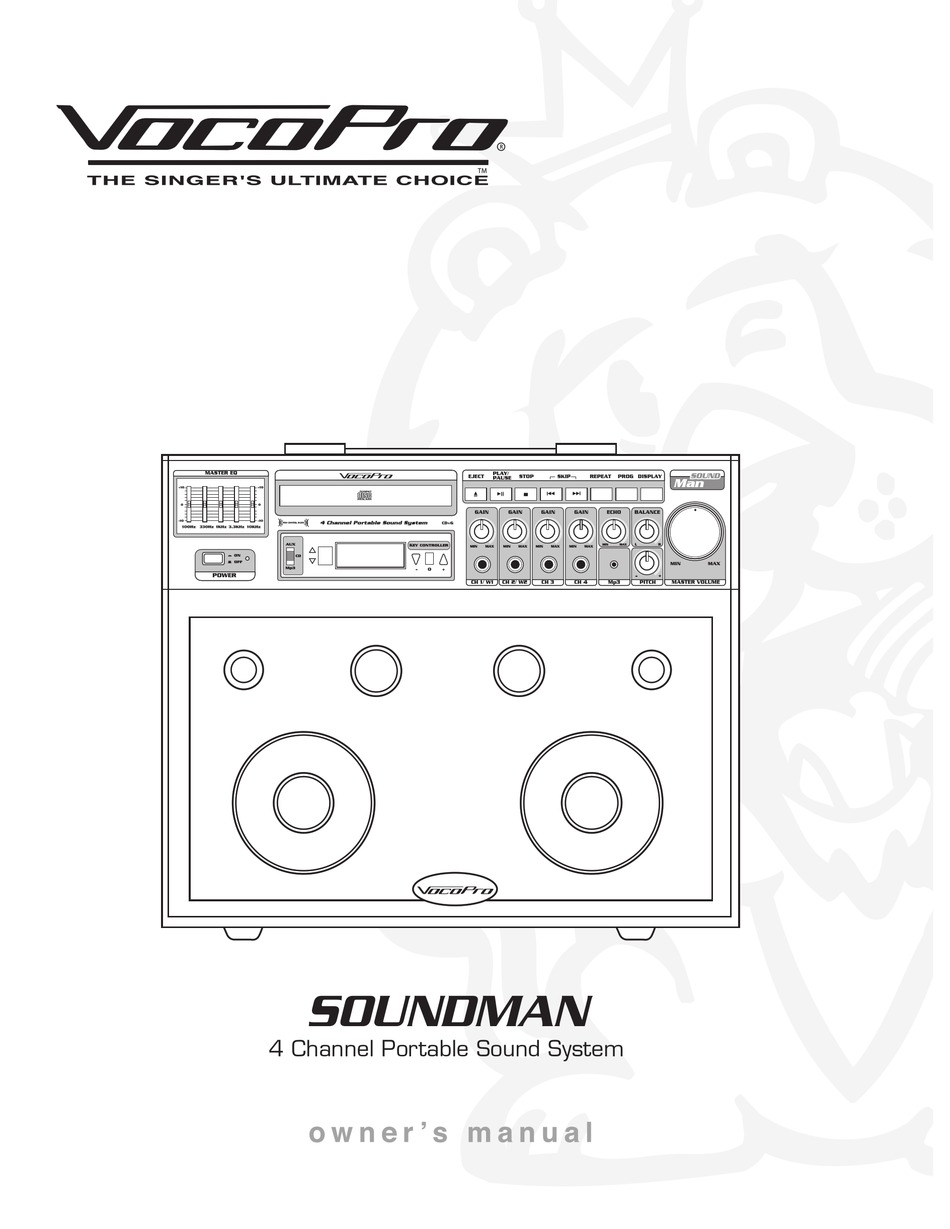

Page 1 �� SOUNDMAN 4 Channel Portable Sound System...
Page 2: Table Of Contents
Table of Contents FCC Information ............3 Listening for a Lifetime ..........4 Safety Instructions ........... 5 Welcome ............... 6 Features and Speciﬁcations ........7 Before Getting Started ..........8 Getting Started ............9 Getting Connected Connecting an Mp3 Player ........10 Connecting an External Player .......
Page 3: Fcc Information
FCC requirements. Modifications not expressly approved by 1. To ensure the finest performance, please read this Vocopro may void your authority, granted by the FCC, to manual carefully. Keep it in a safe place for future reference. use this product.
Page 4: Listening For A Lifetime
Now itʼs time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Associationʼs Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.
Page 5: Safety Instructions
Safety Instructions CAUTION 8. Ventilation - The appliance should be situated so its 9. Heat - The appliance should be situated away from CAUTION location does not interfere with its proper ventilation. For heat sources such as radiators, heat registers, example, the appliance should not be situated on a bed, stoves, or other appliances (including amplifiers) RISK OF SHOCK...
Page 6: Welcome
And while you're there don't forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, the singer’s ultimate choice. FOR YOUR RECORDS Please record the model number and serial number below, for easy reference, in case of loss or theft.
Page 7: Features And Speciﬁcations
The SOUNDMAN is the ideal choice for anyone interested in an easy to use portable P .A. system. • 5 Band EQ Easily Adjusts the Sound of Your Master Output to Suit Your Audio Needs (Music, Singing or Speech...)
Page 8: Before Getting Started
Before Getting Started Thank you for purchasing the SOUNDMAN system. The SOUNDMAN will provide years of reliability and high quality entertainment for you if used properly. Please read this manual carefully before using your SOUNDMAN to ensure best performance. Unpacking the SOUNDMAN: Carefully remove the SOUNDMAN from its carton.
Page 9: Getting Started
Getting Started Connecting the Power Cable Plug the supplied AC power cable into the AC inlet after all other connections are complete and then plug the AC power cable to an AC wall outlet. CAUTION Use the supplied AC cable. Do not use other AC power cables as doing so may result in ﬁre hazard or electrical shock. ��...
Page 10: Getting Connected
Getting Connected Connecting an Mp3 player (or other device) to the SOUNDMAN You can use the SOUNDMAN as an ampliﬁer for your Mp3 player, laptop or other audio device with a 1/8” output. �� What you will need: • 1/8” cable •...
Page 11: Connecting A Recording Device
�� Connecting to External Powered Speakers �� The SOUNDMAN has built-in speakers, and does not need �� to be connected to external speakers. However if you want to connect powered speakers to add an extra boost to your performance, you can do so using the RCA outputs on the ��...
Page 12: Connecting A Tv Or Monitor
Getting Connected, cont. Connecting a TV or Monitor to the SOUNDMAN The SOUNDMAN has a VIDEO OUTPUT jack which sends video from the disc player to TVs and other video monitor devices. NOTE: A video signal will only be present if you are playing a CD+G disc.
Page 13: Descriptions And Functions
1kHz to 10kHz make up the high to very high range. To adjust, slide the fader up to boost the frequency presence and down to cut the frequency presence. NOTE: This control only changes the output of the SOUNDMAN’s on-board speakers. It does not affect the output of the stereo RCA output on the rear panel.
Page 14 Descriptions and Functions � �� ...
Page 15: Rear Panel
Descriptions and Functions, cont. �� ...
Page 16: General Operations
2. Turn the knob clockwise to increase the volume, turn the knob counter-clockwise to decrease the volume. Programming a Custom Track Order The SOUNDMAN allows you to create a custom playlist of up to 20 tracks using the PROG button on the front panel.
Page 17: General Operations
General Operations Using Digital Key Control Digital Key Control allows you to change the musical key of disc music to ﬁt any singer’s vocal range. The Digital Key Control buttons are located on the front panel. Note that the music will be increasingly distorted with each step away from the natural key.
Page 18: Troubleshooting
Troubleshooting There is No Power • Make sure the power cord is firmly connected to the power outlet. • If using a power strip/surge-protector, make sure that it is plugged in and switched on. • Check to make sure the power switch is in the on position. •...
Page 19 Notes...
