Configuring a Device

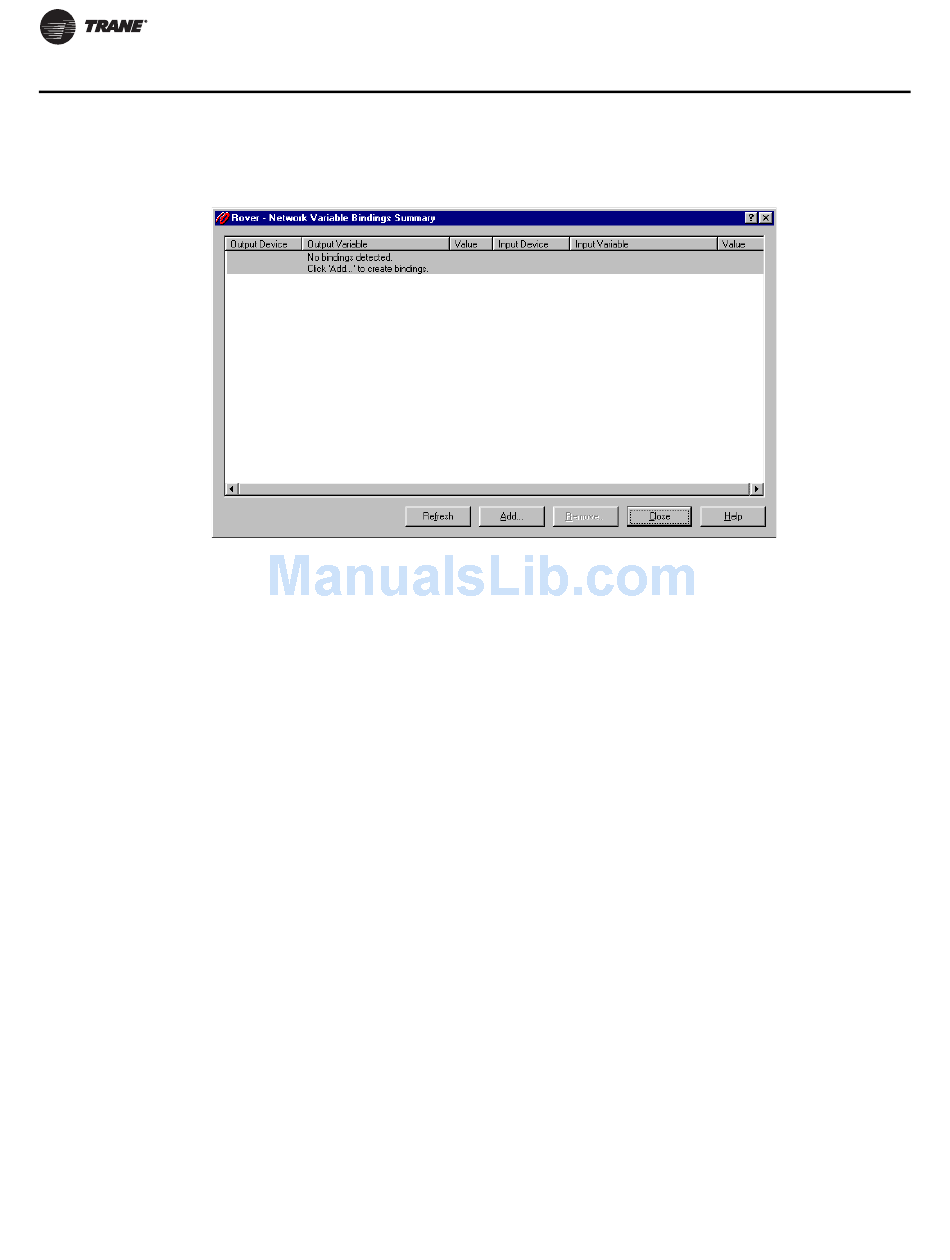

Figure 27. Network Variable Bindings Summary

Adding Network Variable Bindings

Rover must be in the active or server-connected mode to create bindings.
To add network variable bindings:
1. Click any icon in the Active Group tree.
2. From the Group menu, choose Bindings to display the Network Variable Bindings Summary
3. Click Add... to display the Add Network Variable Bindings dialog box
38
dialog box (Figure 27).
The Bindings command is available only if an icon in the Active Group tree is selected.
(Figure 28, p. 39).
