TP-Link TD-W8951ND User Manual page 41

TD-W8951ND
To configure WEP-64Bits settings, select the WEP-64Bits option from the drop-down list. The
menu will change to offer the appropriate settings. WEP-64Bits is a data privacy mechanism
based on a 64-bit shared key algorithm, as described in the IEEE 802.11g standard.
2) WEP-128Bits
To configure WEP-128Bits settings, select the WEP-128Bits option from the drop-down list.
The menu will change to offer the appropriate settings. 128-bit is stronger than 64-bit.
3) WPA-PSK
To configure WPA-PSK settings, select the WPA-PSK option from the drop-down list. The
menu will change to offer the appropriate settings. WPA-PSK requires a shared key and does
not use a separate server for authentication. PSK keys can be ASCII or Hex type.
150Mbps Wireless N ADSL2+ Modem Router User Guide

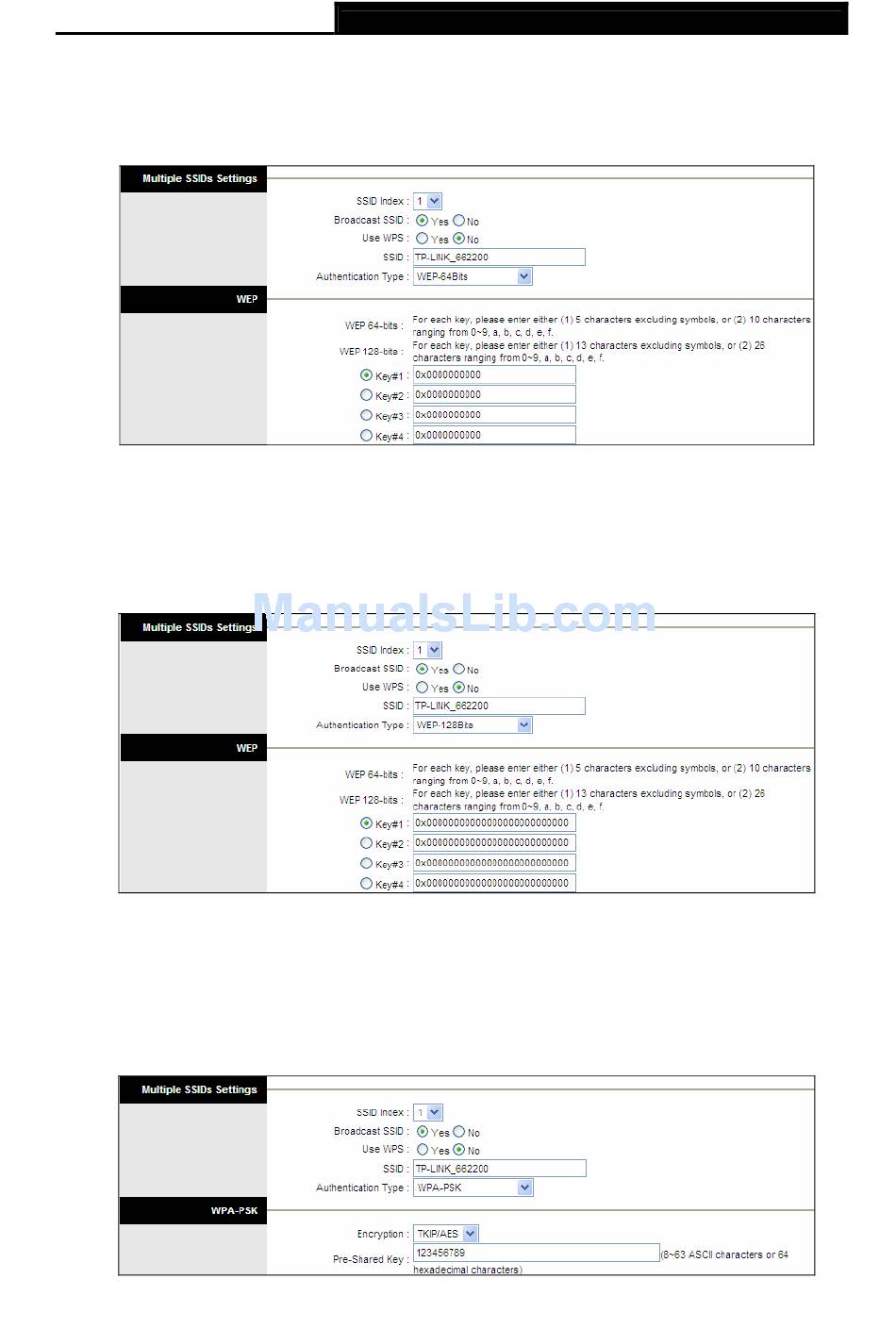

Figure 4-16
Figure 4-17
33
