TP-Link TD-W8951ND User Manual page 33

TD-W8951ND
Note:
Each IP address entered in the fields must be in the appropriate IP form, which is four IP octets
separated by a dot (x.x.x.x), such as 192.168.1.100. The Router will not accept the IP address if it
is not in this format.
3) PPPoA/PPPoE
Select this option if your ISP requires you to use a PPPoE connection. This option is typically used
for DSL services. Select Dynamic PPPoE to obtain an IP address automatically for your PPPoE
connection. Select Static PPPoE to use a static IP address for your PPPoE connection. Please
enter the information accordingly.
Servicename: Enter a name to mark current connection, or you can leave it blank.
150Mbps Wireless N ADSL2+ Modem Router User Guide

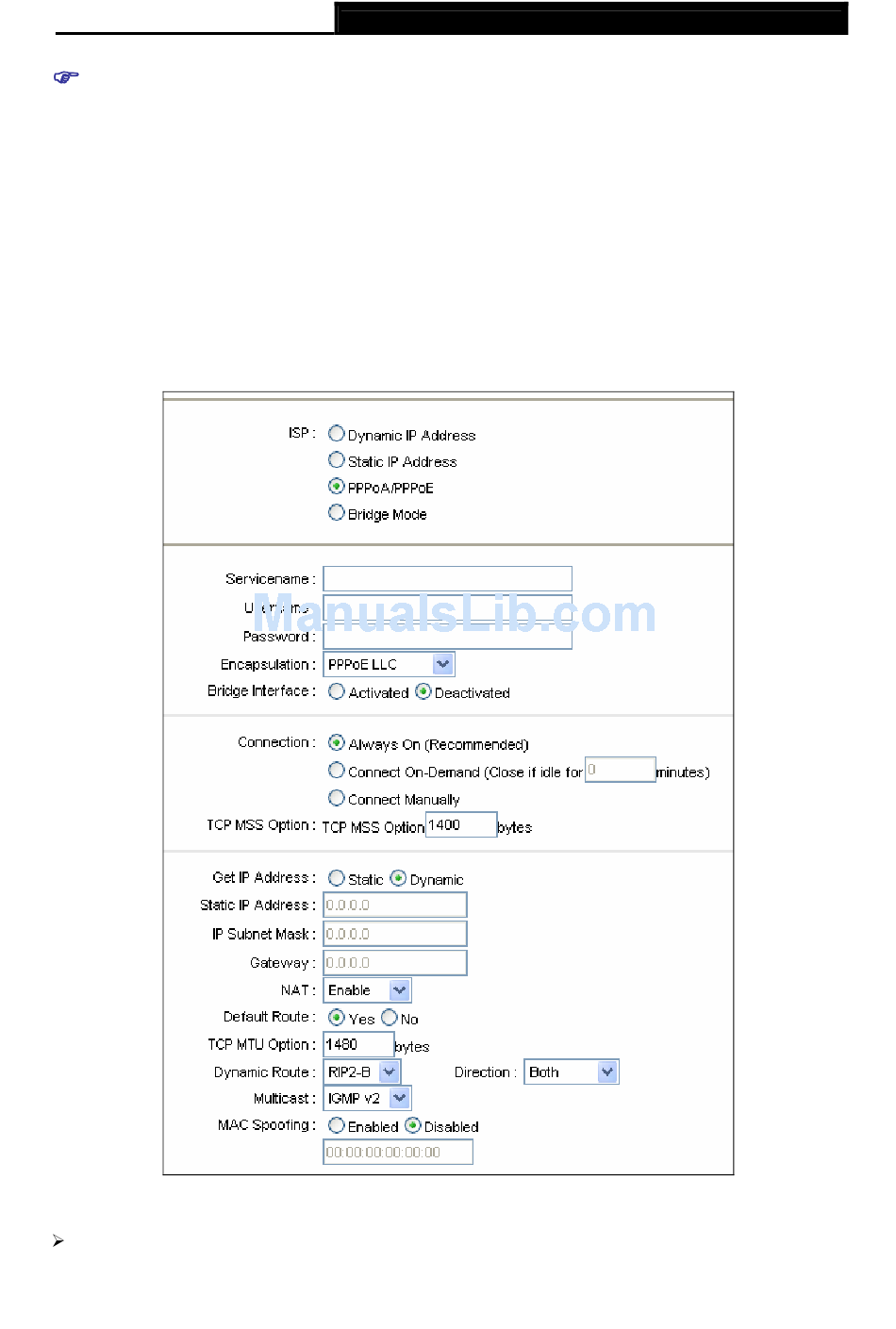

Figure 4-9
25
