DLS MR10D Owner's Manual

DLS MARINE RANGE SPEAKERS
D L S M A R I N E R A N G E S P E A K E R S

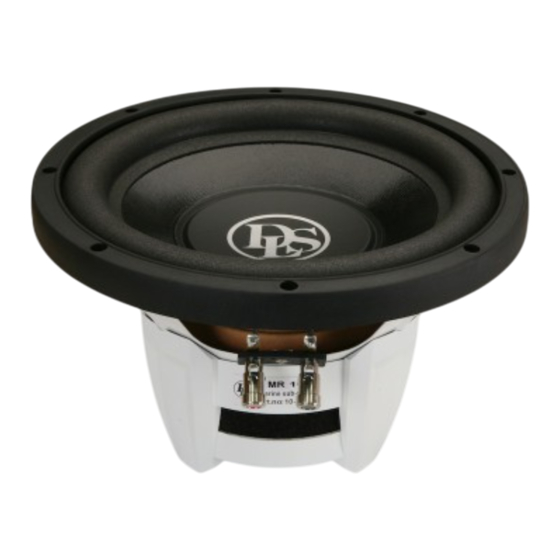

Thank you for buying a DLS subwoofer.
Install the subwoofer yourself if you feel confident
with our instructions and if you have the proper tools.
However if you feel unsure, turn over the installation job
to someone better suited to it.
This subwoofer is very flexible and can be used in "Open
Air"-installations (mounted in a baffle without a box
behind), in a vented enclosure, or a sealed enclosure.
Open air mounting
The subwoofer can be installed in a wooden panel. To
get the best sound result, the panel (baffle) should be of
strong MDF or Marine plywood, 19 mm or more. Use the
template to cut and drill.
Enclosure mounting
Build your enclosure in a stable and airtight material.
The best is MDF-board, 19 mm, or plywood. Larger
enclosures must have bracing inside to avoid vibrations.
The enclosure must be completely airtight. Use sealing
compound in all joints, also around the cable terminals.
Use the DLS MG10 grille (optional) to protect you sub-
woofer.
Break-in period
Allow the speakers to play at normal volume for at least 15-20
hours. After this time the performance is correct.
Technical Assistance
For technical assistance ask the shop where the product was sold
or the distributor in your country. You can also send an e-mail to
info@dls.se
Information can also be found on our web-site www.dls.se
We follow a policy of continuous advancement in development.
For this reason all or part of specifications & designs may be chan-
ged without prior notice.
Warranty service
This speaker is covered by warranty, depending on the conditions
in the country where it is sold. If the speaker is returned for ser-
vice, please include the original dated receipt (or a copy) with the
product.
WARNING
While this speaker is specially designed for marine applications,
they are not fully waterproof which must be taken in consideration
when doing the installation.
Avoid an installation close to any magnetic compass, the spea-
ker magnets can influence the compass needle.
More facts:
Model MR10D
Size 10" / 25 cm
Nom. power (RMS) 180 W / 360 W max
Impedance 4 ohm
Frequency range 25 Hz - 2 kHz
Magnet diameter 145 mm / 5,7"
Outer diameter 265 mm / 10,43"
Mounting depth 153 mm / 6,02"
Mounting hole 240 mm / 9,45"
Fs / Qts / Vas 39,9 Hz / 0,47 / 25,5 litres
Weight 5,5 kg / 12,13 lb
DLS Svenska AB
P.O. Box 13029
SE-40251 Göteborg, Sweden
Tel: +46 31 84 00 60
Fax: +46 31 84 40 21
E-mail: info@dls.se
www.dls.se
DLS Svenska AB 2009-02-17

OWNERS MANUAL

Safety Considerations:
Your speaker must be installed in a manner which does not
interfere with your vessel's factory installed electronic devi-
ces. You should also take the time to securely mount them
so that they do not come loose in the event of a collision or
a sudden jolt to the vessel.
- Check before drilling any holes in your vessel to make
sure that you will not be drilling through the hull, a fuel tank,
fuel line, wiring harness or other vital vessel system.
- Protect all wiring from sharp edges (metal, fibreglass,
etc.) by carefully routing them, tying them down and using
grommets and loom where appropriate.
Connection of MR10D to source:
T he subwoof er m ust be connect ed t o an exter -
n al amplifier. DLS have t wo models of mari ne
a mplifier s, MRA22 and MRA31, tha t works wel l
toget her with t his subwoof er. How to connect
d epends on what type of amplif ier
F ollow t he i nst ructions give n in t he man ual for
the amplif ier. Most amplif iers today have buil t-i n
lo w pass crossover and possibilitie s t o connect
your subwoofer in bridge mode.
F or wiring use high class speaker wir es, mi n
AWG13 (2. 5 mm ), for example DLS SC 2x2,5.
2

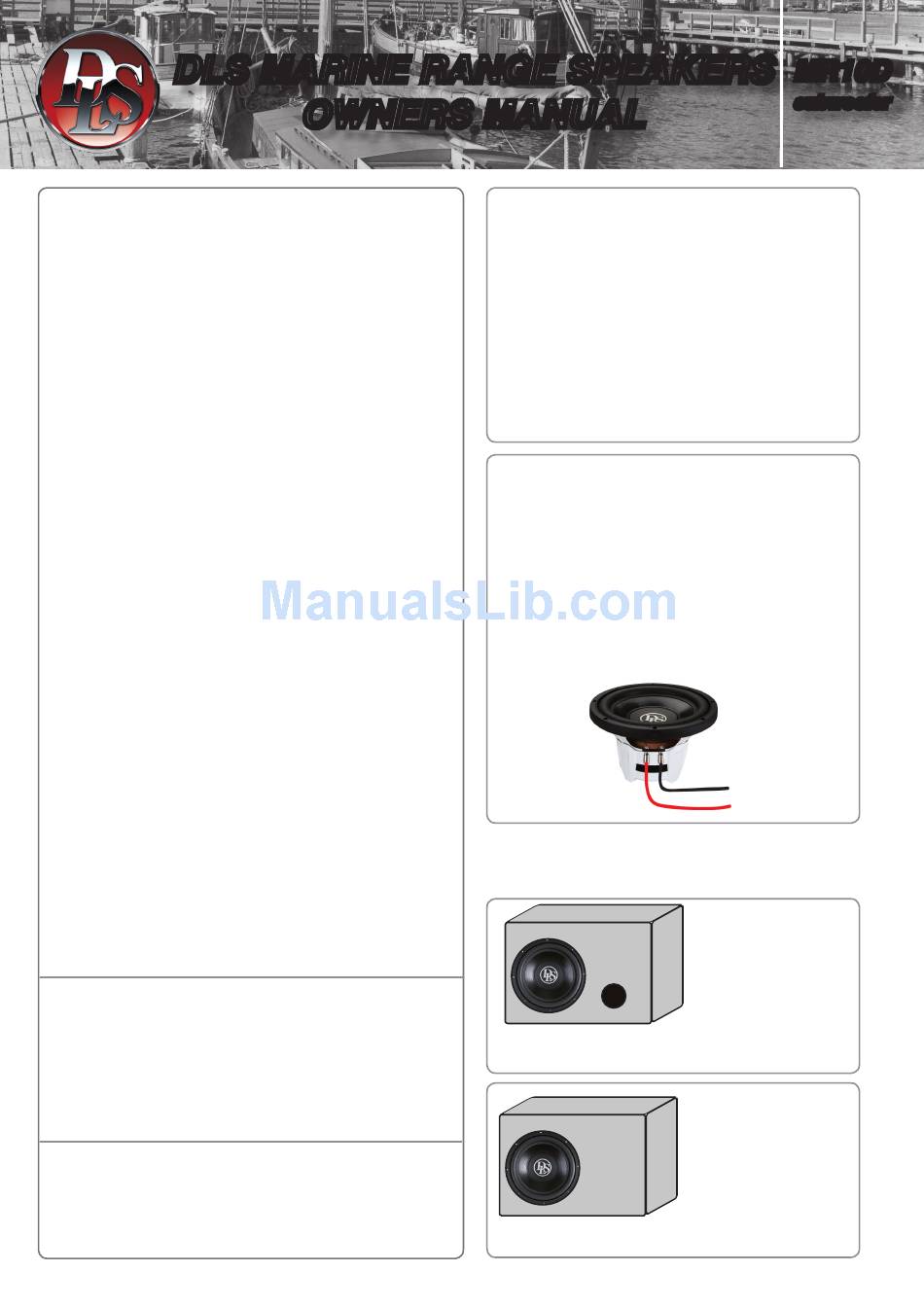

Recommended enclosures:
If you pref er to install t he subwoofer i n an encl o -
sur e we re commend t he following si zes / model s:
Vent ed enclosure 28 litr es inside volume wi th
a 3" port ( ve nt) 22 cm (8, 6") l ong.
Seal ed enclosure 20 l itr es inside volume.
Fi ll t he box up t o 75 % wit h acoust ic wool .
MR10D
subwoofer
you use.
_
+
Out er box size:
Width: 45 cm
Height: 32 cm
Depth: 27,7 cm
Mat erial: 19 mm
Outer box s ize:
Widt h: 45 cm
Height : 32 cm
Dept h: 20, 6 cm
Mater ial: 19 mm
