Owner's Manual
Model
ADAT/ANALOG Converter
ANALOG INPUT MODE
WORD
INT(44.1k)
1-2
1-4
1-8
Table of Contents
ADAT/ANALOG CONVERTER
DIGITAL MODE
POWER
ADAT
S/P DIF
STBY
OPTICAL
ON
Advertisement
Table of Contents
Related Manuals for Fostex VC-8
Summary of Contents for Fostex VC-8
-
Page 1: Table Of Contents

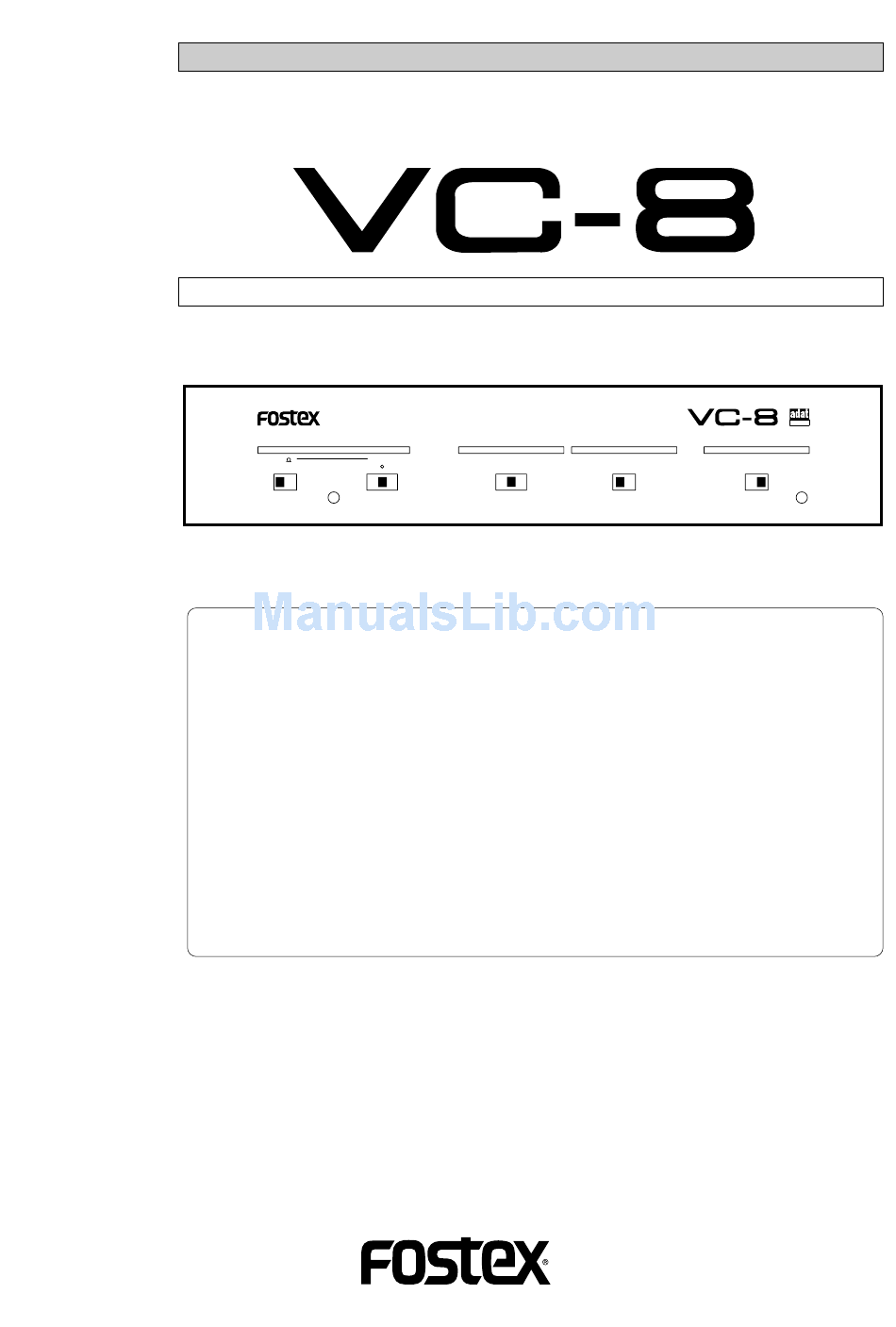

Model ADAT/ANALOG Converter CLOCK WORD OPTICAL INT(44.1k) LOCKED Table of Contents Safety Instruction...2 Introduction...3 Precautions...3 Outstanding Features...3 Names and Functions...4 Connecting Examples...5 Example at operating it as the ADAT-ANALOG converter...5 Example at operating it as the S/P DIF-ANALOG converter...8 Specifications...9 Owner’s Manual ADAT/ANALOG CONVERTER ANALOG INPUT MODE... -
Page 2: Safety Instruction
Model VC-8 Owner’s Manual CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. "WARNING" "TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE."... -
Page 3: Introduction
Before operating VC-8, it is recommended to thoroughly read this manual to insure long life of this equipment. -
Page 4: Names And Functions
INPUT jacks of the analog mixer. Refer to pages 5 and 7 for details. POWER switch/POWER LED AC power to the VC-8 is switched ON/OFF (or “standby”). If the VC- 8 is not to used for a long period, t h e A C a d a p t o r s h o u l d b e unplugged from the wall AC mains. -
Page 5: Connecting Examples
In other words, if the VC-8 had been set as the master, then VR800 (or another digital recorder) must be set as the slave, or if in the reverse situation whereas VC-8 had been set as the slave, then VR800 (or another digital recorder) must be set as the master. - Page 6 Setup of the VC-8 Note: Be sure to switch off power to the VC-8 at setup of the various selector switches. Should the switches be manipulated with power switched on, noise could be created and the VC-8 may not function correctly.
- Page 7 When connecting a 4 BUS OUT mixer Connect the mixer BUS OUT to INPUT 1~4 of the VC-8 and select [1-4] of the VC-8 ANALOG INPUT MODE switch. Signals input to ANALOG IN 1~4 will be assigned, respectively, to ADAT outputs 1~4 and 5~8.
-
Page 8: Example At Operating It As The S/P Dif-Analog Converter
Setup of the VC-8 Note: Be sure to switch off power to the VC-8 at setup of the various selector switches. Should the switches be manipulated with power switched on, noise could be created and the VC-8 may not function correctly. -
Page 9: Specifications
* Specifications and appearance are subjects to change without notice for product improvement. * Adat and the marks are trademarks of Alesis Corporation. OPTICAL Model VC-8 Owner’s Manual Specifications : RCA pin jack (x 8) : 20k or more : -10dBV... -
Page 10: Declaration Of Ec Directive
Model VC-8 Owner’s Manual This equipment is compatible with the EMC Directive (89/336/EEC) - Directive on approximation of member nation's ordinance concerning the electromagnetic compatibility and with the Low Voltage Directive (73/23/ EEC) - Directive on approximation of member nation's ordinance concerning electric equipment designed to be used within the specified voltage range.
