8288 475 000

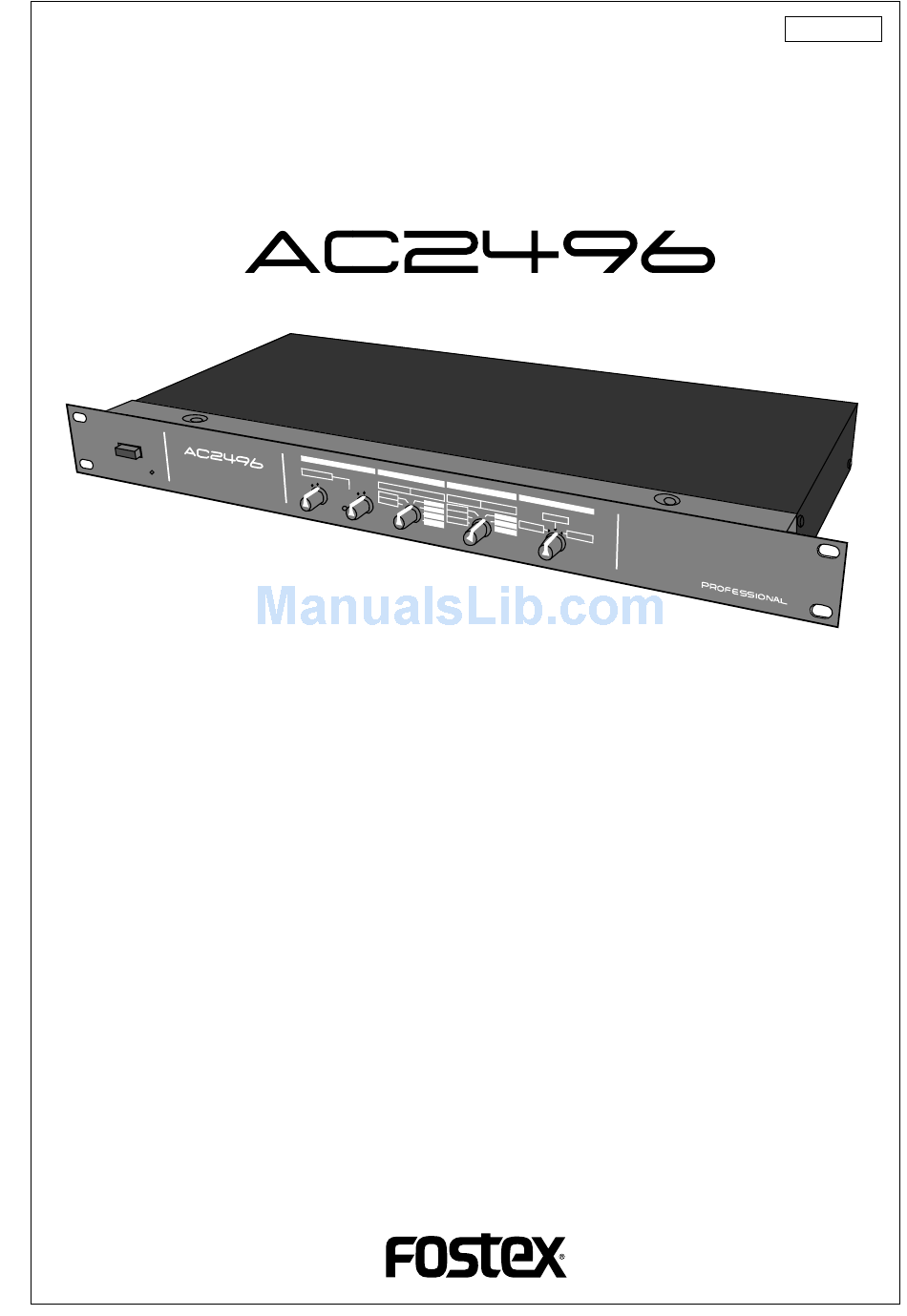

Owner's Manual
Eight channel AD Converter for 24bit / 96kHz
Introduction
The Fostex Model AC2496 is a 24 bit/96kHz compatible (compatible only to S/P DIF)
professional-use 8 channel A/D converter that converts analog input signals to digital
signals (adat or S/P DIF). It can be utilized to increase the number of inputs of Fostex
digital multirecorders D1624/D2424 and for substituting inputs of digital mixers and
personal computers.
Functions of the Model AC2496 can be extended according to the application by em-
ploying an optional Model 8355 (AES/EBU card) and Model 5045 (8 channel AD card).
When the 8355 is installed in an AC2496, it is possible to transmit 24 bit/96kHz digital
signals (8 channels) which is otherwise impossible to transmit in ADAT IN/OUT.
If a 5045 is installed, the 8 channel analog inputs of the AC2496 can be extended to 16
channels.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC2496 and is the answer not in the manual?

Questions and answers

Related Manuals for Fostex AC2496

Summary of Contents for Fostex AC2496

  • Page 1 When the 8355 is installed in an AC2496, it is possible to transmit 24 bit/96kHz digital signals (8 channels) which is otherwise impossible to transmit in ADAT IN/OUT. If a 5045 is installed, the 8 channel analog inputs of the AC2496 can be extended to 16 channels.

  • Page 2: Safety Instructions

    CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. "WARNING" "TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE."...

  • Page 3: Table Of Contents

    Connecting example when substituting the input of personal computers (audio card)...8 Setup of the AC2496...8 Using the AC2496 as a digital master...8 Extension example after installing a Model 5045...9 Connecting example for 24 track simultaneous recording...9 Setup of the AC2496...9 Extension example after installing a Model 8355...10...

  • Page 4: Names And Functions Of Each Section

    3. LOCKED indicator This will light up when the CLOCK switch is set to "WORD" and locked onto the external WORD clock. 4. Clock switch This is for setup of the AC2496 operating clock. "INT" Operates by the AC2496 crystal. "WORD"...

  • Page 5: Main Features Of The Ac2496

    The AC2496 is a professional use high quality 24 bit, 96kHz compatible 8 channel A/D converter for converting analog signals to digital signals. Conversion to digital signals can be selected for S/P DIF or adat, depending on the application. Furthermore, by installing the option, it will be possible to also output AES/EBU format digital signals so it can be used to extend the number of digital multirecorder analog inputs and to substitute the inputs of digital mixers and audio cards in personal computers.

  • Page 6: Ac2496 Without The Option Installed

    • AC2496 with the Model 5045 installed When the 5045 (8 channel AD card) is installed in the AC2496, the analog inputs will be ex- tended as shown in the schematic below enabling connection of 8 to 16 channels of input signals.

  • Page 7: Application Examples As Analog - Adat Converter

    8 - 1 adat digital signals • Setup of the AC2496 If the AC2496 is to be used as an analog-adat converter as shown in the previous example, set it up as explained in the following. When WORD clock is input from the D2424, set the CLOCK SW to "WORD"...

  • Page 8: Application Examples As An Analog-S/P Dif Converter

    • Connection example when substituting the input of personal computers (audio card) An example using an AC2496 as an analog-S/P DIF converter connected to the audio card installed in a personal computer for converting the analog audio signal to S/P DIF digital signal and recorded.

  • Page 9: Extension Example After Installing A Model 5045

    • Connecting example for 24 track simultaneous recording This is an example of installing a Model 5045 in an AC2496. Twenty four channels of analog signals can then be recorded simultaneously. In this example, analog signals (1-8) from analog mixer 1 are input to ANALOG INPUT 1-8, while signals from analog mixer 2/3 (1-8, 9-16) connected to the AC2496 are converted to adat digital signals and applied to DATA INPUT 9-16 and 17-24.

  • Page 10: Extension Example After Installing A Model 8355

    Extension example after installing a Model 8355 When the optional Model 8355 (8ch AES/EBU card) is installed, the AC2496 can be utilized as an analog-AES/EBU converter. Unlike the previous example, this setup can output 24 bit 88.2kHz/24 bit 96kHz digital signals.

  • Page 11: Specifications (Ac2496 / 5045 / 8355)

    Input/output: Reference level: • ANALOG input (AC2496 / 5045) Connector Input Impedance Standard Input Level • DIGITAL output (AC2496 / 5045) Connector Output Format • AES/EBU output (8355) Connector Output Format • WORD input (AC2496) Connector Input Level • WORD output (AC2496)

  • Page 12: Fostex Distributors List In Europe

    FOSTEX DISTRIBUTORS LIST IN EUROPE * Including non-EU countries. * underlined: contracted distributors (as of August, 2000) <AUSTRIA>...
