P 1 8 0 0
Bracket, Mounts, and Poles
www.videolarm.com
Installation and Operation Instructions
81-IN5233
12-21-2011
Before attempting to connect or operate this product, please read these instructions completely.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the p1800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moog Videolarm p1800

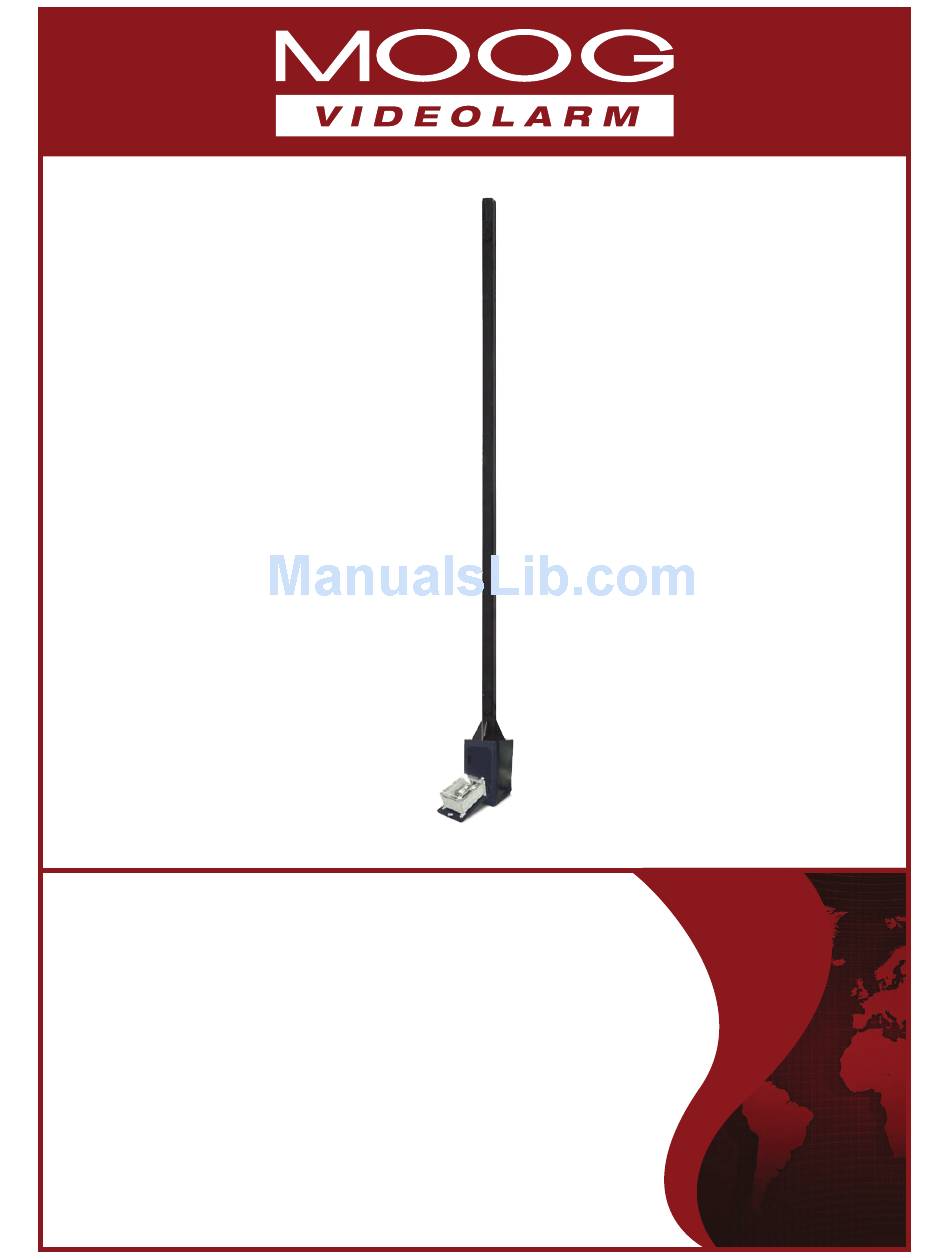

  • Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved P 1 8 0 0 Bracket, Mounts, and Poles www.videolarm.com Installation and Operation Instructions 81-IN5233 12-21-2011 Before attempting to connect or operate this product, please read these instructions completely.
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
  • Page 3: Terms And Conditions

    If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
  • Page 4: Standard Installation Procedure

    2. To help reinforce the concrete foundation, place (12) 1/2" diameter x 32" long STANDARD INSTALLATION PROCEDURE Reinforcement Bars ("rebar") as shown in Figure 2. Use suitable preparation methods to place the rebar. INCLUDES MODELS: P1800 Please read these instructions carefully before proceeding, 24" 6"...
  • Page 5 3. FOR ANCHOR BOLT INSTALLATIONS: Pour concrete per manufacturer's directions, making sure that the wiring conduit is in the center of the pad. See Figure 3 for dimensions of the bolt pattern and suspend appropriate bolts in the concrete around the wiring conduit. Leave 2" to 3" of the Bolts protruding above the pad.
  • Page 6 5. Place the pole on the pad with the holes on the Transformer Base aligned with the bolts of the anchor bolts or anchor jig and slowly lift the pole into the upright position (Figure 7). CAUTION: Pull all slack in the wiring as you lift the pole into position to keep from pinching and possible damage.
  • Page 7 Wiring Inside the NEMA Box NOTE: This unit MUST be grounded. If you do not have ground on the incoming power, you MUST run appropriate ground out from the NEMA box • Run 115 VAC power into the NEMA box through the conduit opening closest to the power transformer. Make the appropriate connections. •...
  • Page 8 NEMA Box Wiring Diagram Video output Neutral Ground 115 VAC 24 VAC power Incoming Power User Wiring Connections pre-connected RX Control Data ORANGE RX Control Data YELLOW TX Control Data GREEN TX Control Data BLUE Alarm GRAY Alarm...
  • Page 9 Anchor Jig Assembly 4. Before using the Anchor Jig verify that the center to center dimensions between the bolts are even (Figure 4). If not, adjust accordingly. Firmly tighten all Hex Nuts. Anchor Jig Kit Parts List Single Straps (4) Cross Strap (1) 3/4"...
  • Page 10 Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators.
