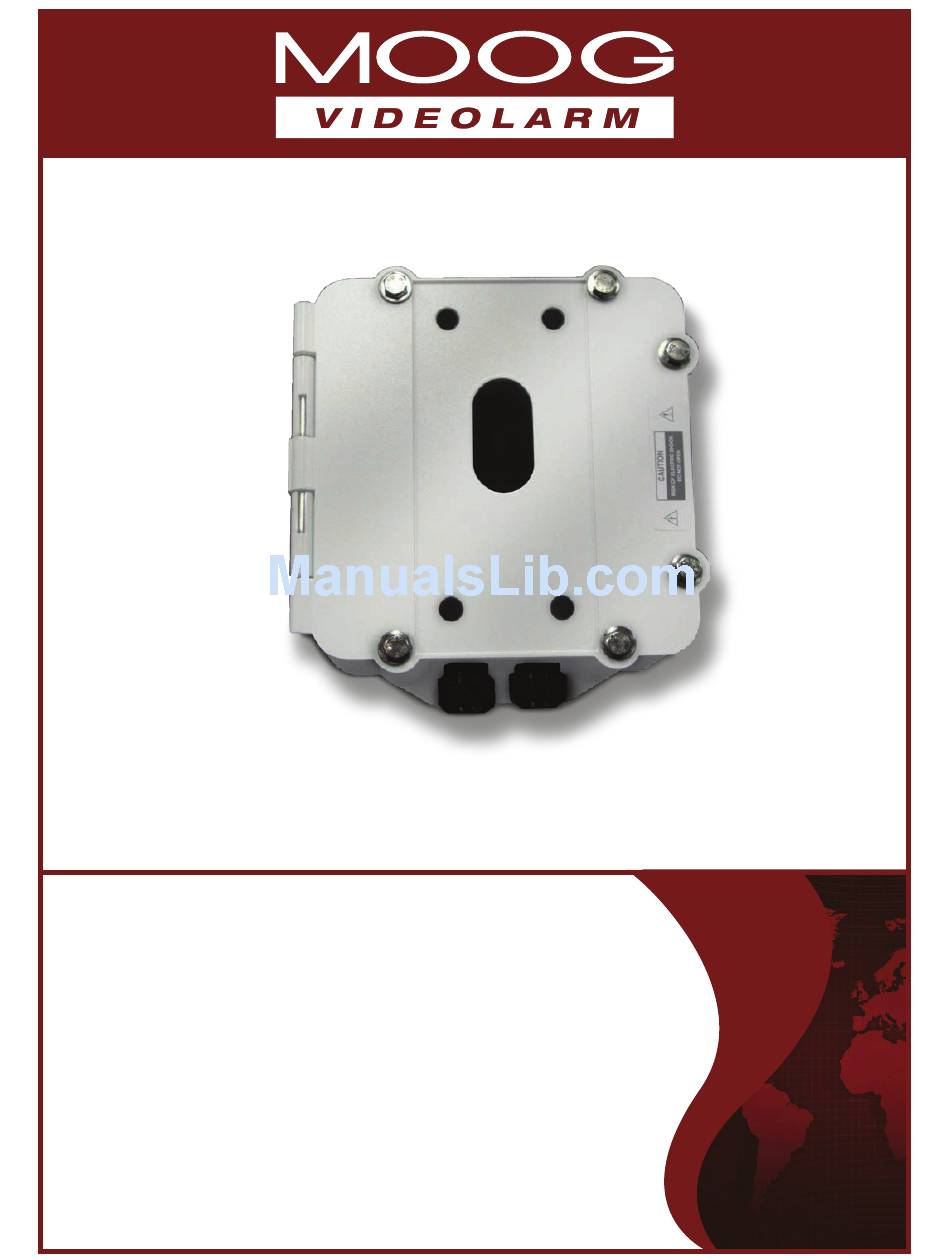

P B 2 4 B B
Power Box with Battery Backup
Installation and Operation Instructions for the following model:
PB24BB
Rugged cast aluminum power box PB24 pluss battery backup.
Pole mounting clips included.
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5408
12-22-2011
Advertisement
Table of Contents
Related Manuals for Moog Videolarm PB24BB
Summary of Contents for Moog Videolarm PB24BB
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved P B 2 4 B B Power Box with Battery Backup www.videolarm.com Installation and Operation Instructions for the following model: PB24BB Rugged cast aluminum power box PB24 pluss battery backup. Pole mounting clips included. 81-IN5408 12-22-2011 Before attempting to connect or operate this product, please read these instructions completely.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). - Page 3 If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
-
Page 4: Electrical Specifications
Electrical Specifications Contents of Box PB24BB Input Power: 120 VAC/240VAC 1A/.5A Power Consumption: 1Amp (120 Watts) at 120 VAC Power Output: 84 VA at 24 VAC 52 Watts Heater/Blower 32 Watts Camera Power English An all pole main switch with a contact of at least 3mm in each pole shall be incorporated in the electrical installation of the building. - Page 5 Wall Mounting: Attach unit securely with (4) The power box may be pole mounted with 3/8” or 8mm hardware (not supplied). the pole support clips. • La pared que monta la caja de la energía es posible, • Ésta es la plantilla del montaje para la caja de la pero el hardware no es incluido.
- Page 6 INPUT: (120VAC or 240VAC) 220-240VAC INPUT 110-120VAC INPUT 240Vac 120Vac Input Main Input Switch Line (L) and Neutral (N) wires should be connected as marked on the board and plugged into the corresponding voltage for the input single phase. Los alambres de la línea (l) y del hilo neutro (n) se deben conectar según lo marcados en el tablero y tapa- dos en el voltaje correspondiente para la monofásico de la entrada.
- Page 7 The battery backup system is designed to be When used with the FDW75C2N or used only with 12VDC Cameras. RHW75C2N remove Dome from housing. • El sistema de reserva de batería se diseña para ser utilizado • Cuando está utilizado con el FDW75C2N o el RHW75C2N solamente con las cámaras fotográficas 12VDC.
-
Page 10: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
