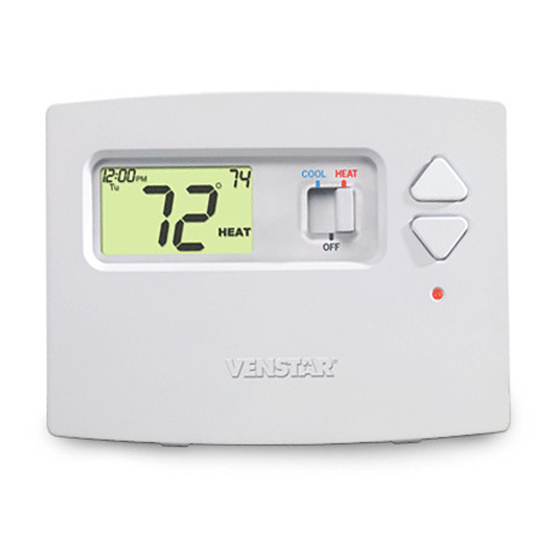

Venstar T0130 Owner's Manual

Digital -residential thermostat non-programmable
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
Digital
Digital
Thermostat
Thermostat
Stages: 1-Heat, 1-Cool
Heat Pump Compatible
Battery or System Powered
Fahrenheit or Celsius
Fully Electronic
Bi-Color LED
(when system powered)
Use with most Air Conditioning & Heating Systems including: 1 Stage
Electric Cooling & 1 Stage Gas Heating, Heat Pump, Electric or Hydronic Heat.
OWNER'S
OWNER'S
MANUAL
MANUAL
Venstar Inc. 05/08
residential
THERMOSTAT
T0130
NON-
NON-
PROGRAMMABLE
PROGRAMMABLE
up to
1-heat
up to
1-heat
& 1-cool
& 1-cool
HEAT
HEAT
COOL
PUMP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T0130 and is the answer not in the manual?

Questions and answers

Crystal Solis
February 15, 2025

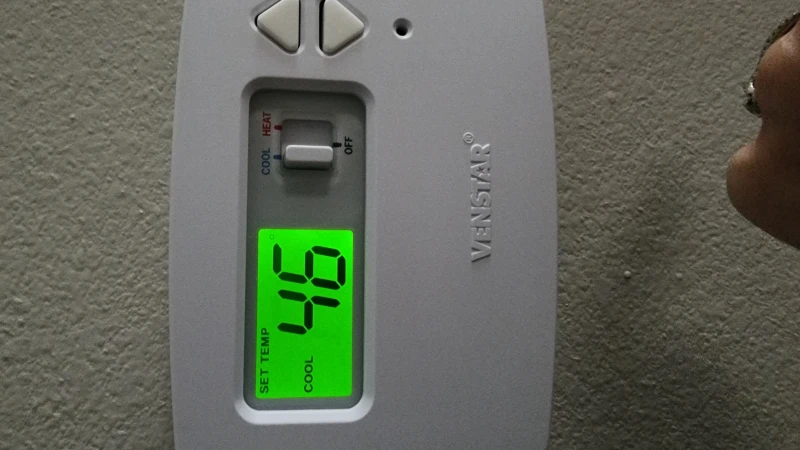

My thermastat is at 40 ° how can i change it back to normal

User image 67b117303d836
1
1 comments:
Mr. Anderson
February 15, 2025

To change the temperature setting on a Venstar T0130 thermostat from 40° to a normal level, use the WARMER button to increase the set temperature. Adjust it until it reaches the desired level. If using cooling mode, ensure the set temperature is below the room temperature. If using heating mode, set the temperature above the room temperature.

This answer is automatically generated

0
Sue
April 11, 2025

I think my thermostat is on Centigrade not Fahrenheit how do I change it

User image 67f96da2b5f96
0
1 comments:
Mr. Anderson
April 11, 2025

To change the temperature display from Centigrade to Fahrenheit on a Venstar T0130 thermostat, press and hold the COOLER and WARMER buttons at the same time until the temperature display switches to degrees Fahrenheit. Repeat the process to switch back to Celsius.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Venstar T0130

Summary of Contents for Venstar T0130

  • Page 1 Fahrenheit or Celsius Fully Electronic Bi-Color LED (when system powered) Use with most Air Conditioning & Heating Systems including: 1 Stage Electric Cooling & 1 Stage Gas Heating, Heat Pump, Electric or Hydronic Heat. OWNER’S OWNER’S MANUAL MANUAL Venstar Inc. 05/08...

  • Page 2: Table Of Contents

    OWNER'S MANUAL T0130 Contents Page # Safety Warnings Front Panel Display Normal Operation Fahrenheit or Celsius Preparation Remove Old Thermostat Battery Replacement Wire Connections Jumper Configuration Test Operation Troubleshooting Warranty Page 2...

  • Page 3: Safety Warnings

    OWNER'S MANUAL T0130 Safety Warnings P/N T0130 CAUTION Follow Installation Instructions carefully. DISCONNECT POWER TO THE HEATER - AIR CONDITIONER BEFORE REMOVING THE OLD THERMOSTAT AND INSTALLING WARNING THE NEW THERMOSTAT. CAUTION The two Alkaline “AA” batteries must be replaced at least once every 12 months to ensure proper operation.

  • Page 4: Location Of Controls

    OWNER'S MANUAL T0130 Location of Controls MODE SWITCH DISPLAY Cool, Off or Heat COOLER & WA R M E R BUTTONS BI-COLOR LED Heat or Cool demand indicator when system powered: Red = Heat Green = Cool FAN SWITCH BATTERY...

  • Page 5: Display

    OWNER'S MANUAL T0130 Display SET TEMP HEAT COOL BATTERY Heat and Cool indicators. In normal operation, Heat or Cool appears, depending on the Mode Switch position. When heat or cool is energized, the Heat or Cool indicator will flash. If the thermostat is system powered the bi-color LED will also illuminate (red for heating and green for cooling).

  • Page 6: Normal Operation

    OWNER'S MANUAL T0130 Normal Operation MODE SWITCH COOLER & Cool, Off or Heat WA R M E R BUTTONS HEAT FAN SWITCH On or Auto Operation Select Cool or Heat with the Mode Switch. Normally leave the fan switched to Auto.

  • Page 7: Fahrenheit Or Celsius

    OWNER'S MANUAL T0130 Fahrenheit or Celsius MODE SWITCH COOLER & Cool, Off or Heat WA R M E R BUTTONS HEAT Operation Select Off with the Mode Switch. Press and hold the COOLER and WARMER buttons at the same time until the temperature is displayed in degrees Celsius.

  • Page 8: Preparation

    OWNER'S MANUAL T0130 Preparation Proper installation of the thermostat will be HEAT accomplished by following these step by step instructions. If you are unsure about any of these steps, call a qualified technician for assistance. These tools will be required:...

  • Page 9: Remove Old Thermostat

    OWNER'S MANUAL T0130 Remove & Replace Old Thermostat Remove the cover of the old thermostat. HEAT If it does not come off easily check for screws. Loosen the screws holding the thermostat HEAT base or subbase to the wall, and lift away.

  • Page 10: Battery Replacement

    OWNER'S MANUAL T0130 Battery Replacement The batteries are easily accessible from the battery slot located on the front of the thermostat (fig. 1). To open the battery slot, press down on the battery cover (fig. 1) and pull out (fig. 2).

  • Page 11: Wire Connections

    OWNER'S MANUAL T0130 Wire Connections If the terminal designations on your old HEAT thermostat do not match those on the new thermostat, refer to the chart below or the wiring diagrams that follow. Install on the Wire from the new thermostat...

  • Page 12: Sample Wiring Diagrams

    OWNER'S MANUAL T0130 Sample Wiring Diagrams Gas or Electric Heat 4 Wire, 1 Stage Cooling, 1 Stage Heating Residential Gas or Electric Heat, Electric Cool, split systems & package units. For jumper configuration see pages 18 and 19. Factory installed...
  • Page 13 OWNER'S MANUAL T0130 Sample Wiring Diagrams Gas or Electric Heat 4 Wire, 1 Stage Cooling, 1 Stage Heating-Heat Pump with O reversing valve. Residential Heat Pumps, split systems & package units, with no auxiliary heat. For jumper configuration see page 20.
  • Page 14 OWNER'S MANUAL T0130 Sample Wiring Diagrams Gas or Electric Heat 4 Wire, 1 Stage Cooling, 1 Stage Heating-Heat Pump with B reversing valve. Residential Heat Pumps, split systems & package units, with no auxiliary heat. For jumper configuration see page 21.
  • Page 15 OWNER'S MANUAL T0130 Sample Wiring Diagrams Gas or Electric Heat 3 Wire, 1 Stage Heating Residential Gas or Electric Heat units with a separately controlled fan. For jumper configuration see pages 18 and 19. Factory installed Common wire optional jumper between...
  • Page 16 OWNER'S MANUAL T0130 Sample Wiring Diagrams Gas or Electric Heat 2 Wire, 1 Stage Gas Heat Residential Gas or Millivolt units. For jumper configuration see page 18. Factory installed Common wire optional jumper between RC and RH 2 Conductor 18 to 22 gauge unshielded cable from the thermostat to the equipment.
  • Page 17 OWNER'S MANUAL T0130 Sample Wiring Diagrams Gas or Electric Heat Dual Transformer 5 Wire, 1 Stage Cooling, 1 Stage Heating Residential Gas or Electric Heat, Electric Cool, split systems & package units. For jumper configuration see pages 18 and 19.

  • Page 18: Jumper Configuration

    T0130 Jumper Configuration Cooling and Gas Heating Residential Gas, Electric Cool, split systems & package units. PCB: 00597 Rev. AA PCA: 00569 Rev. 1000 1000 MODEL: T0130 082100009 1000 GAS/ELEC ELEC/HP BAT- BAT+ GAS/ELEC GAS/ELEC ELEC/HP Jumper #1 (J1) should be set for GAS and...
  • Page 19 OWNER'S MANUAL T0130 Jumper Configuration Cooling and Electric Heating Residential Electric Heat units with a separately controlled fan. PCB: 00597 Rev. AA PCA: 00569 Rev. 1000 1000 MODEL: T0130 082100009 1000 GAS/ELEC ELEC/HP BAT- BAT+ ELEC/HP GAS/ELEC GAS/ELEC ELEC/HP Jumper #1 (J1) should be set for ELEC/HP and...
  • Page 20 Cooling and Heating - Heat Pump with O reversing valve. Residential Heat Pumps, split systems & package units, with no auxiliary heat. PCB: 00597 Rev. AA PCA: 00569 Rev. 1000 1000 MODEL: T0130 082100009 1000 GAS/ELEC ELEC/HP BAT- BAT+ ELEC/HP...
  • Page 21 Cooling and Heating - Heat Pump with B reversing valve. Residential Heat Pumps, split systems & package units, with no auxiliary heat. PCB: 00597 Rev. AA PCA: 00569 Rev. 1000 1000 MODEL: T0130 082100009 1000 GAS/ELEC ELEC/HP BAT- BAT+ ELEC/HP...

  • Page 22: Test Operation

    OWNER'S MANUAL T0130 Test Operation Turn on the power to the Heating/Air HEAT Conditioning system. On the thermostat, slide the Mode Switch HEAT to HEAT. Press the COOLER or WARMER button until the set temperature is 10 degrees above room temperature. The HVAC unit should energize in the heating mode (Page 6).

  • Page 23: Trouble Shooting

    OWNER'S MANUAL T0130 Trouble Shooting SYMPTOM: The slide switches on the thermostat HEAT are very difficult to move. CAUSE: The backplate of the thermostat is screwed too tightly into a wall that is not perfectly flat. REMEDY: Loosen the screws holding the thermostat into the wall.
  • Page 24 OWNER'S MANUAL T0130 Trouble Shooting SYMPTOM: The Heating does not attempt HEAT to turn on. CAUSE: The heating setpoint is set too high, the Mode Switch is not set for Heat, or the batteries are too weak. REMEDY: Consult the Normal Operation section in this manual to: Raise the heating setpoint (Page 6).

  • Page 25: Warranty

    OWNER'S MANUAL T0130 Warranty One-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If it appears within one year from the date of original installation, whether or not actual use begins on that date, that the product does not meet this warranty, a new or remanufactured part, at the manufacturer’s sole option to replace any defective part, will be...
