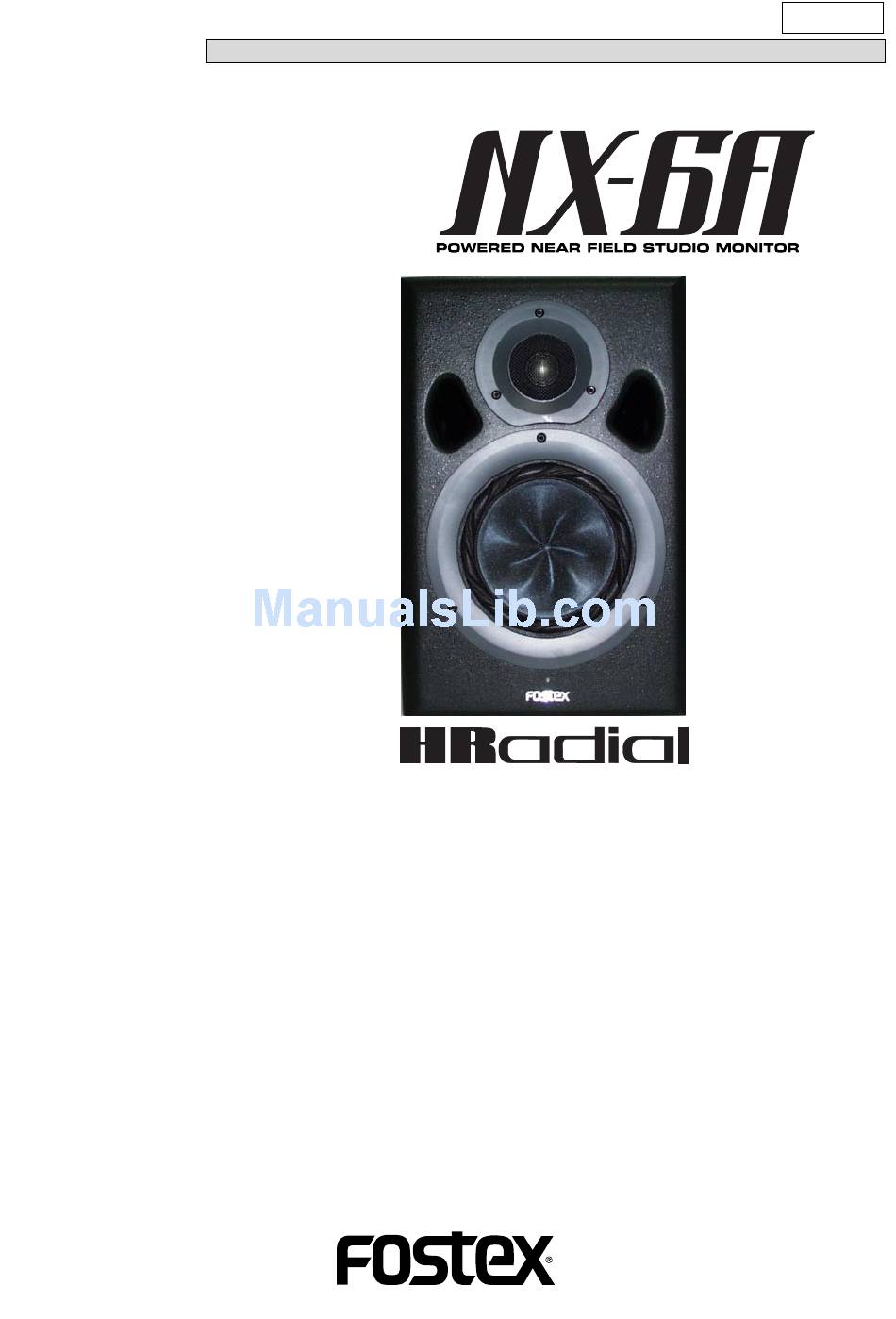

Owner's Manual
Model
Introduction
Thank you very much for purchasing the Fostex Model NX-6A.
The NX-6A is a nearfield studio monitor with a built-in power amplifier. It delivers a
musical and highly accurate sound, allowing you to check a sound thoroughly to a fine
nuance.
The NX-6A employs a 160-mm woofer (shielded type) which adopts the latest diaphragm
technology and a 20-mm hard dome tweeter (shielded type) which features a magne-
sium diaphragm. It features bi-amplifier design (60W for the woofer, 40W for the tweeter).
In the enclosure, HP sound reflectors are installed for natural low frequency reproduc-
tion. Thanks to the time-alignment construction on the buffle surface, as well as the
flush surface design, each sound image is pinpointed accurately.
From dynamic low frequencies to natural and smooth high frequencies, the NX-6A re-
produces the whole frequency range faithfully. It is the ideal monitor for recording
studios.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NX-6A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fostex NX-6A

Summary of Contents for Fostex NX-6A

  • Page 1 Thank you very much for purchasing the Fostex Model NX-6A. The NX-6A is a nearfield studio monitor with a built-in power amplifier. It delivers a musical and highly accurate sound, allowing you to check a sound thoroughly to a fine nuance.

  • Page 2: Safety Instructions

    NX-6A (Powered Near Field Studio Monitor) CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

  • Page 3: Important Safety Instructions

    Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. NX-6A (Powered Near Field Studio Monitor) Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
  • Page 4 NX-6A (Powered Near Field Studio Monitor) • In the event of smoke or odors, immediately turn off the power switch and remove the AC plug from the outlet. Continued use under such conditions will result in fire and/or electrical shock.
  • Page 5 FEM model analysis to determined the optimum bonding points. The UDR tan- gential edge is adopted to the edge of the NX-6A woofer. • Tweeter featuring magnesium diaphragm The 20-mm hard dome tweeter employs the magnesium dia- phragm.

  • Page 6: Names And Functions

    7. Heatsink <CAUTION>: If you use the NX-6A for a long time, the heatsink gets extremely hot. Do not touch the heatsink in such a con- dition. 8. Power switch Turn the power on or off.

  • Page 7: Maintenance Precautions

    • Optimal listening point and setting To get the best of the NX-6A performance, set them at the appropriate height so that the middle point between the center positions of the tweeter and woofer matches the listener’s ear height.

  • Page 8: Block Diagram

    NX-6A (Powered Near Field Studio Monitor) INPUT (UNBAL) -10dBV INPUT (BAL) +4dBu 1: GND 2: HOT 3: COLD <Speakers> Enclosure system : 2-way bass-reflex system Drivers : 160 mm woofer : 20mm hard dome tweeter Impedance : Woofer/6 , Tweeter/8 Reproduction freq.

  • Page 9: Declaration Of Ec Directive

    FOSTEX CO. 3-2-35, Musashino, Akishima-shi, Tokyo, Japan 196-0021 FOSTEX AMERICA 13701, Cimarron Avenue, Gardena, CA 90249, U. S. A. NX-6A (Powered Near Field Studio Monitor) <ITALY> NAME: Proel S. p. A. ADD: Zona Via Alla Ruenia, 37/43 64027 - Sant'Omero...
