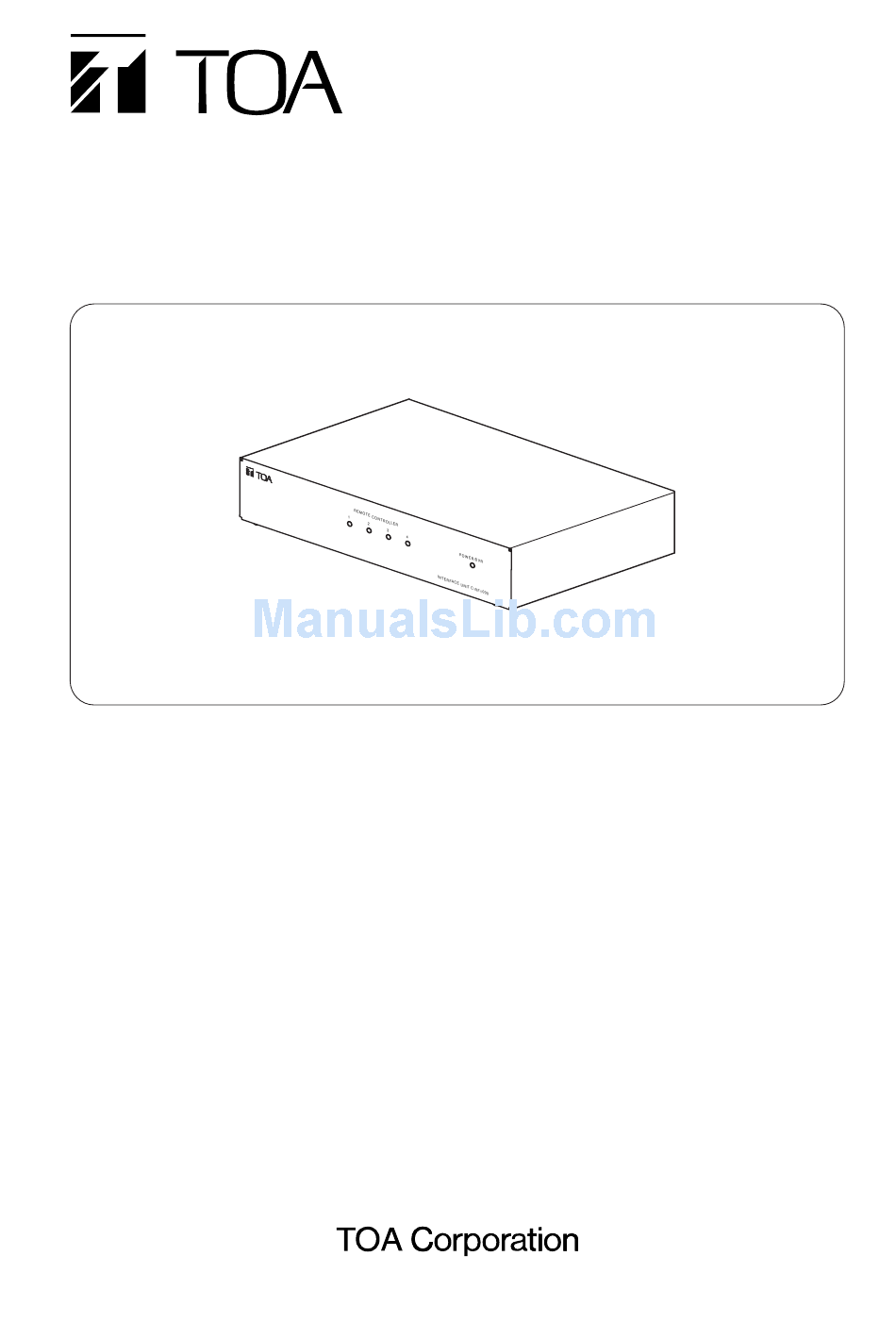

INTERFACE UNIT
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS .......................... 2
2. GENERAL DESCRIPTION ........................ 3
3. FEATURES ................................................ 3
4. HANDLING PRECAUTIONS ..................... 3
Front panel .................................................. 4
Rear panel................................................... 4
6.1. System Example .................................. 5
6.2. About connections ................................ 6
Thank you for purchasing TOA's Interface Unit. Please carefully follow the instructions in this manual to
ensure long, trouble-free use of your equipment.
OPERATING INSTRUCTIONS
to the Remote controller or PC ......... 6
to the Digital Video Recorder ............. 6
7. RACK MOUNTING ..................................... 7
8. SPECIFICATIONS ...................................... 8
Accessory .................................................... 8
C-RF1000
Advertisement
Table of Contents
Related Manuals for Toa C-RF1000
Summary of Contents for Toa C-RF1000
- Page 1 Rear panel........... 4 Accessory ............ 8 6. CONNECTIONS 6.1. System Example ........5 6.2. About connections ........ 6 Thank you for purchasing TOA's Interface Unit. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
-
Page 2: Safety Precautions
• To prevent a fire or electric shock, never open the unit case nor modify the unit as there are high voltage components inside the unit. Refer all servicing to your nearest TOA dealer. • Do not place cups, bowls, or other containers of liquid or metallic objects on top of the unit. If they accidentally spill into the unit, this may cause a fire or electric shock. -
Page 3: General Description
FCC to operate this equipment. 2. GENERAL DESCRIPTION The C-RF1000 Interface Unit is used to expand the C-RM1000 Remote Controller when using 2 to 4 Remote Controllers to operate the C-DR091 or C-DR161 Series Digital Video Recorder. -
Page 4: Front Panel
5. NOMENCLATURE AND FUNCTIONS [ Front panel ] REMOTE CONTROLLER POWER/DVR INTERFACE UNIT C-RF1000 (1) Power Indicator [ POWER/DVR ] (2) Remote Controller Communications Indicator Lights when power is supplied from the Digital [ 1 - 4 ] Video Recorder, and flashes during communi- Flashes when the Remote Controller input cations with the Digital Video Recorder. -
Page 5: System Example
DIGITAL VIDEO RECORDER C-DR161 RS-485 ARCHIVE KEY LOCK FAILURE RS-485 HD FULL DIGITAL VIDEO RECORDER C-DR161 Supplied modular cable (3 m (9.8 ft)) Interface unit C-RF1000 Do not connect this jack to telephone line. REMOTE CONTROLLER INPUT-B RS-232C DVR CONTROL OUTPUT-A RS-232C RS-485... -
Page 6: When Connecting The C-Rf1000 To The Remote Controller Or Pc
6.2. ABOUT CONNECTIONS 6.2.1. When connecting the C-RF1000 to the Remote controller or PC The maximum cable length is 1.2 km (3,937 ft) for each distance between the Remote Controller and the Interface Unit. Interface unit C-RF1000 Screwless terminal Remote controller 1... -
Page 7: Rack Mounting
To mount the unit in an equipment rack ( Use the optional MB-15B-BK Half Width Blank Panel. ) 3 x 14 self tapping screw * 3 x 14 self tapping screw * Blank panel * C-RF1000 3 x 14 self tapping screw * R /D N IT... -
Page 8: Specifications
8. SPECIFICATIONS Power Source 12 V DC (supplied from the Digital Video Recorder ) Current Consumption 100 mA Digital Video Recorder RS-485, RJ11 (6P6C) Control (When the included 3-meter (9.8 ft) modular cable is used) Remote Control RS-485, screwless connector (3 pins) x 4 channels External Control Terminal RS-232C, D-sub connector (9P, male) Transfer Speed Setting...
