Page 1: Operating Instructions

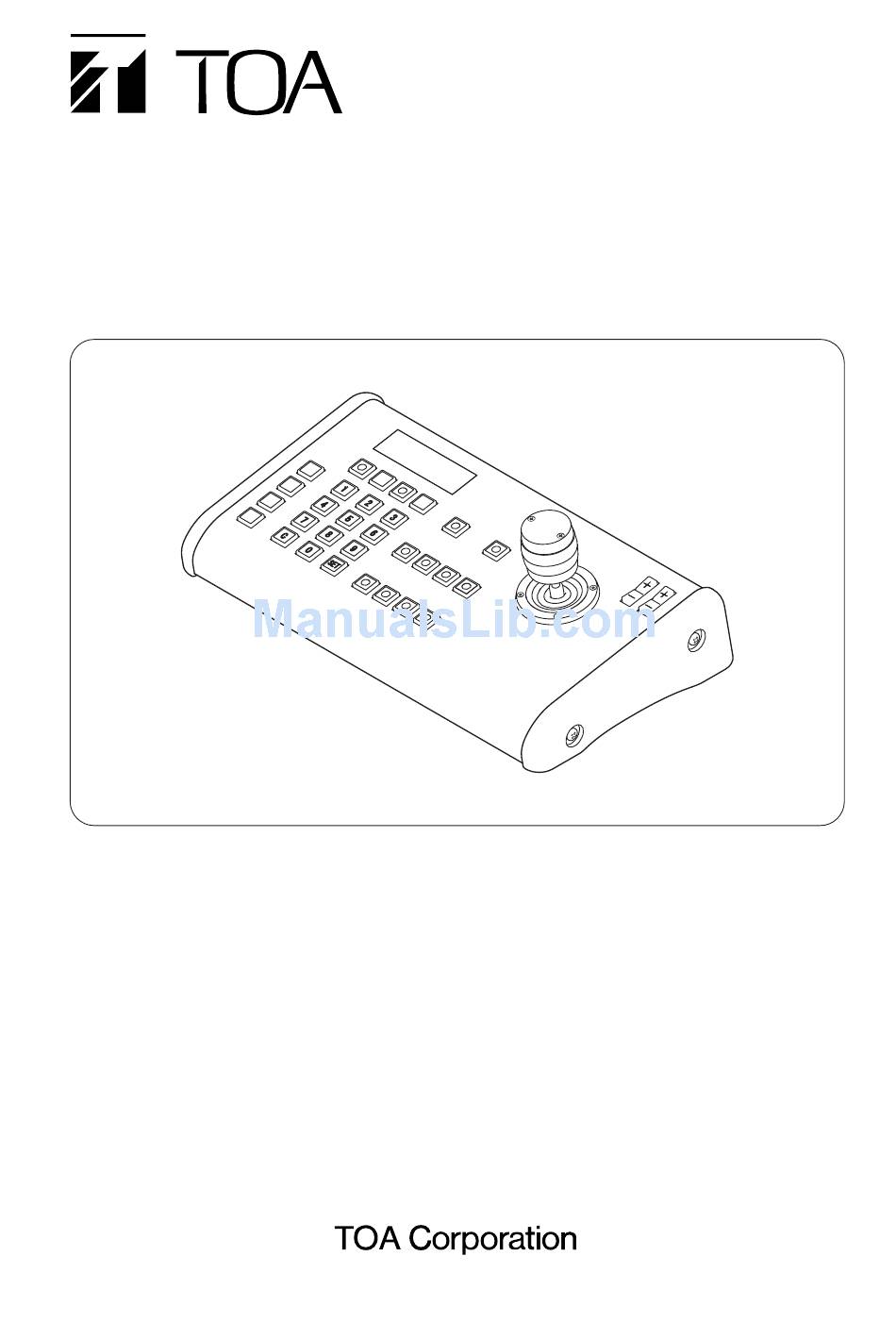

OPERATING INSTRUCTIONS REMOTE CONTROLLER C-RM1000 CU Thank you for purchasing TOA's Remote Controller. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. -
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS GENERAL DESCRIPTION 2. GENERAL DESCRIPTION 3. FUNCTIONS 4. HANDLING PRECAUTIONS 5. CONNECTABLE EQUIPMENT AND THEIR MAXIMUM NUMBERS 5.1. Equipment that can be controlled by the Remote Controller ... 8 6. NOMENCLATURE AND FUNCTIONS [ Top Panel ] ... 10 [ Rear Panel ] ... - Page 3 9.8. Combination Camera Menu Display ... 23 9.9. Storing the Preset Positions ... 24 9.10. Deleting Preset Position Data (Communication method: Type B only) ... 24 10. DIGITAL VIDEO RECORDER OPERATION 10.1. Video Recording ... 25 10.1.1. LED indication during recording ... 25 10.1.2.
- Page 4 12.4. Function Settings ... 40 12.4.1. Group settings ... 40 12.4.2. Abbreviation ... 41 12.4.3. Abbreviation (Quick display function) ... 42 12.4.4. Abbreviation (Function programming) ... 43 12.4.5. Camera protocol ... 45 12.4.6. Password ... 46 12.4.7. Focus speed ... 48 12.4.8.
-
Page 5: Safety Precautions
1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation. • Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. - Page 6 CAUTION When Installing the Unit • Never plug in nor remove the power supply plug with wet hands, as doing so may cause electric shock. • When unplugging the power supply cord, be sure to grasp the power supply plug; never pull on the cord itself.
-
Page 7: General Description
2. GENERAL DESCRIPTION TOA's C-RM1000 Remote Controller is used to remotely control TOA's 9-channel (C-DR091 series) or 16- channel (C-DR161 series) Digital Video Recorders. It can also remotely control operation of Combination cameras connected to the Digital Video Recorder. The C-RM1000 is equipped with a 3-axis joystick that permits main operation to be performed with one hand. -
Page 8: Handling Precautions
4. HANDLING PRECAUTIONS • Do not connect the AC adapter when using the supplied modular cable since the power is supplied from the Digital Video Recorder. • Do not connect the DVR Control Output Terminal A (RJ-11) to the telephone line. •... - Page 9 Definition Digital Video Recorder number (DVR): Refers to the DVR-ID number when the Digital Video Recorders are cascade- connected. Monitor number (MON): Refers to the Digital Video Recorder's monitor output number. There are two monitor outputs: Monitor outputs 1 and 2. Camera number (CAM): Refers to the camera video input terminal number connected to the Digital Video Recorder.
-
Page 10: Nomenclature And Functions [ Top Panel ]
6. NOMENCLATURE AND FUNCTIONS [ Top Panel ] DVR MENU (1) LCD Screen Displays the setting menu and data of operation status, etc. using characters. (2) Digital Video Recorder Key [DVR/DVR MENU] Selects the Digital Video Recorder to be controlled, and the DVR group number. Holding down this key for 2 seconds or more displays the menu of the Digital Video Recorder being selected. - Page 11 (8) Joystick In live mode Performs pan, tilt, and zoom operation of connected Combination Cameras. In playback mode Performs playback, reverse playback, fast forward playback, and pause operation. In menu display mode Moves the cursor (lever position: up, down, left, or right) and confirms (clockwise lever rotation) or cancels (counterclockwise lever rotation) the setting.
-
Page 12: [ Rear Panel ]
[ Rear Panel ] [ Bottom Surface Indications ] SER. REMOTE CONTROLLER model C-RM1000 CU 12/13.8V 250mA TOA Corporation MADE IN JAPAN (23) DVR Control Output Terminal B (screwless type) Use this terminal when the supplied modular cable cannot be used or when connecting the Remote Controller to the interface unit. -
Page 13: Equipment Selection
7. EQUIPMENT SELECTION 7.1. Digital Video Recorder Selection 1. Press the desired Digital Video Recorder number using a ten-key numerical pad. 2. Press the DVR key. The selected Digital Video Recorder number is displayed on the LCD screen. (The key cannot be used if the Digital Video Recorder is not connected.) For monitors and cameras, Monitor 1 and Camera 1 are automatically selected. -
Page 14: Camera Selection
Select the camera to be displayed or operated. 1. Press the camera number to be selected using the ten-key numerical pad. 2. Press the CAM key. The selected camera number is displayed on the LCD screen (CAM section). 7.3.1. Quick group camera selection (available only when cascade-connected) Specified cameras within the group can be selected using straight number entry. -
Page 15: Monitor Display
Functions that can be displayed differ between Monitor outputs 1 and 2. Live mode Function Full 9 Seg 4 Seg Monitor output 1 Monitor output 2 Digital Recorder Function menu Monitor output 1 Monitor output 2 * Only the C-DR161 Series (16-channel versions) can display. Note Perform the monitor lock setting for the system using two or more remote controllers .This eliminates the necessity of operation for switching the monitors and prevents malfunctions. -
Page 16: Multi-Screen Display
The screen switches as follows each time the MULTI key is pressed while in live or playback mode. 9-channel recorder 4 Seg A 4 Seg B 9 Seg 4 Seg C Note: Monitor output 2 can display only live images in full-screen and 4-segment split-screen displays. 1. -
Page 17: 9-Segment Split-Screen Display
Press the SHIFT key. The SHIFT key lights. Press the MULTI (9-Split-Screen) key. The MULTI key lights and Camera Nos. 1-9 (9-segment split screen A) are displayed on the monitor. 2-1. When the 16-channel recorder is used Repeat Steps 1 and 2 to display the camera numbers to be monitored. -
Page 18: Changing The Multi-Screen Display Position
Live and recorded images can be set to be displayed on user-specified split screen segments, and the display position of the multi-segment split screen can be freely changed. For more information, please read the Digital Video Recorder's instruction manual. 1. With the display mode set to live mode, display the multi- segment split screen to be changed. -
Page 19: Group Sequential Display
Group sequential displays can be performed if "Group" has been selected in the Cascade Connection setting. The Monitor 1 sequential display setting is used for the group sequence function. Notes • Sequential display settings must be performed in advance for the Digital Video Recorder. For the sequence setting method, please refer to the instruction manual enclosed with the Digital Video Recorder. -
Page 20: Zoom Display (Electronic Zoom)
Live or recorded full-screen images can be viewed in 2X zoom display. Multiple-segment split-screens cannot be zoomed. Note "Zoom ON" and "Zoom OFF" must be preprogrammed into a function key or abbreviation number. (Refer to 43; Abbreviation (Function programming).) 1. Press the "Zoom ON"-preprogrammed function key or abbreviation number. -
Page 21: Combination Camera Operation
9. COMBINATION CAMERA OPERATION The following camera operations can be performed when the Digital Video Recorder is in live mode and the Combination camera is selected. 9.1. Camera Rotation and Zoom Operation Using the Joystick Connected Combination cameras can be rotated in the desired direction and their zoom lenses operated using the joystick. -
Page 22: Iris Operation (Communication Method: Type B Only)
This iris can be adjusted using the IRIS key when the Combination camera is connected. After selecting the camera, press the IRIS ( + ) or (-) key. Iris operation continues as long as the key is pressed. The ( + ) key opens the iris, and the (-) key closes the iris. -
Page 23: Focus Speed Settings
Camera focus speed can be set. (Refer to 9.7. Utilization of the Abbreviation Number Function By pressing the SET key after entering the preprogrammed abbreviation number using the ten-key numerical pad, or by simply pressing the function key, the following camera operations can be performed: (Refer to 34;... -
Page 24: Storing The Preset Positions
The preset position can be stored on the camera menu, however it can be easily stored by performing the following operation; 1. Select the camera for which the preset position is programmed. (Refer to 2. Rotate the Combination camera to set it to the desired angle of view. -
Page 25: Digital Video Recorder Operation
10. DIGITAL VIDEO RECORDER OPERATION The following Digital Video Recorder operations can be performed using the Remote Controller: 10.1. Video Recording Priority recording and auto-recording (Alarm event recording and Normal recording) modes are made available to the Digital Video Recorder. For details, please refer to the instruction manual enclosed with the Digital Video Recorder. -
Page 26: Resetting Alarm Event Recording
The Alarm reset key flashes and the buzzer tone sounds during Alarm event recording. Alarm event recording cannot be initiated by the Remote Controller. For the method of starting the Alarm event recording, refer to the instruction manual enclosed with the Digital Video Recorder. For the operations of the unit while in alarm mode, refer to 34;... -
Page 27: Stop Operation
Press the PLAY/LIVE key while in playback mode. Playback stops, switching to live mode. The PLAY/LIVE key remains unlit while in live mode. 10.2.4. Forward/reverse quick playback Leave the joystick tilted to the left or right during playback. The left-tilt position permits fast reverse playback and the right-tilt position permits fast forward playback. -
Page 28: Frame Advance/Reverse Playback
10.2.7. Frame advance/reverse playback Tilt the joystick to the left or right while playback is temporarily stopped. The left-tilt position permits frame reverse playback, and the right-tilt position permits frame forward playback. 10.2.8. Instant event access playback Press the FOCUS (+) key while playback is temporarily stopped. -
Page 29: Search Operation
It is possible to search recorded images by date, time, or event. For details, please refer to the instruction manual enclosed with the Digital Video Recorder. 1. Press the Search key. The search menu is displayed Operate the Remote Controller as follows while the search menu is being displayed: •... -
Page 30: Motion Detection Area Settings
Motion detection areas can be set on the digital video recorder menu. For more information, please refer to the digital video recorder’s instruction manual. 1. Display the motion detection area setting screen using the digital video recorder menu. Operate the Remote Controller as follows while the menu is being displayed: •... -
Page 31: Triplex Settings
Live images can be assigned to any segment of the screen while recorded images are played back on the multi-segment split screen. For details, please read the instruction manual enclosed with the Digital Video Recorder. 1 Hold down the MULTI key for 2 seconds or more while recorded images are played back on the multi-segment split screen. -
Page 32: Entering The Digital Video Recorder Password
When “Remote access restriction” is set to ON in the Digital Video Recorder’s security settings and a password is valid, only the Digital Video Recorder’s current operation level can be accessed. To change the Digital Video Recorder’s operation level, perform the following procedure. For the Remote Controller’s login and logout method, refer to p.33;... -
Page 33: Other Operations
11. OTHER OPERATIONS 11.1. Log-In and Log-Out If a password has been set, it is possible to log in to or log out of each operation level by following the procedures below. For password settings, please refer to login and logout method, refer to 11.1.1. -
Page 34: Abbreviation Number
This function permits quick dialing preprogrammed into a number. Camera images (DVR No., monitor No., camera No., and position No.) and the functions of the Combination Camera and Digital Video Recorder can be programmed into a number. (Refer to 1. Enter the abbreviation number using the ten- key numerical pad. -
Page 35: To Stop A Buzzer Tone
11.3.2. To stop a buzzer tone Press the RESET key to stop the buzzer tone. 11.3.3. To reset alarm Hold down the RESET key for 2 seconds or more while alarm is being activated. The RESET key extinguishes, canceling the alarm mode. Note Alarm cannot be reset when “Level”... -
Page 36: Settings
12. SETTINGS 12.1. Setting Item Summaries Remote Controller Menu Display (Hold down the Menu key for 2 seconds or more.) Setting Item 1. Setting Group 2. Transfer 3. Erase 1. Setting Abbreviation 2. Transfer 3. Erase Camera Protocol 1. Operation Level 1 Password 2. -
Page 37: Remote Controller Menu List
Group 1. Setting 2. Transfer 3. Erase Abbreviation 1. Setting 2. Transfer 3. Erase Camera Protocol TOA-A TOA-B BOSCH PELCO-D Password Menu 1. Operation level 1 2. Operation level 2 3. Operation level 3 4. Log-out time 5. Priority recording operator level 3 Focus Speed 1. -
Page 38: Setting Keys And Display Screen
[Keys to be used for settings] LCD screen Displays setting items and contents. DVR MENU CAM MENU Clear Key Cancels the setting items or contents or numerical Ten-Key Numerical Pad values entered with a numerical keypad. Used to enter a number. [ LCD screen display ] G R O U P 1 . -
Page 39: Basic Setting Operations
Here, basic operating procedures for each setting item are described. Enter a password to log in to Operation Level 1 and display the Remote Controller’s menu. Refer to 12.3.1. Displaying the menu Note While the digital video recorder is displaying each menu (Search Menu, Triplex Menu, or Archive Menu) or while the combination camera’s camera menu is being displayed by the remote controller, the remote controller’s menu cannot be activated even if the remote controller’s menu key is pressed. -
Page 40: Function Settings
Follow the instructions in operations. 12.4.1. Group settings Assigning two or more Digital Video Recorders to the same group permits their images to be viewed on a single monitor. Up to 8 groups can be set. Notes • The group setting can only be performed in DVR ID numerical order, and can only be performed in consecutive numbers. -
Page 41: Abbreviation
1. Select [GROUP] while the menu is displayed and press the SET key. The setting content is displayed on the second line. 2. Select [2. TRANSFER] and press the SET key. 3. Select EITHER [RM RF] or [RM The “TRANSFERRING...” indication is displayed while data is being transferred, and the “TRANSFER COMPLET”... -
Page 42: Abbreviation (Quick Display Function)
12.4.3. Abbreviation (Quick display function) Camera images (DVR, monitor, camera and position numbers) can be displayed in the full screen on the monitor by simply pressing a preprogrammed abbreviation number (numerical keypad entry and the SET key). The abbreviation numbers that can be used for this function are Nos. 1-508 and functions keys F1-F4, totaling 512 possible selections. -
Page 43: Abbreviation (Function Programming)
12.4.4. Abbreviation (Function programming) The functions of the Combination Camera and Digital Video Recorder can be programmed into an abbreviation number (1-508 and F1-F4 keys). Note The Combination Camera's protocol must be selected before performing abbreviation number settings. If the protocol is selected, this permits the available functions to be selected for the camera. - Page 44 When the camera's protocol is TOA-B (Type B)... Function Name Description D M C Quick display setting screen DVR NAME DISPLAY DVR Name display DVR NAME HIDE DVR Name hide ZOOM ON Zoom ON ZOOM OFF Zoom OFF AUTO FOCUS Auto focus AUX1 ON Contact 1 ON...
-
Page 45: Camera Protocol
12.4.5. Camera Protocol Selecting protocol of the Combination Camera connected to the Digital Video Recorder only displays the abbreviation function that can be used for each protocol. The abbreviation function table is factory-preset to those for the model of TOA-A. Note Multiple combination cameras using different communication methods cannot be connected to a single digital video recorder. -
Page 46: Password
12.4.6. Password The Remote Controller's operation level can be set using passwords. The table below shows the available and unavailable functions of each operation level. Please set the appropriate operation level referring to this table. High Operation Level 1 Menu Setting Archive Recording/Playback Priority Recording... - Page 47 [ Passwords and operation levels ] If no passwords have been set, Operation Level is “1.” Refer to the table below if a password has been set. Password 1 Operation Level 1 Operation Level 2 Operation Level 3 Set Password Password 1 Password 2 Password 3...
-
Page 48: Focus Speed
[ Password Settings ] 1. Select [PASSWORD] while the menu is displayed and press the SET key. 2. Select the operation level and press the SET key. 3. Select [ON] and press the SET key. 4. Enter a password (6-digit number). 5. -
Page 49: Key Operation Tone
12.4.9. Key operation tone The tone generated whenever the key is pressed can be set to sound or not to sound. 1. Select [KEY CLICK ON/OFF] while the menu is displayed and press the SET key. The setting content is displayed on the second line. 2. -
Page 50: Monitor Lock
Set the Monitor Lock function for the system in which multiple remote controllers are connected. This restricts operable monitors and eliminates the necessity for switching monitors, allowing malfunctions to be avoided. Using the Monitor lock function in combination with the abbreviation number function makes the abbreviation number settings simple. -
Page 51: Language
12.4.13. Language Set the language to be displayed on the LCD screen. 1. Select [LANGUAGE] while the menu is displayed and press the SET key. The setting content is displayed on the second line. 2. Select the setting content and press the SET key. [Setting Contents] 1. -
Page 52: Connections
13. CONNECTIONS 13.1. Equipment Connections • Use the CPEV-S cable (twisted pair shielded cable) with diameter larger than 0.65 mm (AWG22) for connection between control terminals. Be sure to connect the shielded cable to the GND terminal. • The control cable length between the Remote Controller and the farthest Digital Video Recorder must be shorter than 1.2 km (3,937 •... -
Page 53: System Example
13.2.1. Basic system Color camera Combination Camera RS-485 RS-485 To AC Mains Match the Combination Camera’ s address to the Digital Video Recorder’ s video input number. Digital Video Recorder RM IN-A C-DR091 or Termination: ON C-DR161 Series ARCHIVE KEY LOCK FAILURE HD FULL DIGITAL VIDEO RECORDER C-DR161... -
Page 54: Expanded Digital Video Recorder System (Cascade-Connection)
Group 1 Digital Video Recorder 1 Combination Camera RS-485 1-16 To AC Main Digital Video Recorder 2 RS-485 1-16 Group 2 Digital Video Recorder 3 RS-485 1-16 Digital Video Recorder 8 RS-485 1-16 : Coaxial cable (video signal) : CPEV-S 0.65-2C (RS-485 control line) : Modular cable, 3 m (9.8 ft). -
Page 55: Connections Between The Remote Controller
[C-RF1000 Interface Unit Connections] The maximum cable length is 1.2 km (3,937 ft) for each distance between the Remote Controller and the Interface Unit and between the Interface Unit and the farthest Digital Video Recorder. Notes *1. Match the transmission rate of all components connected to the Interface Unit. The Interface Unit's DIP switch settings must also be identical with the Remote Controller's bit rate settings. -
Page 56: Digital Video Recorder Failure Indication
Power to the Remote Controller is supplied from the AC adapter. The maximum cable length is 1.2 km (3,937 ft) for distance between the Remote Controller and the Digital Video Recorder of which termination switch is set to ON. Remote Controller Screwless terminal... -
Page 57: Troubleshooting
15. TROUBLESHOOTING Symptom [If the supplied modular cable is used] Power not supplied to the Remote Controller. • The Remote Controller is not correctly connected to the Digital Video Recorder using the supplied modular cable. • The Digital Video Recorder’s power source is not connected to the wall AC outlet. -
Page 58: Operation Guide
16. OPERATION GUIDE Operation Item • Equipment selection Digital Video recorder Numerical keypad (DVR No.) + DVR selection Monitor selection Numerical keypad (camera No.) Camera selection + CAM Group selection Shift + Numerical keypad (group No.) + DVR • Monitor display Numerical keypad (camera No.) Full-screen display + FULL... - Page 59 Operation Method Operation Item (Key Operation) • Digital Video Recorder operation Forward quick playback Playback + RIGHT Reverse quick playback Playback + LEFT 1-minute/10-minute skip TELE forward playback 1-minute/10-minute skip WIDE reverse playback Pause Playback + DOWN Pause reset Pause mode + UP Frame advance playback Pause mode + RIGHT Frame reverse playback...
-
Page 60: Specifications
17. SPECIFICATIONS Power Source 12 V AC, 60 Hz (use of the supplied AC adapter) or 12 V DC (supplied from the digital video recorder) Current Consumption 80 mA (use of the supplied AC adapter) Digital Video Recorder RS-485, RJ11 (6P 6C) Control (when the included 3-meters (9.8 ft) modular cable is used) RS-485, screwless connector (3 pins)
