    OWNERS MANUAL version 2 TC 1280 STEREO DIGITAL AUDIO DELAY Contents Page FEATURES FRONT PANEL AND FUNCTIONS PRESETS MIDI REMOTE UTILITY FEATURES REAR PANEL MEMORY EXPANSION ERROR MESSAGES DISTANCE MODE CALCULATION HAAS EFFECT TECHNICAL SPECIFICATIONS TC1280 STEREO DIGITAL AUDIO DELAY OWNERS MANUAL Rev. 2.1, Software version 2.04...

  • Page 2: Version

    TC1280 STEREO DIGITAL AUDIO DELAY The TC 1280 STEREO DIGITAL AUDIO DELAY is a high resolution audio delay based on the proprietary converter technology that made the TC2290 Dynamic Digital Delay a world standard in the recording industry. Two independently controlled audio channels make the TC1280 ideally suited for any system requiring precise control over audio delay.

  • Page 3: Front Panel And Functions

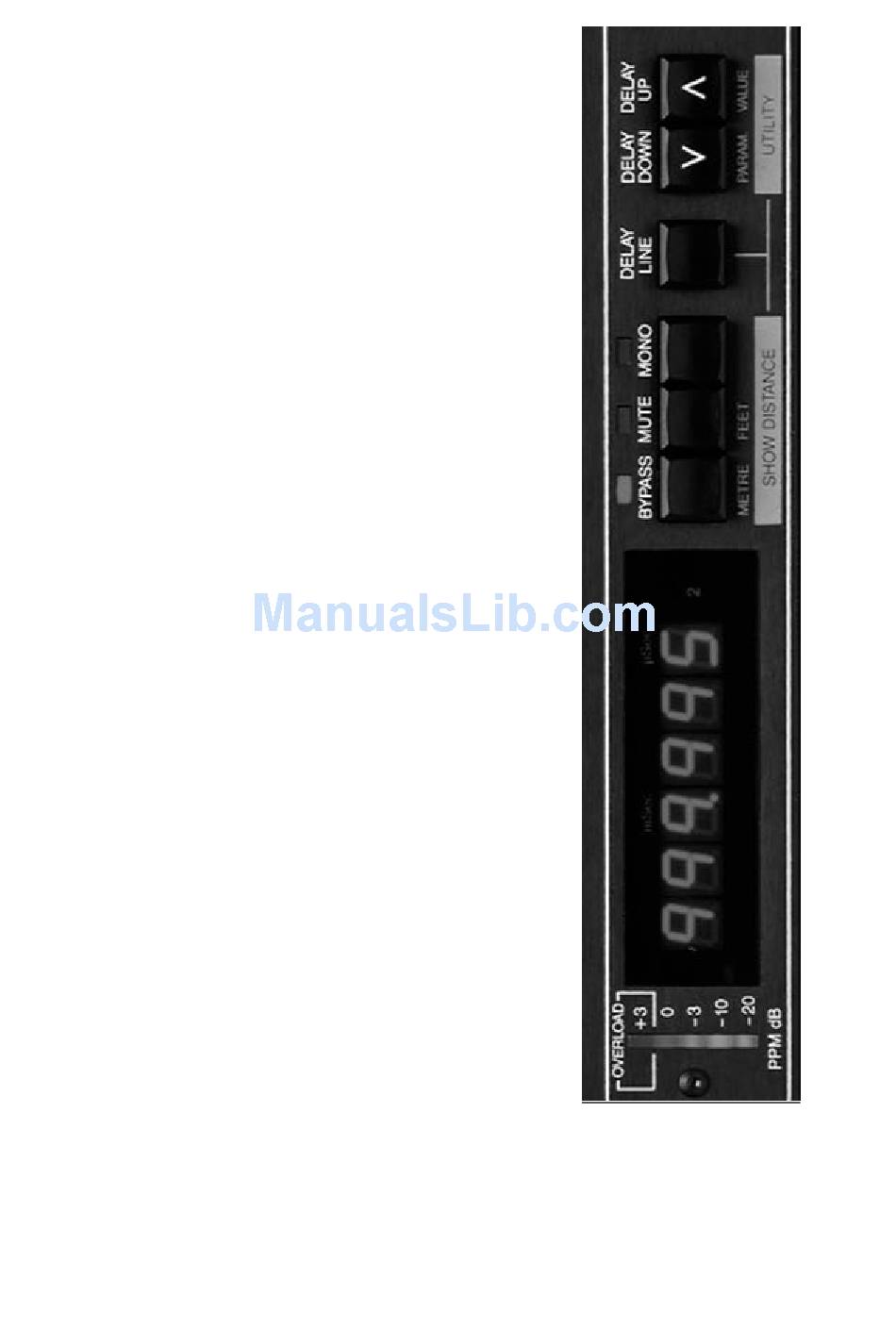

    FRONT PANEL KEYS AND FUNCTIONS TC 1280 STEREO DIGITAL AUDIO DELAY OVERLOAD DELAY DELAY DELAY UTILITY LIST LINE mSec. uSec. BYPASS MUTE MONO DOWN 0 SOFTWARE VERSION 1 RESOLUTION (microsec./frames) -3 -20 2 MIDI DEVICE/CHANNEL NO. 3 RESET 4 DISTANCE MODE...

  • Page 4: Presets

    PRESETS The TC 1280 has 4 presets. Just make your delay setting, and these values will remain as a preset until changed. Select another preset number (UTILITY PARAMETER 6, VALUE 1 - 4) and adjust the delay time. Both are now selectable by recalling the appropriate preset number by MIDI or by remote.

  • Page 5: Utility Features

    UTILITY FEATURES (extra options and settings) You can access a whole extra group of parameters and features within the TC 1280 by simply pressing two buttons at the same time. PARAMETER selects what type of feature you want to adjust, and VALUE selects the choice.

  • Page 6: Rear Panel

    REAR PANEL PUSH PUSH GROUND REMOTE TYPE : TC 1280 LIFT MONO FUSE : 30W/ 50-60 Hz SERIAL 100 - 120V: T400mA 220 - 240V: T250mA MIDI L IN (left input) Left channel input. XLR balanced, pin 2 hot. R IN (right input) Right channel input.

  • Page 7: Memory Expansion

    MEMORY EXPANSION The TC 1280 can be expanded on the main circuit card in steps of 625 mS per channel by using the CH01 memorv expansion kit. 1250 mS per channel: Install memory chip in position IC31. Switch dip switch position 1 to ON.

  • Page 8: Distance Mode Calculation

    DISTANCE MODE CALCULATION The show distance value corresponding to the delay time setting is based on 344 meters/Sec or 1129 feet/Sec which is the speed of sound in air at 20°C and 60% humidity. The equation for the delay time is: distance time where "...

  • Page 9: Technical Specifications

    TECHNICAL SPECIFICATIONS INPUT/OUTPUT Connectors: XLR balanced (pin 2 hot) Input Impedance (balanced): 20 kOhm Max. Input Level (balanced): +22 dBu Input Gain adj.: ±10 dB Output Impedance 50 Ohm (balanced): Max. Output Level: +22 dBu Output Gain adj.: 0 to -70 dB Dynamic Range: >...
