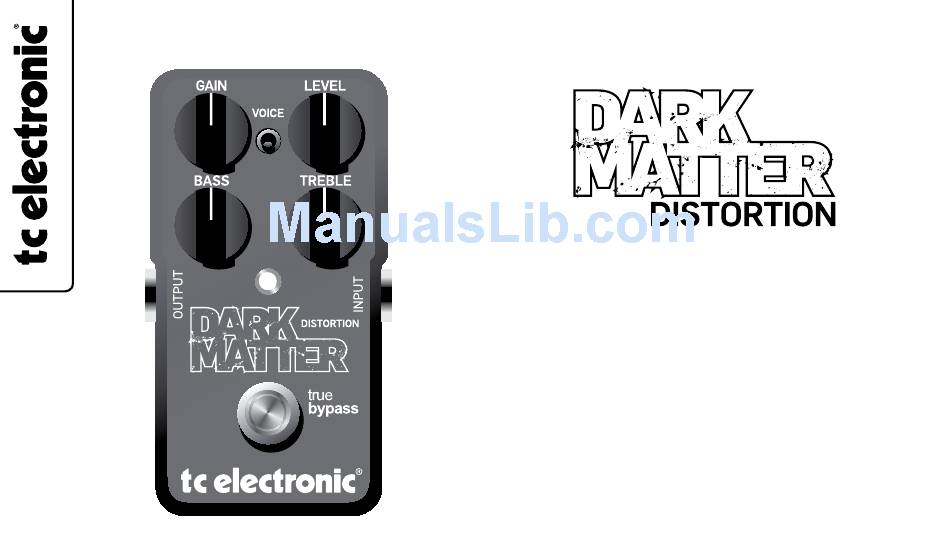

- Page 1 USER’S MANUAL...
-
Page 2: Important Safety Instructions
Important Safety Instructions Warning! • To reduce the risk of fire or electrical shock, do not 1 Read these instructions. expose this equipment to dripping or splashing and ensure 2 Keep these instructions. that no objects filled with liquids, such as vases, are 3 Heed all warnings. placed on the equipment. 4 Follow all instructions. - Page 3 These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses and can radiate radio frequency energy and – if not installed and used in accordance with the instructions – may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
-
Page 4: (En) Introduction

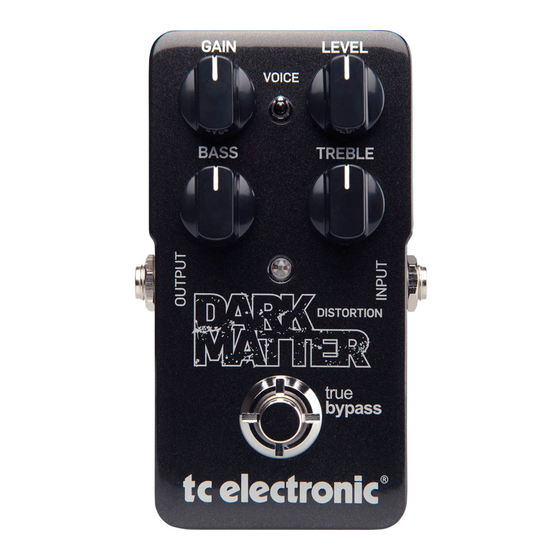

(EN) Introduction Congratulations! You have just bought a distortion pedal that personifies rock and represents all that is good about distorted tones. This pedal will inspire your riffs, licks and leads for years to come. This pedal defines instant gratification and will become the go-to distortion pedal on your board. Initially, you simply plug it in and start rocking, but its many great sounds will have you playing with it for years to come. - Page 5 1 - Effect on/off (true bypass) 2 - 1/4 inch mono jack input 3 - 1/4 inch mono jack output 4 - Bass control 5 - Treble control 6 - Gain control 7 - Level control 8 - Voice selector 9 - Power in (9VDC)
- Page 6 Connecting Input jack – 1/4 inch mono jack input. If you run the pedal on battery, we recommend removing the input jack to preserve battery power when you don’t play. Output jack – 1/4 inch mono jack output for connecting to another pedal or directly into an amp or mixer.
-
Page 7: Bass & Treble
The Controls BASS & TREBLE Bass/treble controls. Add bass for more punch or roll off a bit for a tighter sound on big cabinets. Add treble to cut through a dense mix or reduce to aim for a softer tone. Gain Controls the amount of gain. Lower settings give tight distortion for rhythm parts. Higher settings are ideal for singing leads. LEVEL Sets the overall level. - Page 8 Changing battery – Unscrew the thumb-screw on the back of the pedal and detach the back-plate. Unmount the old battery and attach the new battery to the battery clip making sure the polarity is correct. Then remount the back-plate. To save battery life, remove the input jack when you don’t play. Batteries must never be heated, taken apart or thrown into fire or water. Only rechargeable batteries can be recharged.
- Page 9 (EN) Technical Specifications Sounds Unique distortion circuit with classic tube-amp characteristics: high headroom, low compression and amazing bottom-end Touch sensitive – control tone and distortion level by pick attack and your guitars volume knob Two-band active EQ with separate bass and treble controls Voice switch for vintage or modern voicing Size & Weight 72 mm x 122 mm x 50 mm - 300 g (excl. battery) Battery 16mA current draw Non-stop playing Carbon: 6.5 hours, Alkaline: 25 hours. These figures will vary depending on the actual conditions of use.
- Page 10 TC Electronic, Sindalsvej 34, DK-8240 Risskov info@tcelectronic.com...
