ST-200
Prestige SuperTweeter
Please take time to carefully read this manual before installing and using your
Tannoy SuperTweeter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tannoy ST-200

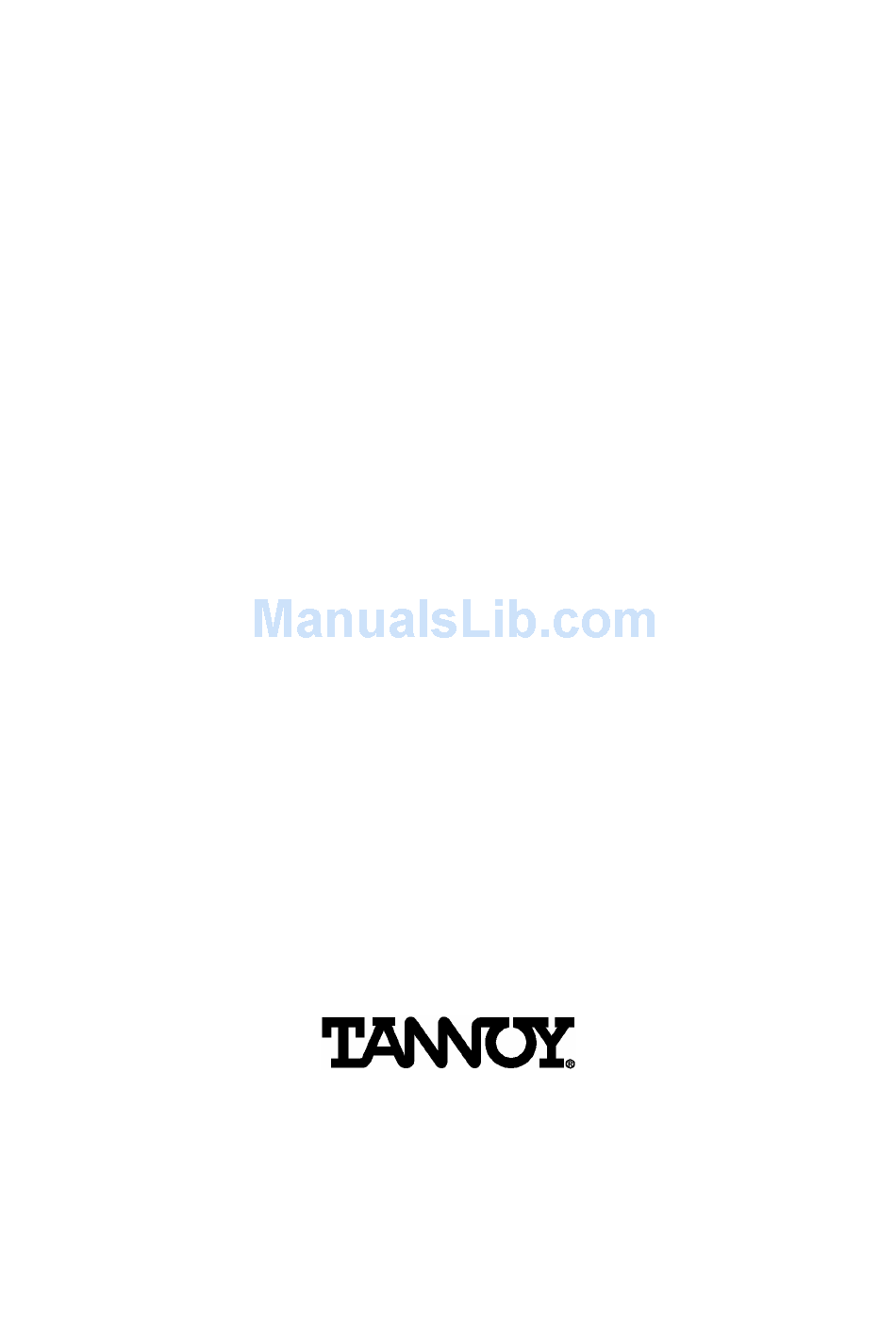

  • Page 1 ST-200 Prestige SuperTweeter Please take time to carefully read this manual before installing and using your Tannoy SuperTweeter...
  • Page 2 The ST-200 Prestige SuperTweeter Congratulations on choosing this precision hand-crafted component, to complement your Tannoy Dual Concentric loudspeaker system. Before removing from the flight case and installing, please take the time to read these instructions, in order to prevent possible damage.
  • Page 3: Unpacking Instructions

    Unpacking Instructions Caution: The titanium dome on this SuperTweeter is very delicate. Although protected by a metal mesh, take care to avoid pressing on this during unpacking and installation, in case damage results. Each flight case contains the following: • SuperTweeter units x 2 •...
  • Page 4 Two lengths are available from your authorised Tannoy Dealer: STL-075 0.75m STL-175 1.75m STL-075 is suitable for most models, while STL-175 is mainly for large horn loaded enclosures, such as Westminster, Westminster Royal, Autograph and GRF. Please check the length required for your speakers, should you require cable.
  • Page 5: Initial Positioning

    Initial Positioning With a Tannoy Dual Concentric loudspeaker system, the low and high frequency radiation is generated on the same axis. This is done by mounting the high frequency unit behind the low frequency one, and coupling it to the low frequency radiator via a carefully optimised waveguide through the centre of the drive unit.
  • Page 6 Fig. 2...
  • Page 7 MODEL DISTANCE POSITION SENSITIVITY XOVER FREQ 6 1/2" Dual Concentrics: D100, D300, System 6 45mm 89dB 18kHz 8" Dual Concentrics: Esher SL25, NFM 8, DTM 8, 57mm 90.5dB 18kHz System 8, D500, D750 Greenwich 87mm 90.5dB 18kHz 10" Dual Concentrics: LSU/HF/3LZL (Monitor Red)*, 78mm 90.5dB...

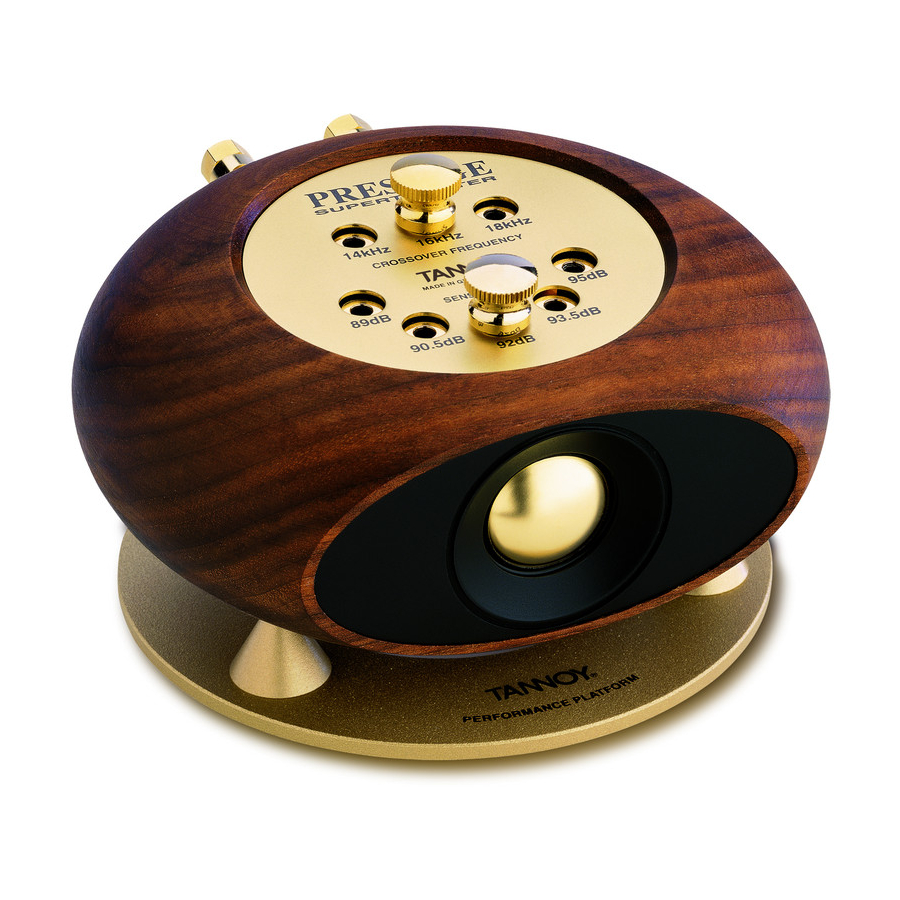

  • Page 8 Adjustments Referring to Table 1 again, select the sensitivity and crossover frequency settings to suit your loudspeakers, and install the adjustment screws into the correct position on the SuperTweeter adjustment panel (Fig. 3). The rear support cone on the Performance Platform may be adjusted for height, then secured using the locking thumb screw.
  • Page 9: Fine Tuning

    The position of the SuperTweeter has been determined in Table 1 to correspond to the acoustic centre of your Tannoy Dual Concentric model. However the user is free to experiment with the positioning. For example, in difficult listening room acoustics, the SuperTweeter may be brought further forward.
  • Page 10: Warranty And Service

    The determination of the cause of failure will be made by Tannoy Limited or its authorised Distributor or Service Agent, based on physical inspection of the failed parts.
  • Page 11: Technical Specifications

    Technical Specifications Recommended amplifier power: Up to 250W Power rating to DIN IEC 268: 135W RMS 550W peak Maximum sensitivity (2.83V @ 1m): 95dB Nominal impedance: 8 ohm Frequency response (-6dB): To 54kHz, usable output (-18dB) to 100kHz DRIVE UNIT: Driver type: 25mm diameter 25 micron titanium dome, 24 Karat vapour deposited gold...
  • Page 12 A member of the TGI PLC group of companies Tannoy Limited, Coatbridge ML5 4TF, Scotland Telephone: +44 1236 420199 Fax: +44 1236 428230 Email: salesdesk@tannoy.com Internet: http://www.tannoy.com Part No. 6481 0323...
