INTRODUCING THE CLICKFAST
The Clickfast Fascia and Gutter
System was originally designed
by Stratco and has proven to
be the most successful fascia
and gutter system in Australia
using a flat steel fascia.
It has been used successfully
by major builders for more than
20 years and remains the
industry leader. It is one of the

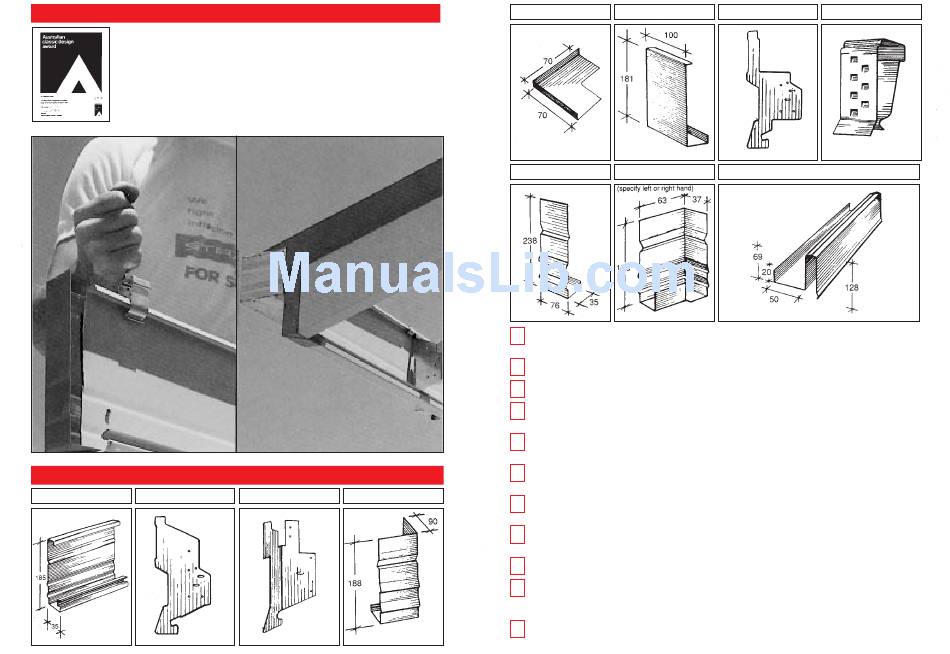

COMPONENTS OF THE CLICKFAST
1: 185MM FLAT FASCIA 2: STANDARD RAFTER BRACKET
FASCIA AND GUTTER SYSTEM
®
few products in Australia to receive the coveted
"classic" design award. In addition to design
excellence, this also guarantees a friendly, tried and
usable system for the Installer.
HOW TO USE THIS MANUAL
Before attempting to install the Clickfast Fascia and
Gutter system to a new home, you should read the
Clickfast Fascia and Gutter brochure and also this
installation manual completely. If further advice is
required, contact your nearest Stratco sales office.
® FASCIA AND GUTTER SYSTEM
3: HIP RAFTER BRACKET 4: EXTERNAL MITRE
5: INTERNAL MITRE 6: JOINING SLEEVE
9: BARGE APEX COVER 10: BARGE MOULD
1 185MM FLAT FASCIA
This fascia is a non structural component designed to cover the end of rafters, provide support for the gutter
and is suitable to support a 4.5mm or 6mm soffit lining placed horizontally, or a 4.5mm soffit raked up to 15˚.
STANDARD RAFTER BRACKET
2
This bracket supports the fascia and is nailed to the side of each rafter.
3 HIP RAFTER BRACKET
This bracket is bent at 45˚ and is used on hip rafters to provide a strong external corner.
EXTERNAL MITRE
4
These are fitted on the outside of the fascia for all 90˚ external corners. The ribs in the mitre continue the
smooth line of the fascia around external corners.
5 INTERNAL MITRE
After the fascia has been formed around an internal corner, this component is simply riveted to the underside
of the fascia.
JOINING SLEEVE
6
This component is fixed internally, joining two longer lengths of fascia together. It provides the ideal method of
joining two lengths.
BARGE RAFTER BRACKET
7
This is used to support the fascia when it is being used as a barge. The top of the bracket is recessed to allow
the barge gutter to sit neatly.
8
SUSPENSION CLIPS
These clips are a specially designed clip made of spring steel and are placed at approximately 1.2 metre
intervals along the fascia. It allows an adequate fall to be given to the gutter.
9 BARGE APEX COVER
This cover enables the apex of two joining barges to be joined neatly.
10 BARGE MOULD (specify left or right hand)
These are used to provide a neat corner where the fascia and barge meets. The ribs on the barge mould
allow a smooth flowing line to run along the fascia and continue neatly up the barge. They must be ordered as left
or right hand. The long face of the barge mould runs along the fascia.
11 BARGE GUTTER
This specially manufactured gutter fits over the top of the barge and is supported by timber outriggers. It
allows the small amount of water which falls between the last tile and the fascia to run to the gutter.
7: BARGE RAFTER BRACKET 8: SUSPENSION CLIP
11: BARGE GUTTER
