IPS sensors
FortiGate IPS User Guide Version 3.0 MR7
01-30007-0080-20080916
To view an IPS sensor, go to Intrusion Protection > IPS Sensor and select the
Edit icon of any IPS sensor. The Edit IPS Sensor window is divided into three
parts: the sensor attributes, the filters, and the overrides.

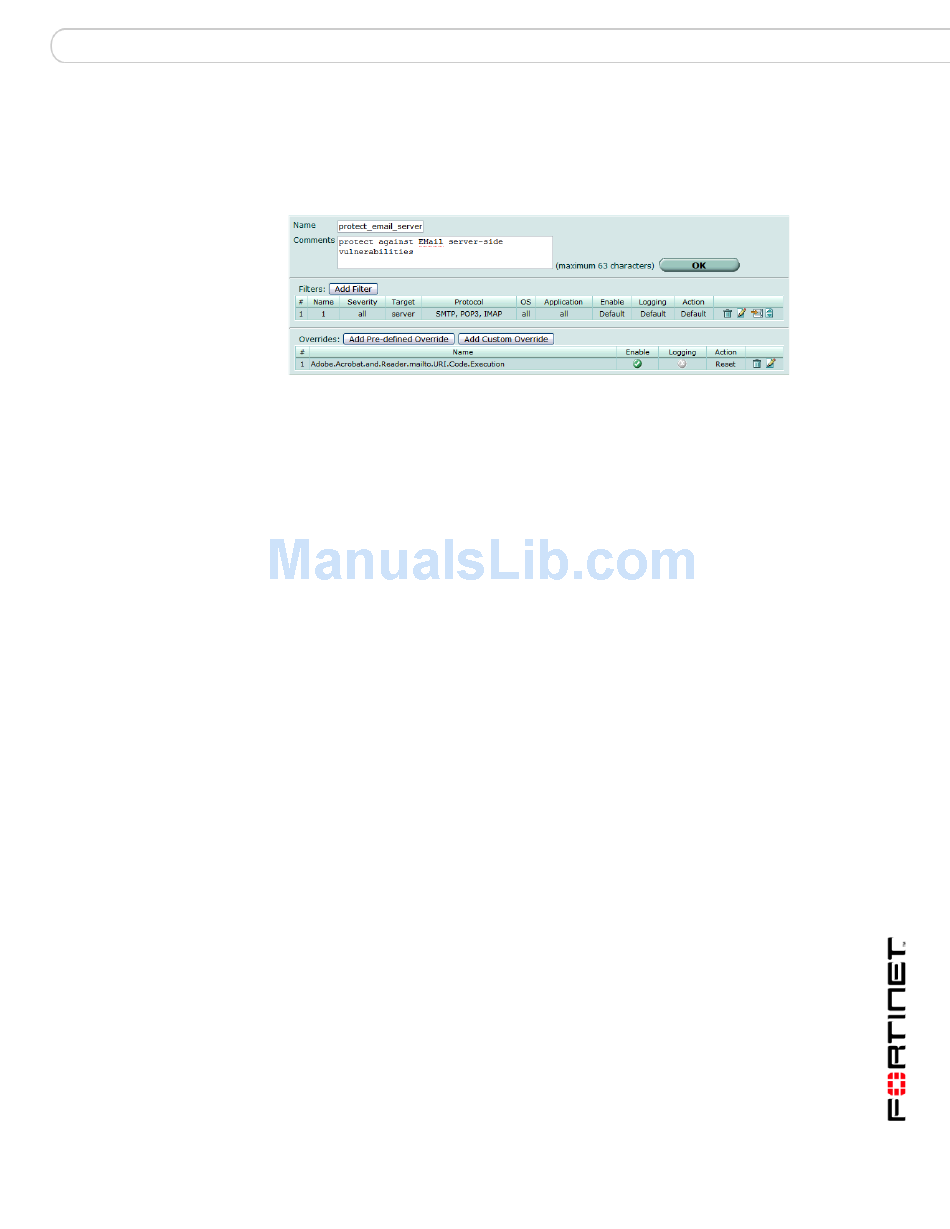

Figure 9: Edit IPS sensor
IPS sensor attributes:
Name The name of the IPS sensor. You can change it at any time.
Comments An optional comment describing the IPS sensor. You can change it at
any time.
OK Select to save changes to Name or Comments.
IPS sensor filters:
Add Filter Add a new filter to the end of the filter list. For more information, see
"Configuring filters" on page
# Current position of each filter in the list.
Name The name of the filter.
Signature Signature attributes specify the type of network traffic the signature
applies to.
attributes
Severity
Target
Protocol
OS
Application The applications to which the signatures apply.
Enable The status of the signatures included in the filter. The signatures can be
set to enabled, disabled, or default. The default setting uses the default
status of each individual signature as displayed in the signature list.
Logging The logging status of the signatures included in the filter. Logging can
be set to enabled, disabled, or default. The default setting uses the
default status of each individual signature as displayed in the signature
list.
Action The action of the signatures included in the filter. The action can be set
to pass all, block all, reset all, or default. The default setting uses the
action of each individual signature as displayed in the signature list.
Count The number of signatures included in the filter. Overrides are not
included in this total.
Delete icon Delete the filter.
Edit icon Edit the filter.
Insert icon Create a new filter and insert it above the current filter.
42.
The severity of the included signatures.
The type of system targeted by the attack. The targets
are client and server.
The protocols to which the signatures apply. Examples
include HTTP, POP3, H323, and DNS.
The operating systems to which the signatures apply.
Configuring IPS sensors
