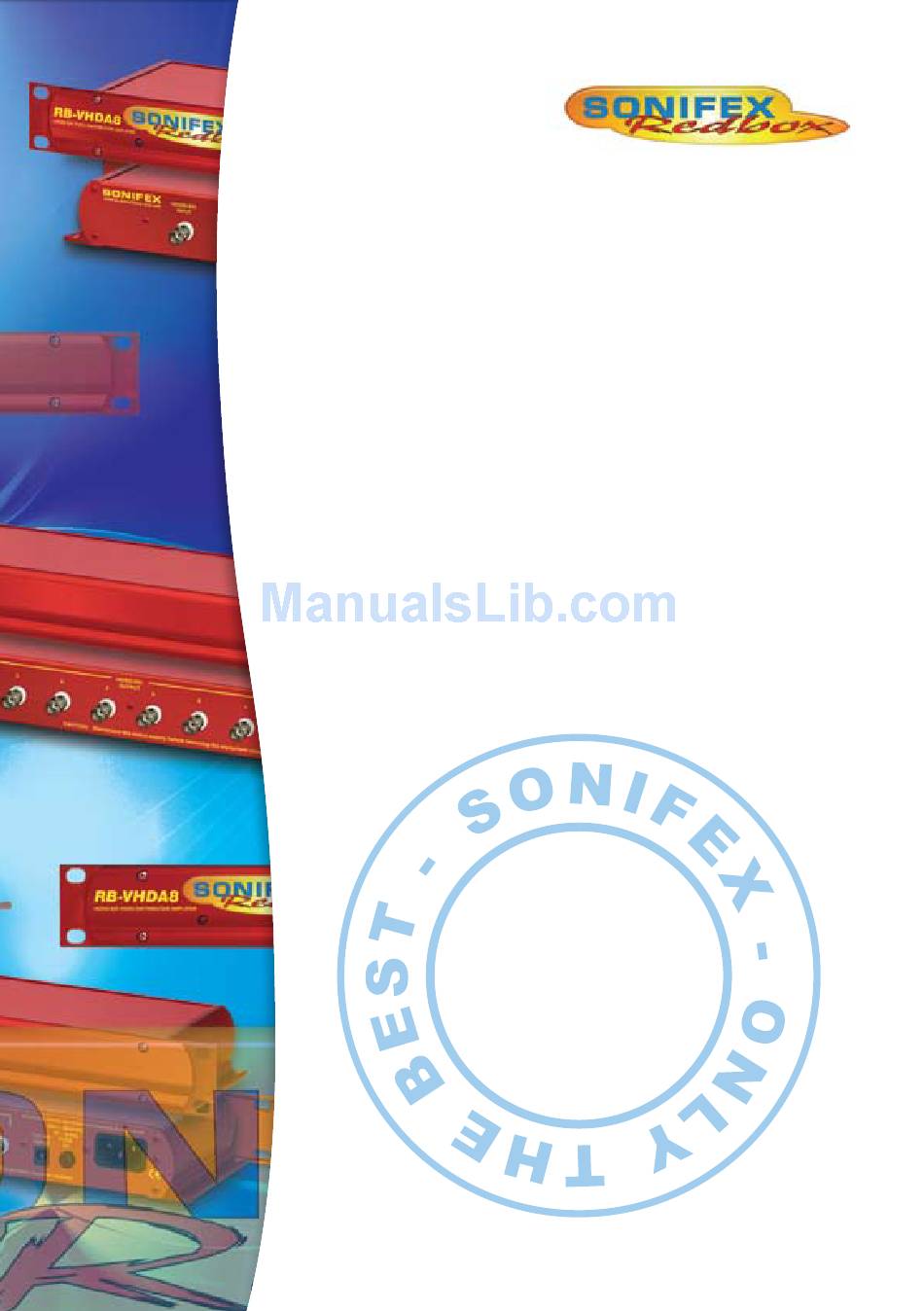

- Page 1 Redbox RB-VHDA8 3G/HD/SD-SDI 1 Input, 8 Output Video Distribution Amplifier User Handbook...
- Page 2 Information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. Sonifex Ltd shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.
-
Page 3: Table Of Contents
Power Cable and Connection Ordering the Correct Mains Lead Installation Information Atmosphere Electromagnetic Radiation Fitting Redboxes WEEE & RoHS Directives - Sonifex Statement RB-VHDA8 3G/HD/SD-SDI 1 Input, 8 Output Video Distribution Amplifier Introduction Technical Specification RB-VHDA8 Front Panel Indicators Rear Panel Connections... - Page 4 Fig A: Packing List Fig B: Power Connections Fig C: Mains Lead Table Fig D: RB-RK3 Large Redbox Rear Rack-mount Kit Fig 1: RB-VHDA8 Front Panel Fig 2: RB-VHDA8 Rear Panel Fig 3: RB-VHDA8 System Block Diagram Redbox RB-VHDA8 User Handbook...
-
Page 5: Warranty
Company. In respect of computer software supplied by the Company the Company does not warrant that the use of the software will be uninterrupted or error free. Redbox RB-VHDA8 User Handbook... - Page 6 Seller in Condition (c). Where the Goods are sold under a consumer transaction (as defined by the Consumer Transactions (Restrictions on Statements) Order 1976) the statutory rights of the Purchaser are not affected by these Conditions of Sale. Redbox RB-VHDA8 User Handbook...
-
Page 7: Unpacking The Rb-Vhda8
Sonifex Ltd in the UK. For your own records you should write down the serial number (which can be found on the rear of the RB-VHDA8. -
Page 8: Safety Information
Connect the equipment in accordance with the connection details and before applying power to the unit, check that the machine has the correct operating voltage for your mains power supply. Important Note : The terminal marked on the rear panel must be earthed. Redbox RB-VHDA8 User Handbook... -
Page 9: Ordering The Correct Mains Lead
SAFETY INFORMATION Ordering the Correct Mains Lead When ordering a Redbox from Sonifex, it is helpful if you can specify your required operating voltage and mains lead. After the product code add: UK, for 230V, UK 3 pin to IEC lead... - Page 10 It gives a contact for individuals who are unsure about the correct procedure when the product has reached its “end of use”. Sonifex Ltd will be happy to give you information about local organisations that can reprocess the products, or alternatively all products that have reached “end of use” can be returned to Sonifex and will be reprocessed correctly free of charge.
-
Page 11: Fig 1: Rb-Vhda8 Front Panel
The front panel of the case has a single bi-colour LED which indicates amber to show power is present, then green should a valid incoming SDI signal be detected. Fig 2: RB-VHDA8 Rear Panel Redbox RB-VHDA8 User Handbook... -
Page 12: Fig 3: Rb-Vhda8 System Block Diagram
The front panel of the case has a single bi-colour LED which indicates amber to show power is present, then red should a valid incoming SDI signal be detected. Rear Panel Connections 3G/HD/SD-SDI Input The single input uses a BNC connector. 3G/HD/SD-SDI Outputs The eight outputs use BNC connectors. Redbox RB-VHDA8 User Handbook... - Page 13 Amber indicates power is present, Red indicates detection of valid incoming SDI signal Rear Panel Connections HD/SD-SDI Video Input: 1 x BNC (Unbalanced) HD/SD-SDI Video Outputs: 8 x BNC (Unbalanced) Power Supply: Filtered IEC, continuously rated 85-264VAC, 47-63Hz, fused Redbox RB-VHDA8 User Handbook...
- Page 14 59cm (W) x 20.5cm (D) x 6cm (H) (Boxed): 21” (W) x 8” (D) x 2.4” (H) Weight : Nett: 1.3kg Gross: 1.9kg Nett: 2.9lbs Gross: 4.2lbs Accessories RB-RK3: 1U Rear panel rack kit for large Redboxes Redbox RB-VHDA8 User Handbook...
- Page 15 NOTES Redbox RB-VHDA8 User Handbook...
- Page 16 w w w . s o n i f e x . c o . u k t:+44 (0)1933 650 700 f:+44 (0)1933 650 726 s a l e s @ s o n i fe x . co. u k...
