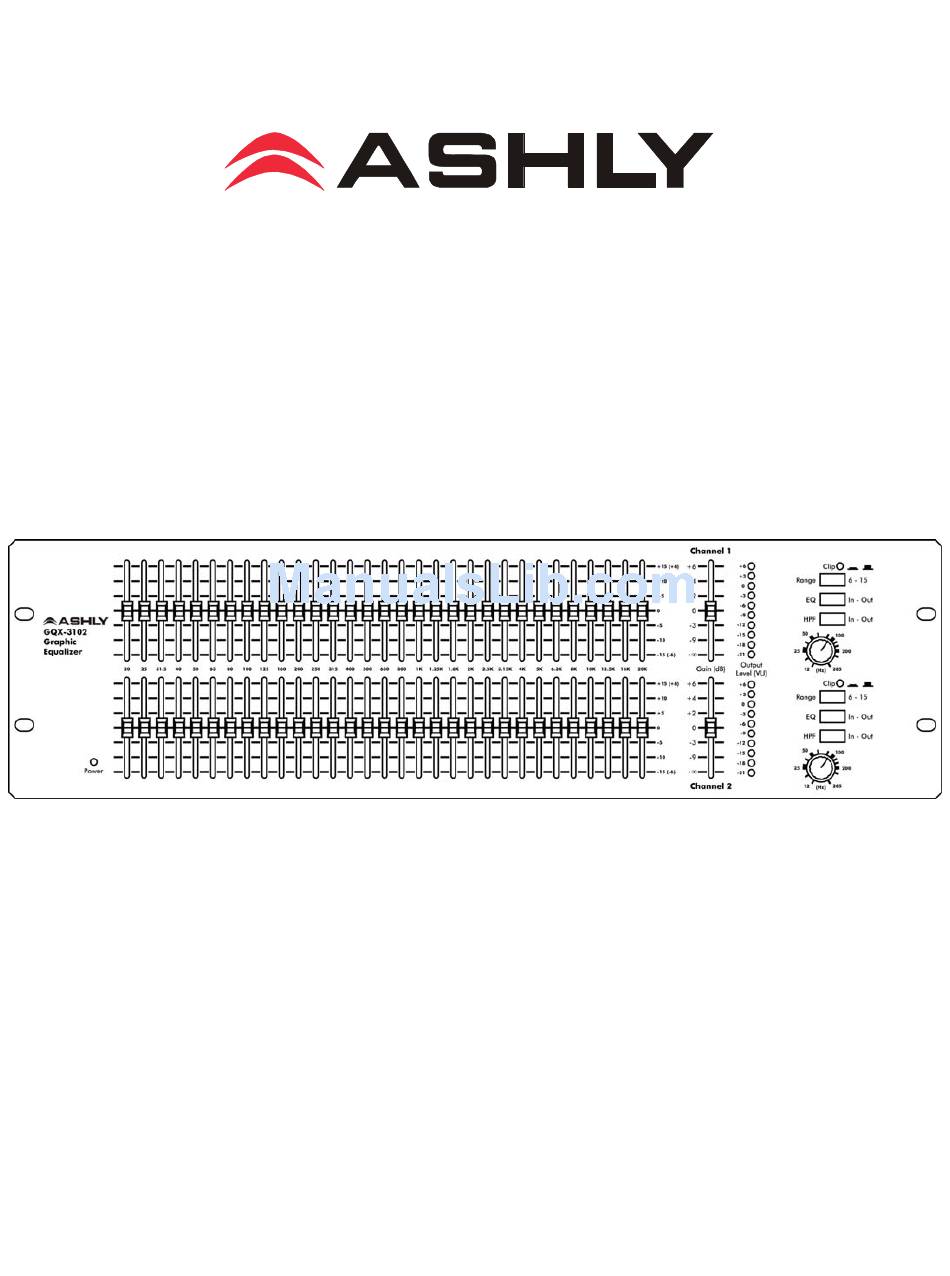

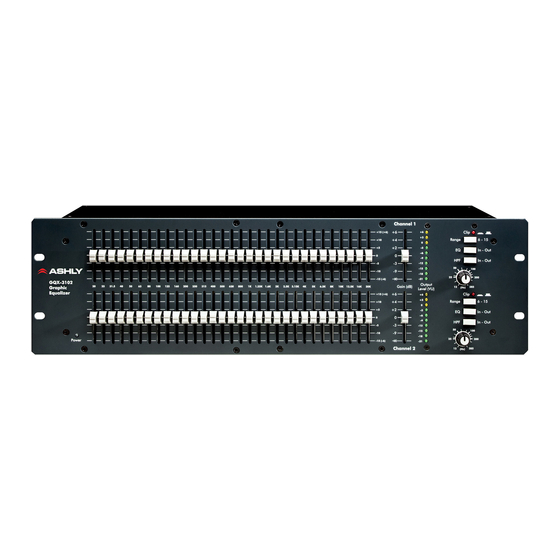

- Page 1 GQX-3102 Graphic Equalizer Operating Manual Ashly Audio Inc. 847 Holt Road, Webster, NY 14580-9103 Toll Free (800) 828-6308, Telephone (585) 872-0010, FAX (585) 872-0739 www.ashly.com All Trademarks referred to herein, are the property of their respective owners. R-1012...
- Page 2 Page - 2 Operator Manual – GQX-3102 Equalizer This Page Intentionally Left Blank...
-
Page 3: Fcc Compliance
Page 3 Operator Manual – GQX-3102 Equalizer Important Safety Instructions Consignes de sécurité à lire attentivement The lightning flash with arrowhead symbol, within an equilateral triangle, is Le symbole de la flèche dans un triangle équilateral symbolisant la foudre est intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 4 Introduction - 4 Introduction About Ashly Safety Congratulations on your purchase of an Ashly GQX Equalizer. GQX equalizers offer a wide GQX Equalizers – 5 range of professional features including: Connectors & Cables – 5 Constant "Q" Design with Low Ripple and Accurate Response Near the "Flat" Setting...
-
Page 5: Connectors And Cables
Operator Manual – GQX-3102 Equalizer Page - 5 Introduction – 4 GQX Equalizers GQX Equalizers – 5 GQX equalizers are a second generation design including many refinements on the original Connectors & Cables – 5 Grounding GQ models. Lower noise and distortion, greater accuracy, and additional output options are the result. -
Page 6: Physical Description
Page - 6 Operator Manual – GQX-3102 Equalizer Introduction - 4 Physical Description GQX Equalizers – 5 The GQX-3102 is 3RU, and weighs 15 pounds. Connectors & Cables – 5 Physical Description - 6 GQX-3102 Front Panel Front Panel Rear Panel Installation –... -
Page 7: Installation
Operator Manual – GQX-3102 Equalizer Page - 7 Introduction - 4 GQX Equalizers – 5 Installation Connectors & Cables – 5 Before connecting to mains power, make sure that the switches are set to the configuration Physical Description - 6 needed for your particular application. -
Page 8: Typical Applications
Page - 8 Operator Manual – GQX-3102 Equalizer Introduction - 4 Typical Applications GQX Equalizers – 5 The following information will help you make the most of your new equalizer: Connectors & Cables – 5 Physical Description - 6 General Tone Control Installation –... -
Page 9: Troubleshooting
Note: Unshielded cables, improperly wired connections, and cable with broken strands (shorts, etc.) are the most common problems. Use good quality cable with connectors soldered firmly on the correct pin. When in doubt, get in touch with your Ashly dealer. Dimensions... -
Page 10: Specifications
Page - 10 Operator Manual – GQX-3102 Equalizer Introduction - 4 Specifications GQX Equalizers – 5 GQX-3102 Specification Connectors & Cables – 5 Active Balanced Type 20KΩ Impedance Physical Description - 6 +23dBu Max Level Installation – 7 1/4” Phone Jack (TRS), XLR, Euroblock... -
Page 11: Limited Warranty (Usa Only)
For units purchased in the USA, warranty service for this unit shall be provided by ASHLY AUDIO, INC. in accordance with the following warranty statement. ASHLY AUDIO, INC. warrants to the owner of this product that it will be free from defects in workmanship and materials for a period of FIVE years from the original-date-of-purchase. - Page 12 Page - 12 Operator Manual – GQX-3102 Equalizer This Page Intentionally Left Blank Copyright© 2012 – Ashly Audio Inc.
