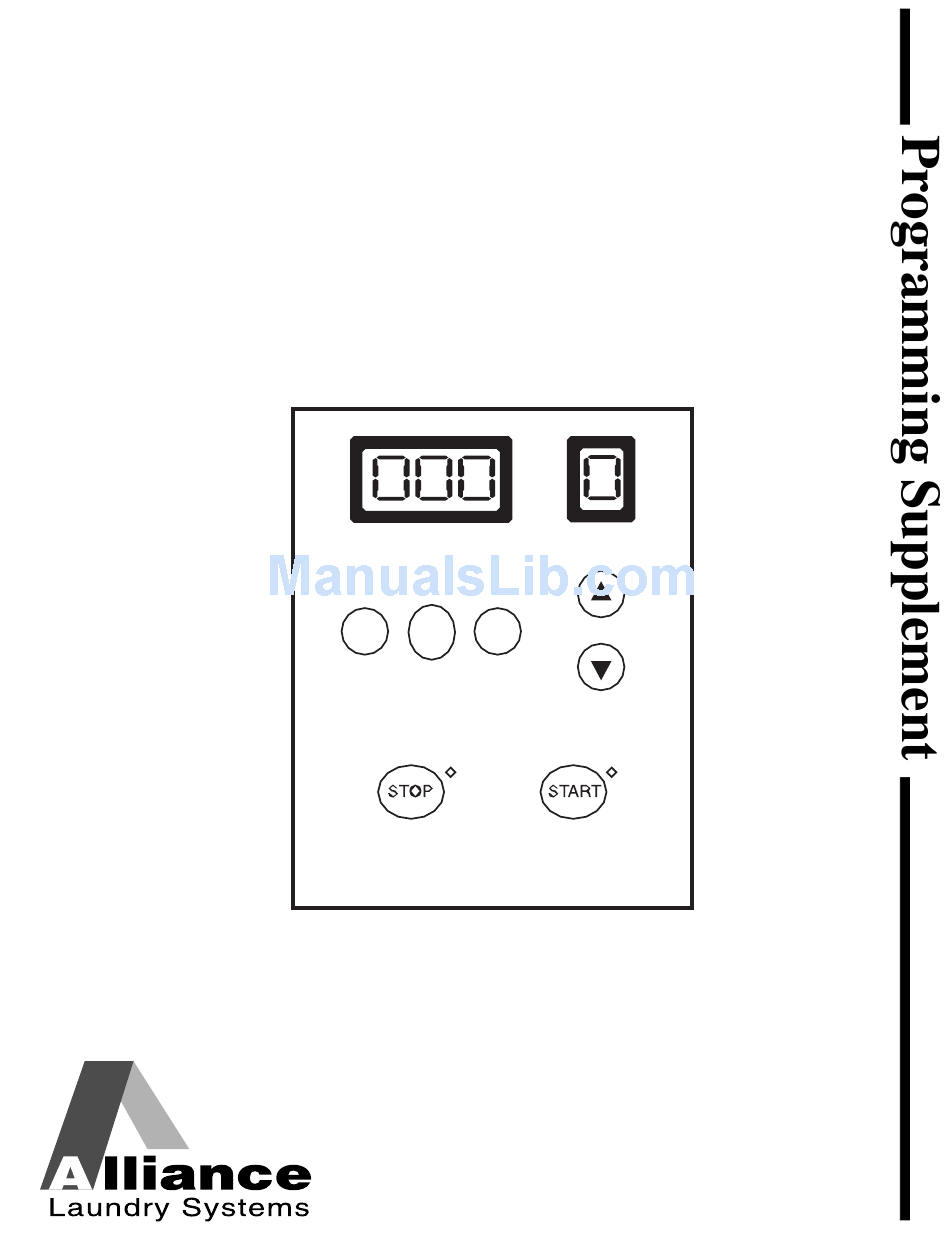

- Page 1 Microprocessor Control Roll Heated Flatwork Finisher Refer to Page 3 for Model Numbers SPEED Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 1300546R1 www.comlaundry.com May 2006...
-
Page 3: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 1300546 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 4 Programming Supplement Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1300546...
-
Page 5: Model Identification
Programming Supplement Model Identification Information in this manual is applicable to these models: UD08F055 UD20F075 UD13F063 UD20F098 UD13F078 UD20F126 UD13F079 UD13F126 1300546 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 6 Programming Supplement Notes 1300546 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 7: Control Identification
Speed Display Increase Preset Temperature Keypad Increase Ironing Speed Keypad Decrease Preset Temperature Keypad Decrease Ironing Speed Keypad Display Preset Temperature Keypad Start Keypad Temperature Display Figure 1 1300546 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 8 Programming Supplement Notes 1300546 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 9: Entering Programming Mode
The temperature display blinks to indicate that the value is ready to be changed. 3. Press the Display Preset Temperature keypad (SET) until the desired option appears in the temperature display. 1300546 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 10 Programming Supplement Notes 1300546 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 11: Programming Control
To exit Programming Mode, press STOP keypad or turn finisher off and on. 4. Press Display Preset Temperature keypad (SET) to confirm the current value and proceed to the next parameter. 1300546 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 12: Temperature Regulation Hysteresis (Variance)
How to Exit Programming Mode To exit Programming Mode, press STOP keypad or turn finisher off and on. 1300546 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 13: Number Of Resistor Groups Installed
SET before leaving the parameter setting mode. How to Exit Programming Mode To exit Programming Mode, press STOP keypad or turn finisher off and on. 1300546 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 14 Programming Supplement Notes 1300546 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 15: Resetting Parameters
Operating Temperature 130°C (266°F) Temperature Regulation Hysteresis (Variance) 2°C Temperature for Automatic Shut-down 80°C (176°F) Heating Type Electrical Number of Resistor Groups Installed Finisher Status Stop Table 2 1300546 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
