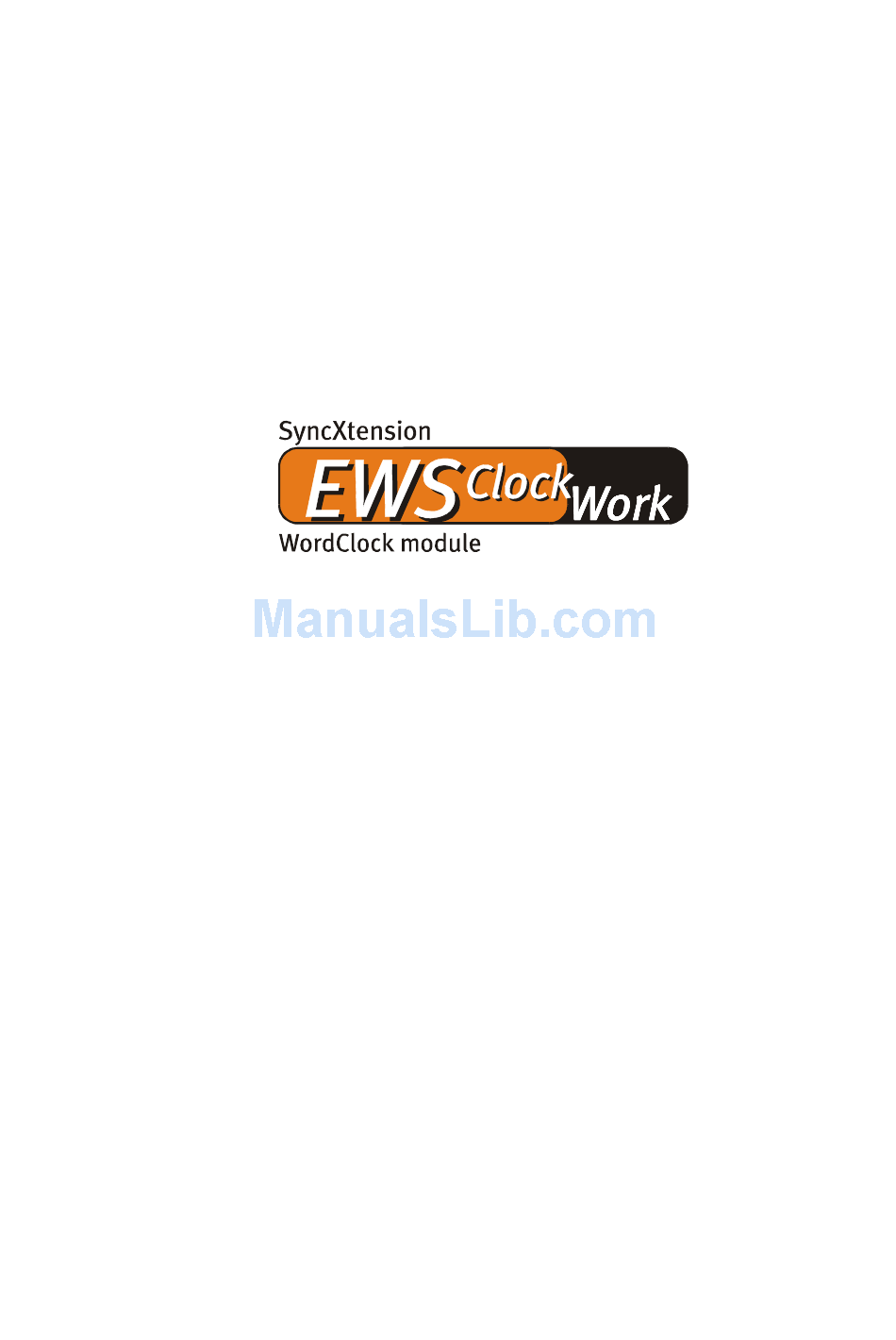

  • Page 1 Quick reference (English) Version 1.0, Status 01.09.00 SyncXtension EWS ClockWork (English)
  • Page 2 Meticulous care has been taken in the preparation of all text passages and illustrations in this manual. TerraTec Electronic GmbH and its authors, however, accept no liability, legal or otherwise, for errors or the consequences of such errors. We reserve the right to technical modifications.

  • Page 3: Scope Of Delivery

    Preface Great, that you have expanded your TerraTec AudioSystem with the capacity to process Word- Clock and SuperClock Signals. The EWS ClockWork not only allows you to externally synchro- nise an EWS with EWS ® -Connect connection, it can also function as the central clock for your entire digital studio.

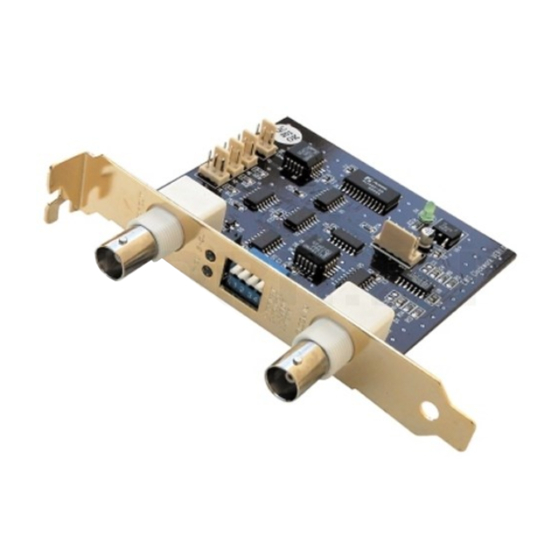

  • Page 4 The Design of the EWS ClockWork WordClock / SuperClock IN WordClock / SuperClock OUT LED, Input Status - WordClock LED, Input Status - SuperClock DIP switches Jumper 3 (J3), connection for EWS88 Master Sync IN Jumper 4 (J4), connection for EWS88 Slave 1 Sync IN Jumper 5 (J5), connection for EWS88 Slave 2 Sync IN Jumper 6 (J6), connection for EWS88 Slave 3 Sync IN Jumper 7 (J7), connection for EWS88 Master Sync OUT...
  • Page 5 WordClock or SuperClock? The serial transfer of digital audio data was already standardised by the AES (Audio Engineer- ing Society) in the mid-eighties and dictates as such a 64 bit basic word width per stereo sam- ple. Irrespective of the original word width (e.g. 16 bit) 32 bit is to be transferred for each mono sample.
  • Page 6 Versatile range of applications If you wish to synchronise your digital studio by means of a central clock, you must first desig- ® nate one device as master. This may be any EWS card in the PC fitted with an EWS -Connect connection, but also an external digital device such as e.g.
  • Page 7 Dip switch settings Source S/PDIF Format Term. Switch WordClock External W.-/S .-Clock Termination Off SuperClock S/PDIF Internal Te rmination On EWS88 ControlPanel Setting Master: WordClock-/Super Clock- IN EWS ClockWork is included in the external chain don't care don't care SuperClock Master: WordClock-/SuperClock- IN E WS ClockWork is last Devic e in the external chain don't care...
  • Page 8 1. Master: EWS Master Card The concept "EWS Master Card" does not prescribe the card as the Clock-Master of the entire internal and external Systems. Only when the Master-Clock is to be generated via an EWS- ® System, will the EWS-Master card also be the Clock-Master. All other EWS cards with EWS Connect connection are basically operated in slave mode.
  • Page 9 Master: EWS Master Card C N1 S y nc-IN L in k* t o Sla v e 2 S y nc In EWS88 D to S lave 3 Sync I n (Slave 1) MASTER J4 -J 6 to Sl ave 1-3 Sync-I N Clock Source J7 to Master S y nc-OUT C N 2 Sy nc -OUT L ink...
  • Page 10 2. Master: WordClock (SuperClock) IN If the Clock IN bus receives a good signal, both blue LEDs in the slot plate will indicate this (each for WordClock or SuperClock). If the EWS ClockWork Modul is last in a Word or Super- Clock chain the termination will have to be activated by means of DIP switch 4.
  • Page 11 CN 1 Sync -IN Link* to S lave 2 Sync In E WS88 D (Slave 1) to Sl ave 3 Sync In J4-J6 - > t o Sl av e 1- 3 S ync-I N J7 -> t o Master Sync-OUT CN2 Sync-OUT Link J3 ->...
  • Page 12 3. Master: External S/PDIF (ADAT™) IN The S/PDIF-IN of the EWS-Master card may function as central Clock source. If the EWS-Master Card is an AudioSystem EWS88 D then this also holds for the ADAT™ signal. In the event that multiple EWS-Systems are connected via the "EWS ®...
  • Page 13 Master: External S/PDIF (ADAT™) IN C N1 S y nc-IN L in k* t o Sla v e 2 S y nc In EWS88 D to S lave 3 Sync I n (Slave 1) J4 -J 6 to Sl ave 1-3 Sync-I N J7 to Master S y nc-OUT C N 2 Sy nc -OUT L ink J3 to Master Syn c I n...

  • Page 14: Technical Data

    Technical data Clock Modul for EWS cards with EWS ® -Connect connection Clock Receiver for up to 4 parallel connect EWS Audio systems Clock Transmitter for the Clock Signal of the EWS Audio systems Switchable between Standard Wordclock ad Super-Clock ( 256 FS ) 1 BNC IN and 1 BNC OUT Switchable termination Jitter below 3 ns by use of high-precision microchips...
