Summary of Contents for TerraTec Integra128-T
-
Page 1: Quick Reference

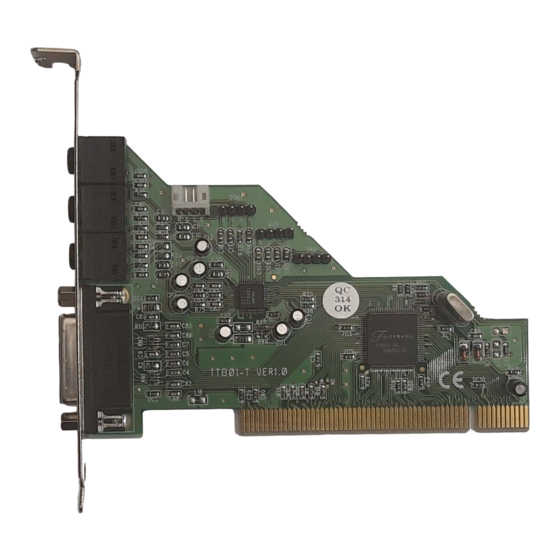

Integra128-T featured by TerraTec Quick reference... - Page 2 CE declaration Hereby is declared that the product: Integra128-T to which this declaration refers is in compliance with the following standards or standardizing documents: 1. EN 55022 2. EN 50082-1 The following are the stipulated operating conditions and environmental conditions for said compliance: Residential, business and commercial environments and small-company environments.
- Page 3 Internal CD audio connector IDE (White: right - ground - left - ground) i Internal CD audio connector (SONY) (right - ground - ground - left) j Internal Aux In (right - ground - ground - left) k Internal TAD connector (mono out - ground - ground - mono in) Integra128-T...
-
Page 4: Technical Data
• 8/16-bit audio stereo/mono for recording and playback with up to 48 kHz • Enhanced Full Duplex Wavetable synthesizer* • 128 voice XG wavetable • High quality Yamaha sample set • GM, GS and XG compatiblel Not available on Cyrix 686 machines Integra128-T... - Page 5 • CD-ROM drive for the "Software & Driver CD" • 15 MB free hard disk space • Active speakers or headphones • Windows 95, Windows 98 with DirectX 5.0 or higher or Windows NT 4.0 with Service Pack 3 or higher Integra128-T...
-
Page 6: Driver And Software Installation
Insert the CD-ROM in your CD-ROM drive. Change to the folder <CD>:\YAMAHAXG\WINNT40 start the setup.exe program. Follow the instructions of the installation program. AudioRack software EzAudio. Insert the CD-ROM in your CD-ROM drive. Change to the folder <CD>:\EZAUDIO and start the setup.exe program. Follow the instructions of the installation program. Integra128-T... -
Page 7: Hardware Installation
Take care to ensure that the contacts are precisely in line, in order to avoid damaging the sound card or the motherboard in your PC. • Insert and tighten the screw from the slot cover to secure the sound card in its slot. Integra128-T... - Page 8 • Reinstall the cover of your PC case. • Connect your speakers or hifi stereo system to the sound card. • Reconnect the mains and all other cables. Make sure that your speakers or hifi system is set to low volume. Start your computer. Integra128-T...
