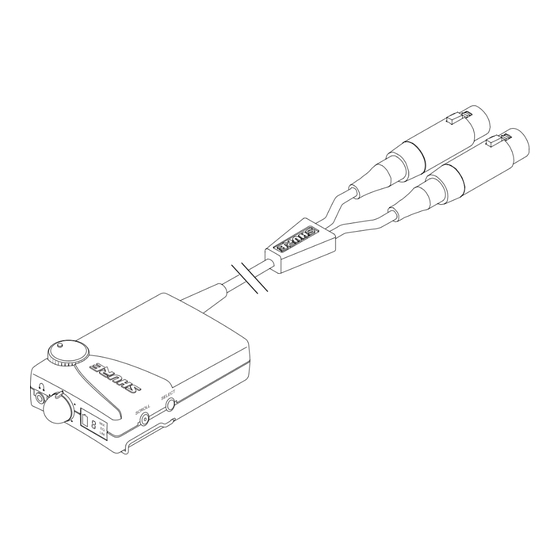

- Page 1 Model P4HW User Guide P4HW Hardwired Personal Monitor 2005, Shure Incorporated Printed in U.S.A. © 27D8713 (Rev. 5) Patent Des. 442,938...
- Page 2 WARNING! USING THIS SYSTEM AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE. In order to use this system safely, avoid prolonged listening at excessive sound pressure lev- els. Please use the following guidelines established by the Occupational Safety Health Ad- ministration (OSHA) on maximum time exposure to sound pressure levels before hearing damage occurs.
-
Page 3: Controls And Features
ENGLISH Thank you for choosing the P4HW Hardwired Personal Monitor bodypack. The P4HW is a com- Ò ponent of the PSM 400 family of personal monitors that provides the advantages of an in-ear monitoring system, including the following: • Improved Sound Quality - high fidelity without the risk of feedback •... -
Page 4: Operation
Operation BATTERY INSTALLATION 1. Open the battery door by pushing down and sliding towards cable. 2. Insert a fresh 9 V alkaline battery with the +/– terminals properly positioned (see Figure 1). 3. Close the battery door. NOTE: If battery compartment door will not close, the battery is not properly inserted. FIGURE 1 CONNECTING TO MIXER AND CHECKING SIGNAL 1. - Page 5 READING THE LCD SCREEN The LCD screen displays the status of each function, as follows: 1. Input Level Meter: 3-segment input level meter displays level of incoming signal. Always check for clipping prior to inserting earphones into ears. Signal present Nominal –6 dB from clip 2.
- Page 6 USING THE BODYPACK FEATURES 1. Push either the SCROLL or SELECT button to activate the LCD screen. 2. Push and hold the SCROLL button until the desired function (0/–15, MIX, EQ, or LIM) is underscored. 3. Push the SELECT button to toggle the function ON or OFF. A function is ON when a dot appears to the right of the function symbol.
- Page 7 MONO, STEREO AND MIXMODE CONTROL The bodypack provides simple configuration of a monitor mix and enables the user to customize an individual mix in a multiple mix environment. Three monitoring modes are available - mono, stereo, and MixMode. Mono: The bodypack receives one signal from the mixer and sends that signal to both earphones. For mono signals, use MixMode (MIX ON).
-
Page 8: Specifications
Conforms to European EMC directive 89/336/EEC: Professional Audio Products Standard EN 55103 (1996); Part 1 (emissions) and Part 2 (immunity). The P4HW is intended for use in envi- ronments E1 (residential) and E2 (light industrial) as defined in European EMC standard EN 55103. -
Page 9: Fcc Declaration Of Conformity
Niles, IL 60714-4608 U.S.A. (847) 600-2000 Declare under our sole responsibility that the following product, Model: P4HW Description: Hard Wired Personal Monitor Has been tested and found to comply with the limits of a Class B digital device, and approved under the Declaration of Conformity provision of the Part 15 of the FCC rules. - Page 10 SHURE Incorporated Web Address: http://www.shure.com 5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A. Phone: 800-257-4873 Fax: 847-600-1212 In Europe, Phone: 49-7131-72140 Fax: 49-7131-721414 In Asia, Phone: 852-2893-4290 Fax: 852-2893-4055 International, Phone: 847-600-2000 Fax: 847-600-6446...
