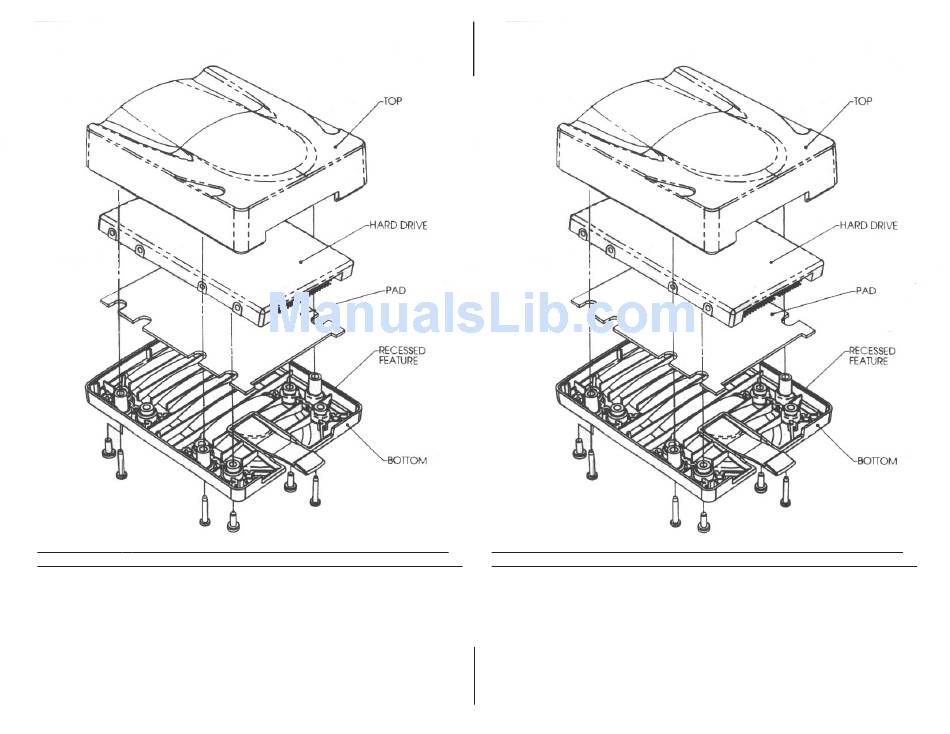

EZ Gig CASE ASSEMBLY INSTRUCTIONS
:
WARNING
TIGHTEN SCREWS ONLY UNTIL SNUG.
OVERTIGHTENING WILL CAUSE DAMAGE TO PARTS.
1. PLACE PAD INTO CASE BOTTOM, ORIENTED AS SHOWN.
2. PLACE ** BARE HARD DRIVE, WITH GREEN CIRCUIT BOARD DOWN, ON TOP OF
THE PAD. USE 4 SHORT SCREWS TO SECURE HARD DRIVE TO CASE BOTTOM.*
3. PLACE CASE TOP AND BOTTOM TOGETHER. MAKE SURE THAT CASE TOP IS
COMPLETELY CAPTURED BY RECESSED FEATURE AROUND INSIDE OF BO1TOM
4.USE 4 LONG SCREWS TO SECURE CASE TOP AND BOTTOM TOGETHER.
* NOTE : ONLY 4 OF THE HARD DRIVE MOUNTING HOLES IN THE CASE BOTTOM ARE
USED
** NOTE : IF THE HARD DRIVE IS IN A CADDY OR TRAY, YOU MUST REMOVE IT
BEFORE INSTALLING IN ENCLOSURE.
EZ Gig CASE ASSEMBLY INSTRUCTIONS
:
WARNING
TIGHTEN SCREWS ONLY UNTIL SNUG.
OVERTIGHTENING WILL CAUSE DAMAGE TO PARTS.
1. PLACE PAD INTO CASE BOTTOM, ORIENTED AS SHOWN.
2. PLACE ** BARE HARD DRIVE, WITH GREEN CIRCUIT BOARD DOWN, ON TOP OF
THE PAD. USE 4 SHORT SCREWS TO SECURE HARD DRIVE TO CASE BOTTOM.*
3. PLACE CASE TOP AND BOTTOM TOGETHER. MAKE SURE THAT CASE TOP IS
COMPLETELY CAPTURED BY RECESSED FEATURE AROUND INSIDE OF BO1TOM
4.USE 4 LONG SCREWS TO SECURE CASE TOP AND BOTTOM TOGETHER.
* NOTE : ONLY 4 OF THE HARD DRIVE MOUNTING HOLES IN THE CASE BOTTOM ARE
USED
** NOTE : IF THE HARD DRIVE IS IN A CADDY OR TRAY, YOU MUST REMOVE IT
BEFORE INSTALLING IN ENCLOSURE.
