Summary of Contents for Amana ASD2522VRB00

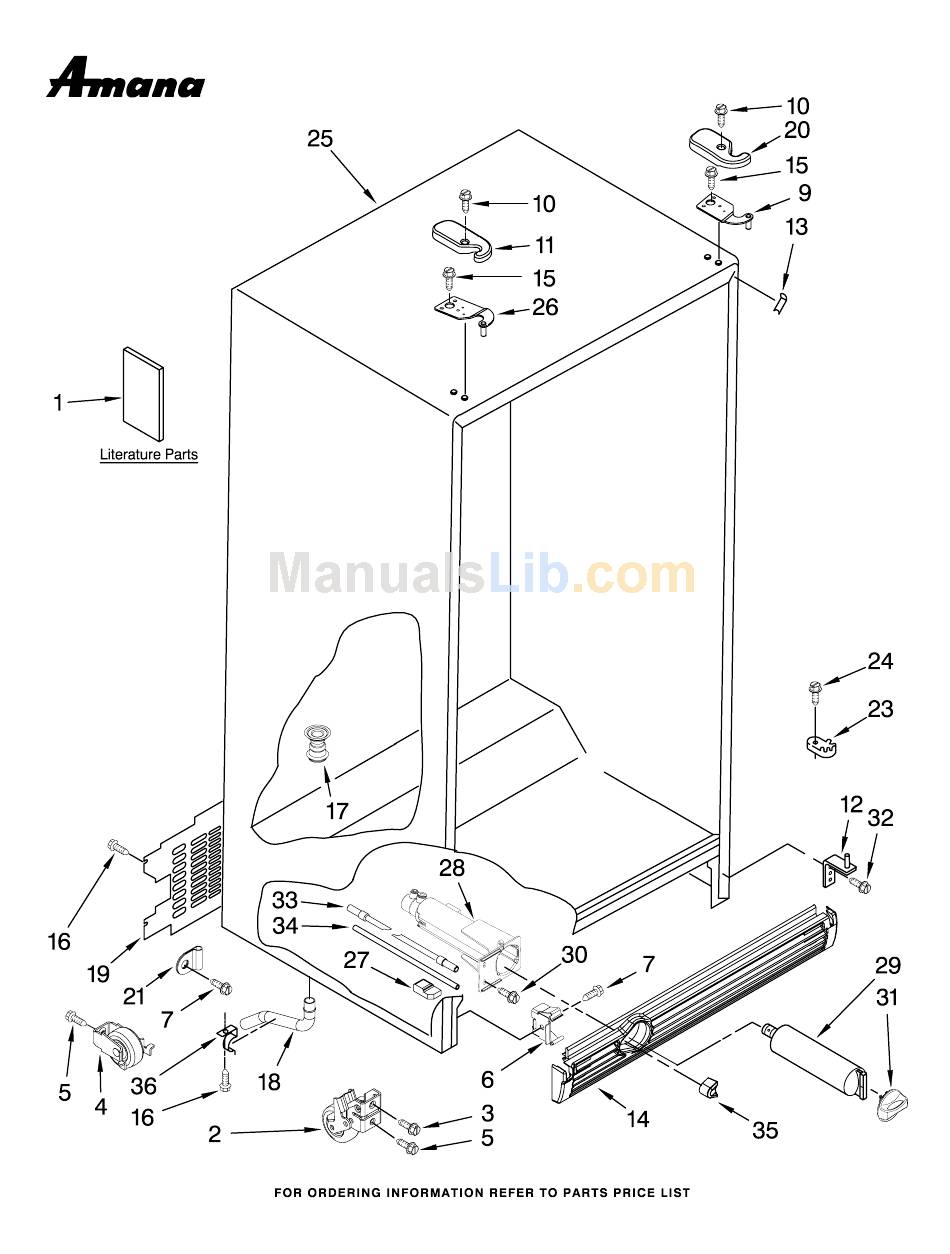

- Page 1 CABINET PARTS REFRIGERATOR For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) (Stainless) (Universal Silver) 12−07 Litho In U.S.A. (jdc) Part No. W10182979 Rev. A...
-
Page 2: Cabinet Parts
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 Illus. Part DESCRIPTION Literature Parts W10162442 Use & Care Guide W10142157 Service & Wiring Sheet W10169610 Energy Guide 628370 Modular Icemaker Service Sheet 2216001 Instruction Sheet− Door Removal 2174748 Front Roller (2) 3400517 Screw... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 W10182979 (White) (Black) (Stainless) (Universal Silver) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide, Meat Pan Control 2257741 Louver 2311637 Wire Harness, Dual Crisper... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) (Stainless) (Universal Silver) Illus. Part 1 W10141749 Shelf, 2209698 Cover, Crisper 2179259 Glass, Cover 2179350 Deflector 2311726 Cover, Meat Pan 2188661 Crisper Pan 2188665 Meat Pan 2196485 Stud Assembly... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) (Stainless) (Universal Silver) W10182979... - Page 6 FREEZER LINER PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) Illus. Part 2171713K Door, Ice 842534 Clip, Air Duct (2) 2196206 Support, Stud (4) 3400893 Screw 2176134 Grommet 2182971 Freezer Bin 2261449 Right Side 2261448 Left Side 9 W10004810 Screw...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) (Stainless) (Universal Silver) W10182979... - Page 8 MOTOR AND ICE CONTAINER PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) Illus. Part 2254587 Bracket, Motor 2188385 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Soleniod 1115374 Clip, Wiring 2206501 Wiring Assembly, 489399 Screw 9 W10169511 Coupling, Motor 489478 Screw...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) (Stainless) (Universal Silver) W10182979... - Page 10 REFRIGERATOR DOOR PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) Illus. Part W10169867 White W10169868 Black W10171245 Stainless W10173663 Universal Silver 2256101 Door, Compartment 2187172K Door Bin (3) 2326016 Screw, Handle 2221302 Mist Beige 2221313 Black W10119663 White W10119665 Black...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) (Stainless) (Universal Silver) W10182979... - Page 12 FREEZER DOOR PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) Illus. Part W10169599 White W10169600 Black W10171251 Stainless W10173666 Universal Silver W10119666 White W10119668 Black 2326016 Screw, Handle 2313199K Trim, Door (4) 3400012 Screw 2221303 Mist Beige 2221314 Black...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) (Stainless) (Universal Silver) W10182979... - Page 14 DISPENSER FRONT PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) Illus. Part 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism 2205686 Mechanism Delay 2206670W White 2206670B Black 2304317 Water Fitting 2195089W White...
-
Page 15: Unit Parts
UNIT PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) (Stainless) (Universal Silver) W10182979... - Page 16 For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 Illus. Part DESCRIPTION 2169104 Insulation, Sound 2225834 Fan, Blade 3 W10121487 Condenser Assembly (Also Order #7) 489464 Screw 2208280 Clip, Wire 8533993 Screw 7 W10132427 Bushing, Compressor 2161302 Sleeve 2255130 Capacitor 2216914 Clip, Condenser 2212996 Strap, Bale 2313162 Start−Device,...
-
Page 17: Air Flow Parts
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 2321799 Bi−Metal, Defrost 2203593 Air Duct Freezer 2304241 Gasket 7 W10131845 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2182146 Duct, Icemaker... -
Page 18: Control Parts
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 Illus. Part DESCRIPTION 2200137 Control Box 1110629 Mounting Bracket 3196537 Screw (4) 2149705 Light Switch 2188375 Defrost Timer 489398 Screw (2) 940014 Hole Plug 2198202 Thermostat Assembly 487869 Screw CONTROL PARTS (White) (Black) (Stainless) (Universal Silver) Illus. -
Page 19: Icemaker Parts
ICEMAKER PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) (Stainless) (Universal Silver) W10182979... - Page 20 ICEMAKER PARTS For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 (White) (Black) Illus. Part 489084 Screw 2209774 Chute, Water 628379 Clip, Fuse 2223137 Tube, Water 489478 Screw 2315534 Filter Valve Asm 2208136 Tube Clip 2174155 Cover 488649 Screw 10 W10122527 Mold & Heater...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Customer Touch−Up Material 350942 Primer, White (12 Oz. Spray Can) 350939 Enamel, Black (12 Oz. Spray Can) 350930 Enamel, White (12 Oz.
