)LJXUH#4
AXB-EM232
2
Introduction
· # Re-dial functions
· # Single button speed dialing
· # Manual dialing
· # Auto-answer capabilities
· # Flexible picture-in-picture (PIP) modes
· # Incoming audio volume adjustment level
· # Audio and video muting
· # Multiple audio and video source selection
· # Graphics send and receive capabilities
· # Call in progress/call quality status reporting
· # Far-end camera control
· # Far-end source selection
$;%0(0565#(QKDQFHG#0DVWHU#560565#&RQWUROOHU

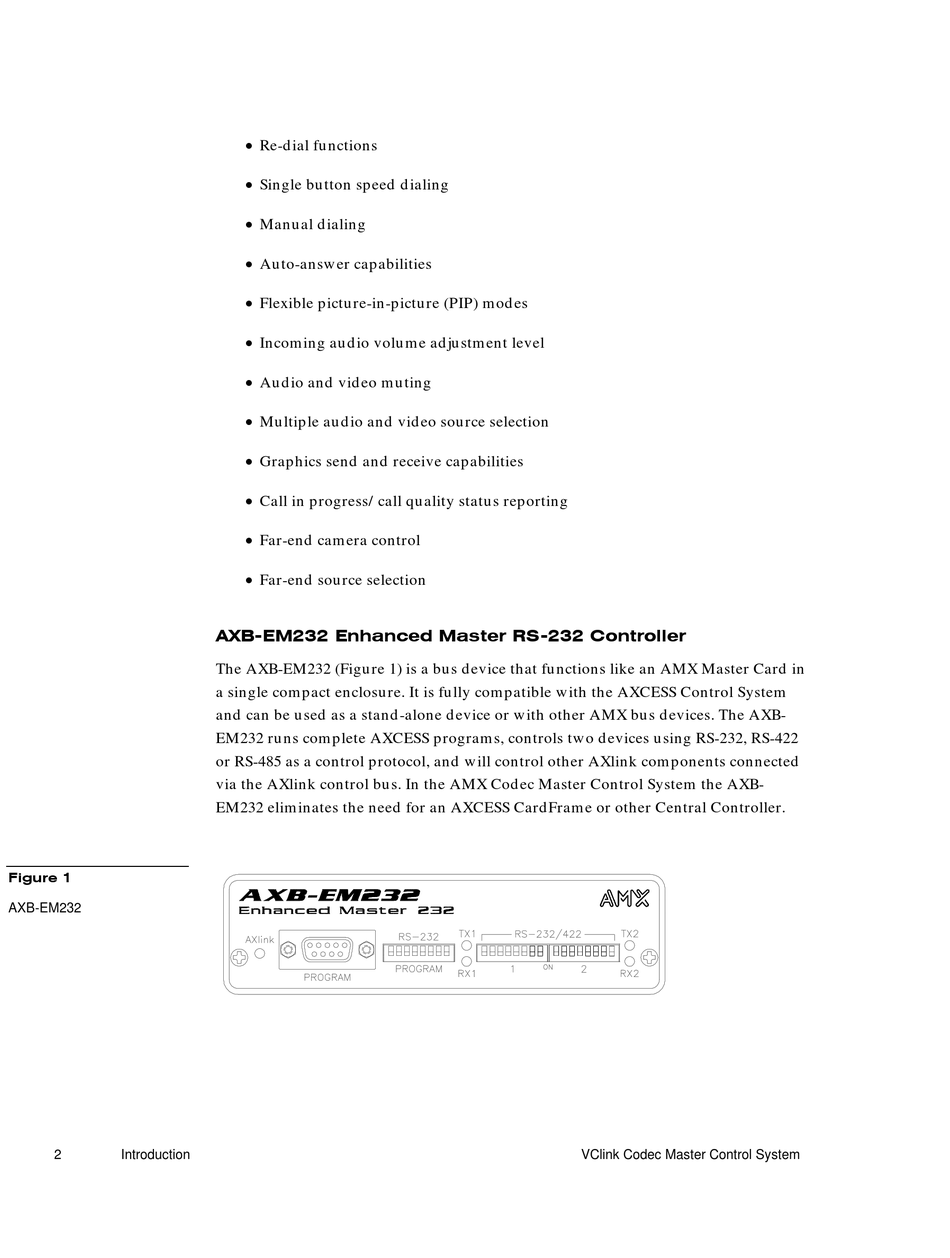

The AXB-EM232 (Figure 1) is a bus device that functions like an AMX Master Card in
a single compact enclosure. It is fully compatible with the AXCESS Control System
and can be used as a stand-alone device or with other AMX bus devices. The AXB-
EM232 runs complete AXCESS programs, controls two devices using RS-232, RS-422
or RS-485 as a control protocol, and will control other AXlink components connected
via the AXlink control bus. In the AMX Codec Master Control System the AXB-
EM232 eliminates the need for an AXCESS CardFrame or other Central Controller.
VClink Codec Master Control System
