Appendix B
Using TLS2000®/HandiMark Labels

BMP71 Label Roll Adapter

BMP71 User's Manual
In order to use TLS2000 or HandiMark labels in the BMP71 printer, you must attach the
BMP71 Label Roll Adapter.

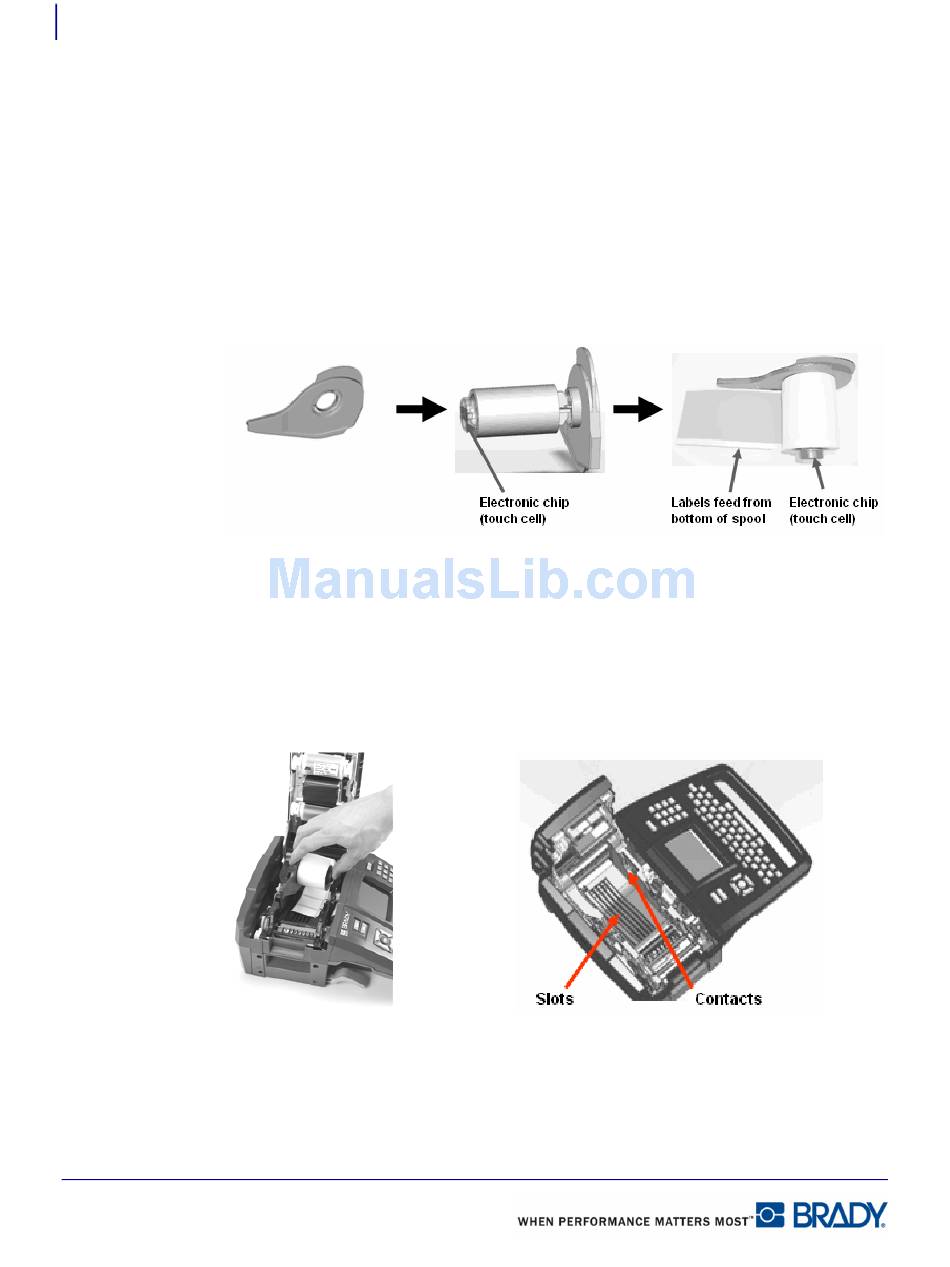

With the pointed end of
1.
the guide facing in the
direction that the labels
come off the bottom of
the spool...
Place the TLS2000 or
4.
HandiMark label roll,
with adapter attached,
into the printer the same
way you load BMP71
label material. (See
page 13 for more
information.)
...position the hole of
2.
the adapter over the end
of the spool, opposite
the electronic chip
(touch cell).
Note: To accommodate different size label rolls, make sure
that the label roll adapter is positioned in the correct slot in
order to push the electronic chip up against the contacts.
Gently push the adapter
3.
onto the spool to snap it
into place.
