P A R T N A M E S

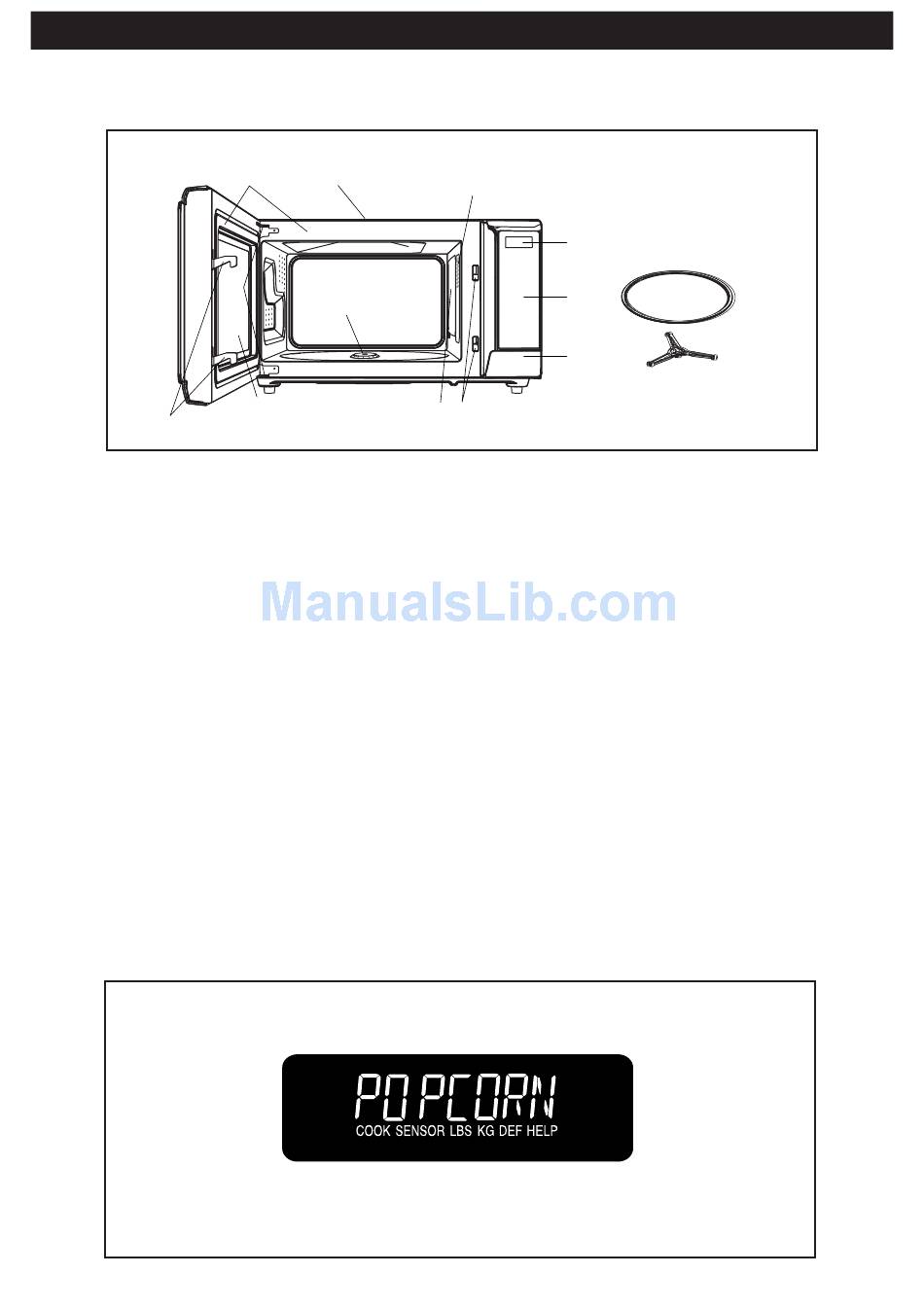

MICROWAVE OVEN PARTS
3
1 Door opening button
Push to open door.
2 Oven door with see-through window
3 Safety door latches
The oven will not operate unless the
door is securely closed.
4 Door hinges
5 Door seals and sealing surfaces
6 Turntable motor shaft
7 Removable turntable support
Carefully place the turntable support in
the center of the oven floor.
INTERACTIVE DISPLAY
The Interactive Display spells out operating steps and shows cooking hints. When HELP is
lighted in the display, touch the CUSTOM HELP pad to read a specific hint which may assist
you.
5 9
4
6
2
Words in the display will light to indicate what
function is in progress.
10
13
12
1
11 3
8 Removable turntable
Place the turntable on the turntable
support securely. The turntable will
rotate clockwise or counterclockwise.
Only remove for cleaning.
9 Ventilation openings (Rear)
10 Oven light
It will light when oven is operating or
door is open.
11 Waveguide cover: DO NOT REMOVE.
12 Auto-Touch control panel
13 Time display: 99 minutes, 99 seconds
